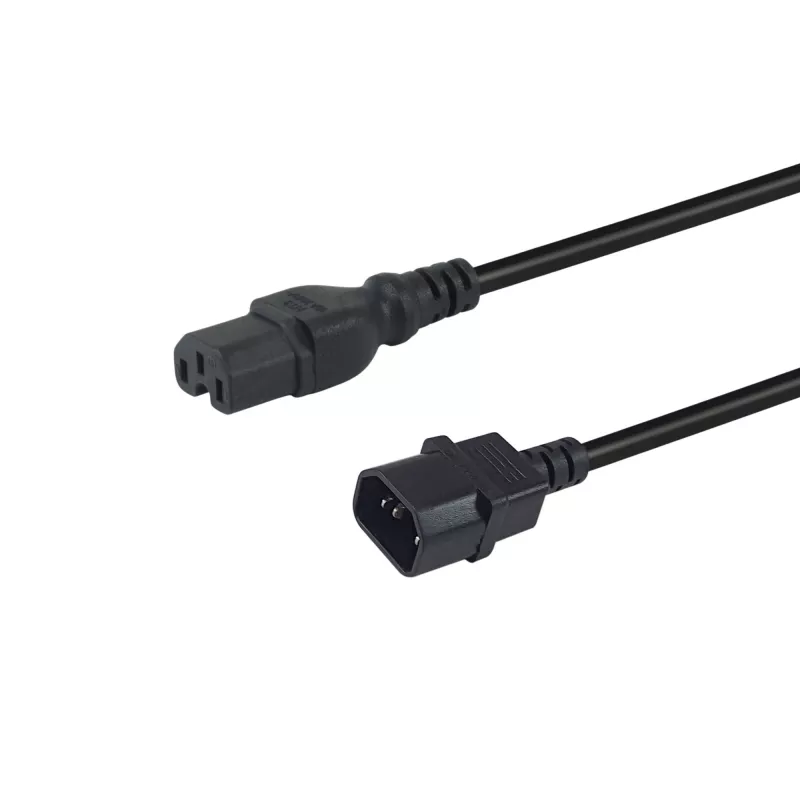

Cabo de alimentação Equip 112171 preto, 3 m, conector fêmea C14, conector fêmea C15

This high-quality power cable EQUIP 112171 is a 3 m mains lead constructed with H05VV-F3G (3 x 1.0 mm²) conductors and fitted with an IEC C14 plug on one end and an IEC C15 connector on the other. Rated for 250 V and 10 A (2,500 W), the cable is designed for stable power delivery to IT and industrial equipment that may operate in elevated temperature conditions, such as servers, network switches and UPS units.

Advantages

The cable uses heavy-duty copper conductors for good conductivity and reduced energy loss. Precision-molded C14 and C15 connectors provide a secure fit to reduce accidental disconnections. Constructed from durable materials and compliant with RoHS and REACH, the lead also carries VDE/ENEC approval for safety and reliability in professional and industrial settings.

Suitable for

• Server racks and data centre equipment
• Network switches and routers
• UPS units and power distribution devices
• Industrial IT equipment operating at higher temperatures
• Situations requiring a short, flexible C14–C15 mains lead

Key specifications

• Model: EQUIP 112171
• Cable type: H05VV-F3G, 3 x 1.0 mm²
• Connectors: IEC C14 (male) to IEC C15 (female)
• Length: 3.0 m
• Rated voltage/current: 250 V, 10 A (2,500 W)
• Colour: Black
• Certifications: RoHS, REACH, VDE/ENEC
• Quantity: 1 pc

How to use

Ensure both the appliance and the power source are switched off before connecting. Insert the IEC C14 plug into the power inlet of the power source (e.g., PSU, PDU or wall-mounted mains outlet) and connect the IEC C15 connector to compatible equipment. Make sure connectors are fully seated and avoid sharp bends or kinks in the cable. Do not exceed the rated 250 V / 10 A load.

Recommendations

Use the cable indoors in dry environments and avoid exposure to direct sunlight, chemicals or mechanical damage. Inspect the lead regularly for signs of wear and replace if the insulation or connectors are damaged. For applications requiring different ratings or longer runs, select an appropriate cable that meets those specifications.
