InLine 94425S cabo de instalação solar H1Z2Z2-K, 4 mm2, 25 m, preto

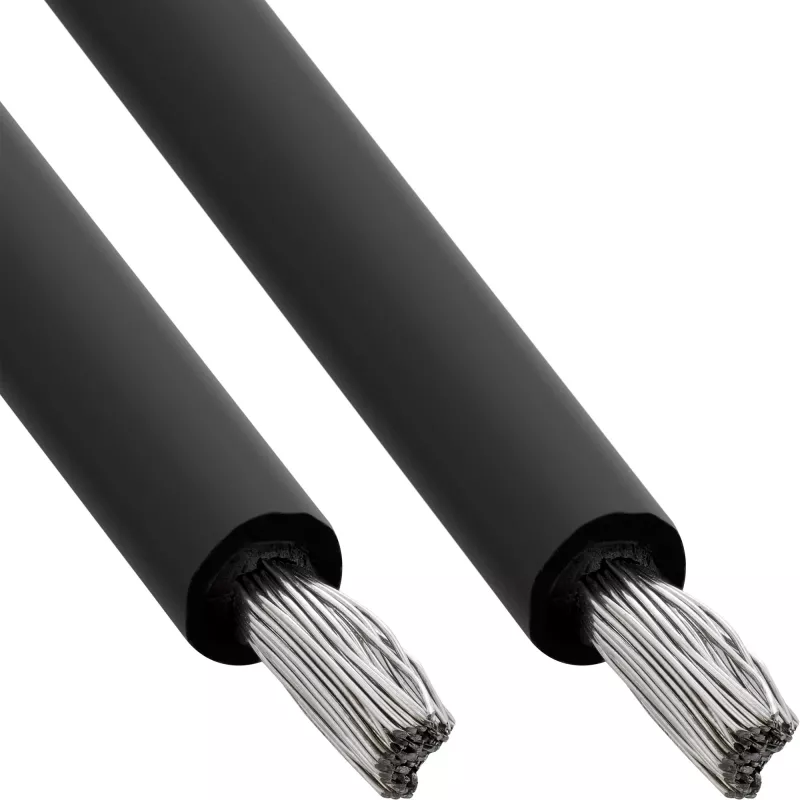

The InLine 94425S is a solar installation cable of type H1Z2Z2-K with a 4 mm² conductor cross-section and a length of 25 m, supplied in black. It is designed for the cabling of photovoltaic systems, offering a nominal voltage of 1.0/1.0 kV AC and a working voltage of 1.5 kV DC according to EN 50618.

Key features

• Conductor cross-section: 4 mm², fine-wired
• Conductor material: copper, tinned
• Nominal voltage: 1.0/1.0 kV AC; working voltage: 1.5 kV DC (EN 50618)
• Ozone, weather and UV resistance tested according to EN 60 811 / 50618
• Flame resistance according to EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
• Insulation: halogen-free, low-smoking, cross-linked polyolefin (XLPO)
• Unshielded

Specifications

• Brand: InLine
• MPN: 94425S
• Product colour: Black
• Type: Solar cables
• Length: 25 m
• Outer diameter: 5.5 mm
• Nominal wall thickness of insulation: 0.7 mm; coating: 0.8 mm
• DC line resistance: 5.09 Ohm/km
• Voltage test on cable: AC 6.5 kV, DC 15 kV
• Current carrying capacity: tested according to EN 50618
• Ambient temperature: -40°C to +90°C
• Min. bending radius: 22 mm
• Signal: Power
