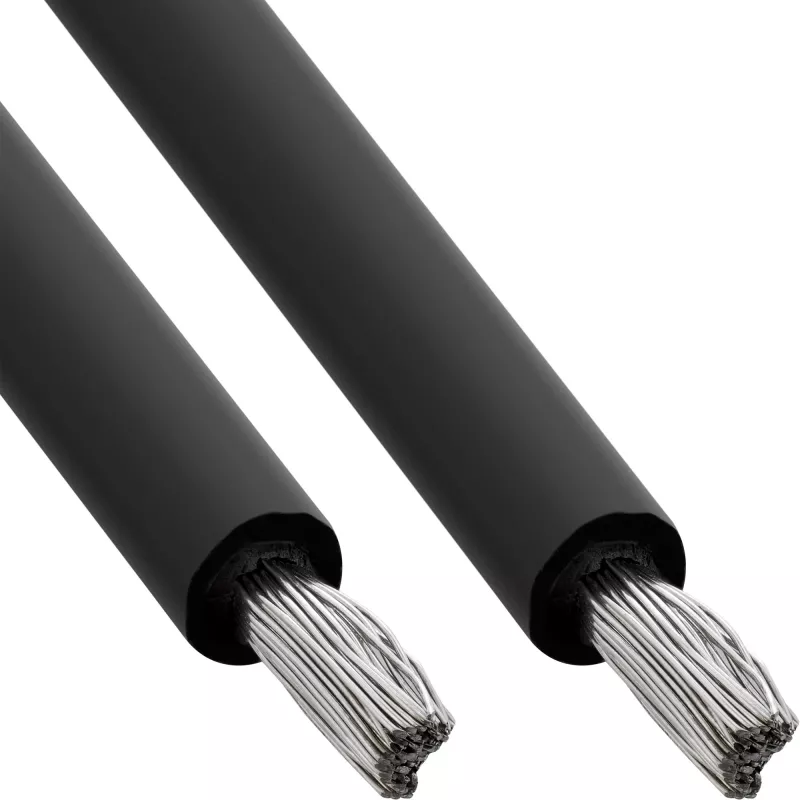

InLine 94600S cabo de instalação solar H1Z2Z2-K, 6 mm2, 100 m, preto

The InLine 94600S is a solar installation cable of type H1Z2Z2-K with a 6 mm² conductor cross-section, supplied in a 100 m length and black colour. It is designed for the cabling of photovoltaic systems.

Key features

• Conductor cross-section: 6 mm², fine wire
• Conductor material: copper, tinned
• Nominal voltage: 1.0/1.0 kV AC; operating voltage: 1.5 kV DC according to EN 50618
• DC line resistance: 3.39 Ohm/km
• Voltage test on the cable: AC 6.5 kV, DC 15 kV
• Ozone, weather and UV resistance tested according to EN 60 811 / 50618
• Flame resistance: complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
• Insulation: halogen-free, low-smoking, cross-linked polyolefin (XLPO)
• Unshielded

Specifications

• Brand: InLine
• MPN: 94600S
• Product colour: Black
• Type: Solar cables
• Length: 100 m
• Outer diameter: 6.3 mm
• Nominal wall thickness of insulation: 0.7 mm
• Nominal wall thickness of coating: 0.8 mm
• Ambient temperature: -40°C to +90°C
• Operation temperature: -40 to +90°C
• Min. bending radius: 26 mm
• Bending radius (static): >26 mm
• Signal: Power
• Country of origin: Taiwan
