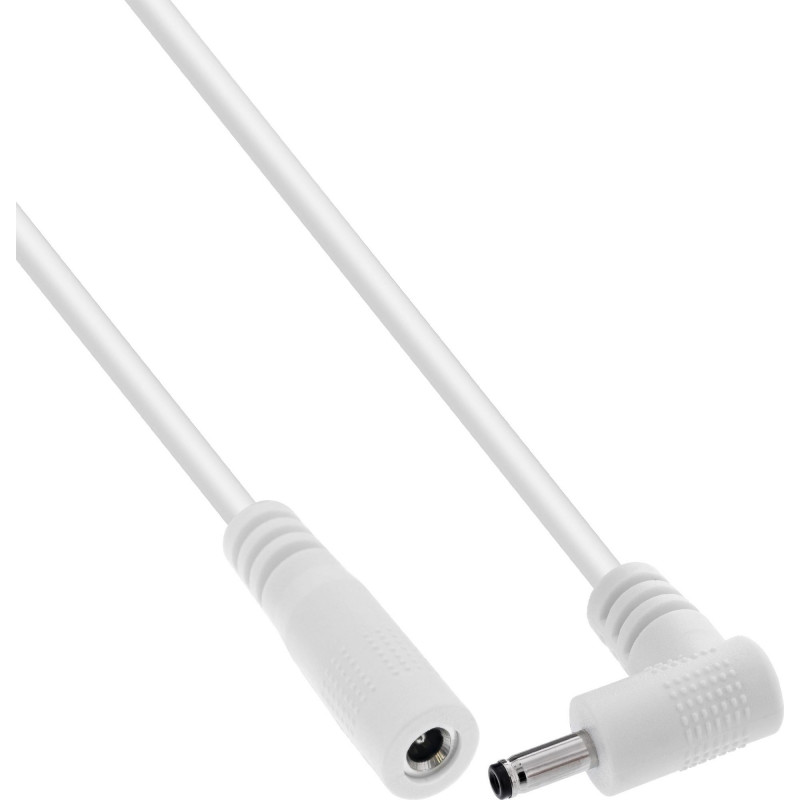

Cabo de extensão DC InLine®, ficha angular, 3,5 x 1,35 mm, branco, 0,5 m

The InLine® DC extension cable with right-angle plug extends existing DC power connections, allowing flexible positioning of compatible devices. Its angled DC plug and straight DC socket both measure 3.5 x 1.35 mm, so the existing connection type remains unchanged. The 2-core cable with PVC sheath and AWG 18 conductors is suitable for 12–24 V DC applications.

Key features

• Extends existing DC power connections for flexible device positioning
• Angled DC plug routes the cable away from the device connection at an angle
• Space-saving design for use where space is limited behind furniture, enclosures or covers
• Connector A: DC plug, angled; Connector B: DC socket, straight
• Connector dimensions: 3.5 x 1.35 mm
• 2-core cable with PVC sheath and AWG 18 conductors
• Suitable for 12–24 V DC applications
• Nickel-plated contact housing
• Unshielded

Specifications

• Brand: InLine
• MPN: 26955Q
• Product colour: White
• Product type: Power Cord
• Cable length: 0.5 m
• Jacket material: Polyvinyl chloride (PVC)
• AWG wire size: 18
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Connector dimensions: 3.5 x 1.35 mm
• Cable construction: 2-core
• Outer cable diameter: 5.0 ± 0.2 mm
• Contact housing: Nickel-plated
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Shielding: Unshielded
• Design: Angled
• Signal: Power
• EAN: 4043718349784
