Cabo de extensão DC InLine®, ficha angular, 5,5 x 2,5 mm, branco, 0,2 m

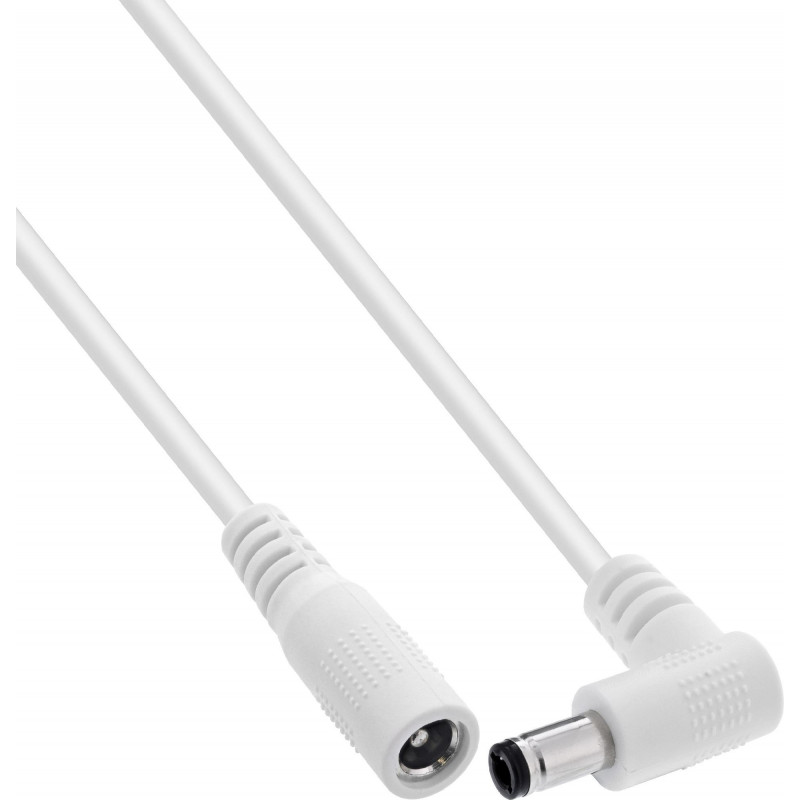

The InLine® DC extension cable is a white power cord with a length of 0.2 m, designed to extend DC connections. It features an angled DC plug and a straight DC socket, both with 5.5 x 2.5 mm dimensions, and a 2-core cable with PVC jacket and AWG 18 wire size.

Key features

• Angled DC plug and straight DC socket for space-saving connection
• 2-core cable with PVC sheath
• Nickel-plated contact housing
• Unshielded
• Without switch

Specifications

• Product colour: White
• Product type: Power Cord
• Cable length: 0.2 m
• Jacket material: Polyvinyl chloride (PVC)
• AWG wire size: 18
• Brand: InLine
• MPN: 26906K
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Connector dimensions: 5.5 x 2.5 mm
• Outer cable diameter: 5.0 ± 0.2 mm
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Contact housing: Nickel-plated
• Shielding: Unshielded
• UL: No
• Variant: Without switch
• Country of origin: China
• Net weight: 0.018 kg
• EAN Barcode: 4043718349951
• Customs tariff number: 8544429090
