Cabo de extensão DC InLine®, ficha angular, 5,5 x 2,5 mm, preto, 0,5 m

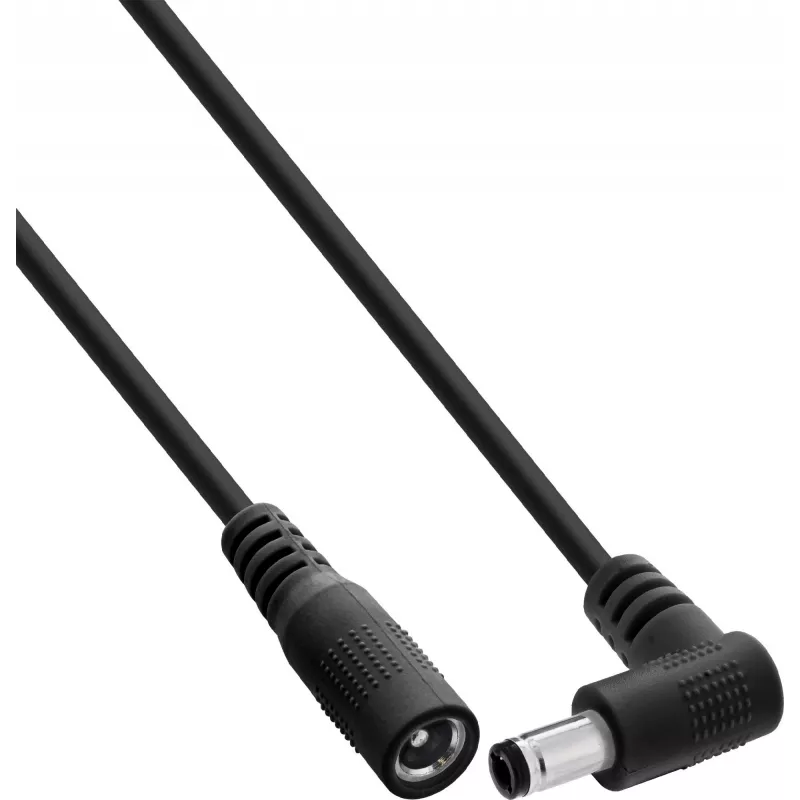

The InLine® DC extension cable is a 0.5 m power cord with an angled DC plug and a straight DC socket, both measuring 5.5 x 2.5 mm. It is designed to extend existing DC power connections in the 12–24 V range and allows flexible positioning of compatible devices.

Key features

• Angled DC plug and straight DC socket for space-saving connection
• 2-core cable with PVC sheath
• Nickel-plated contact housing
• Unshielded
• Without switch

Specifications

• Product colour: Black
• Product type: Power Cord
• Cable length: 0.5 m
• Jacket material: Polyvinyl chloride (PVC)
• AWG wire size: 18
• Brand: InLine
• MPN: 26955J
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Connector dimensions: 5.5 x 2.5 mm
• Conductor cross-section: AWG 18
• Cable construction: 2-core
• Cable sheath: PVC
• Outer cable diameter: 5.0 ± 0.2 mm
• Contact housing: Nickel-plated
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Shielding: Unshielded
• UL: No
• Variant: Without switch
• Design: Angled
• Signal: Power
• Side A: DC male angled
• Side B: DC female
• EAN Barcode: 4043718349722
• Customs tariff number: 8544429090
• Country of origin: China
• Net weight: 0.031 kg
• Weight: 0.034 kg
• Article width: 2.70 cm
• Article height: 1.00 cm
• Article length: 50.00 cm
• Packaging height: 0.023 m
• Packaging length: 0.240 m
• Packaging width: 0.098 m
• Packaging volume: 0.0002 m³
• Packing: Retail
• Manufacturer information: INTOS ELECTRONIC AG, Siemensstrasse 11, 35394 Gießen, Deutschland, [email protected]
