Cabo de extensão DC InLine, ficha/conector fêmea DC 5,5x2,5mm, AWG 18, branco 0,5m

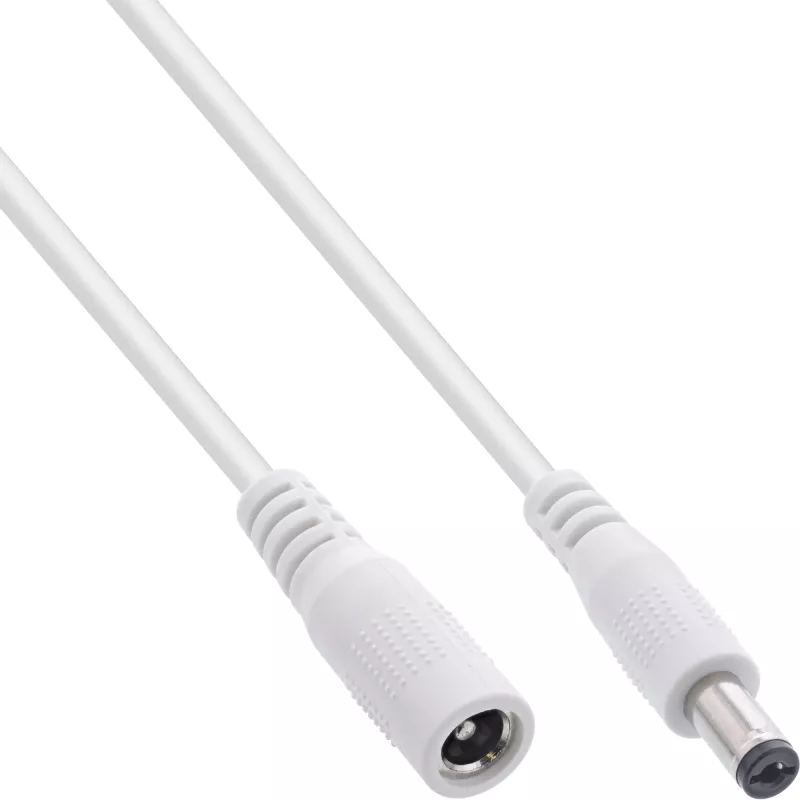

The InLine DC extension cable is a 0.5 m white cable with 5.5 x 2.5 mm DC male and female connectors. Constructed with AWG 18 wire, it is designed to extend DC power connections and supports up to 12 V input voltage and 11.6 A input current, making it suitable for a variety of low-voltage power applications.

Advantages

This InLine DC extension cable provides a reliable male-to-female 5.5 x 2.5 mm connection in a compact 0.5 m length. The AWG 18 conductor offers adequate current capacity for devices within the specified 11.6 A limit, and the white jacket ensures a discreet appearance in installations where color matching is important.

Suitable for

• Extending power leads for cameras, routers, and similar 12 V devices
• Connecting power adapters to equipment with 5.5 x 2.5 mm DC sockets
• Short-distance power extension in home or office AV setups

Key specifications

• Cable length: 0.5 m
• Connectors: 5.5 x 2.5 mm male to 5.5 x 2.5 mm female
• Wire gauge: AWG 18
• Rated input voltage: 12 V
• Rated input current: 11.6 A
• Colour: White

How to use

Plug the male 5.5 x 2.5 mm connector into the power adapter or source and insert the female connector into the device's DC input socket. Ensure correct polarity before powering the system. Use the cable for short-distance extensions; avoid overloading beyond the specified 11.6 A current rating.

Recommendations

For safe operation, verify that the connected device and power supply operate at or below 12 V and do not exceed 11.6 A. Avoid routing the cable near heat sources or sharp edges, and inspect connectors periodically for wear or loose contacts.
