Cabo de fibra ótica BlueOptics 7Z57A03569-BO 10 m MPO OM4

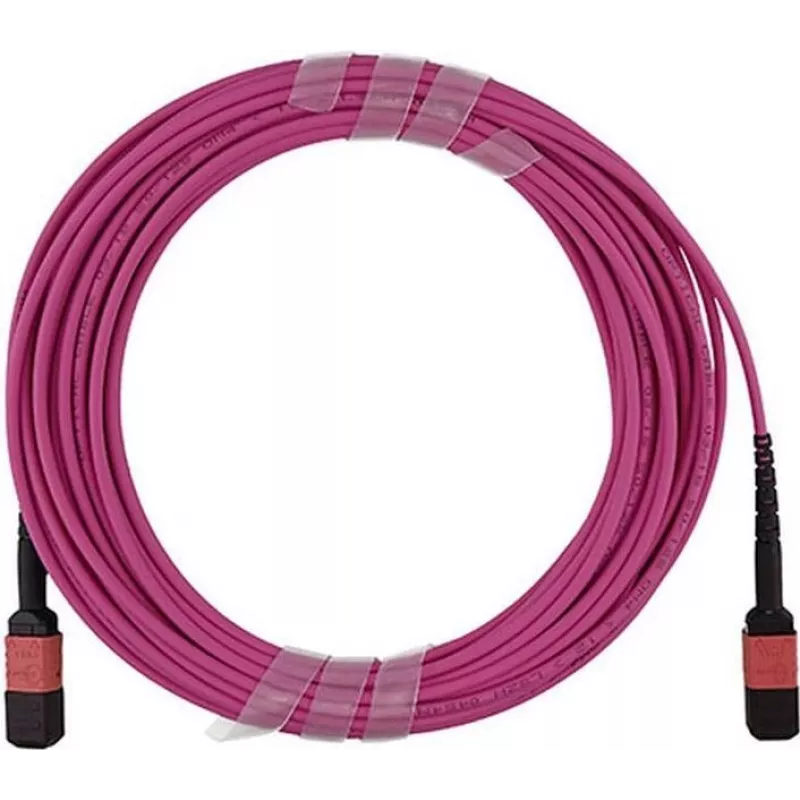

The BlueOptics 7Z57A03569-BO is a 10 m MPO-MPO fibre optic cable with OM4 multimode fibre designed for high-speed data links in data centres and enterprise networks. It features MPO connectors on both ends and an LSZH flame-retardant jacket for safer installations in confined or public spaces. The cable supports dense parallel connections and is intended for short- to medium-range high-bandwidth applications where MPO connectivity and OM4 performance are required.

Advantages

This BlueOptics MPO OM4 patch cable provides low attenuation and measured input- and return-loss values supplied with a test protocol. The cable uses laser-optimized OM4 multimode fibre for improved bandwidth and modal performance, and quality connector components with zirconia ceramic ferrules to ensure reliable mating cycles. The LSZH outer sheath reduces halogen emissions and smoke in the event of a fire, while production testing with interferometer and OTDR verifies optical performance to applicable industry requirements.

Suitable for

• Interconnect between MPO-enabled patch panels in data centres
• Parallel optical links for high-density switch and server connections
• Connecting MPO transceivers and chassis in enterprise networks
• Short- to medium-range multimode links requiring OM4 performance

Key specifications

• Length: 10 meters
• Fibre type: OM4 multimode, laser-optimized
• Connector type: MPO to MPO
• Jacket: LSZH (low smoke zero halogen), flame-retardant
• Tested for input loss and return loss; delivered with measurement protocol
• Manufactured and tested to industry optical performance standards (e.g., Telcordia GR-326-Core compliant processes)

How to use

Route the MPO-MPO OM4 cable between MPO-enabled patch panels, switches or transceivers, ensuring connectors are free of dust and contamination before mating. Use appropriate MPO adapter panels or cassettes for transition to duplex or LC connections if required. Avoid tight bends and protect the cable from sharp edges; maintain the manufacturer’s minimum bend radius to preserve optical performance. Follow standard fibre handling procedures and use a dust cap until final connection to prevent connector damage.

Recommendations

For reliable results, clean MPO connector endfaces with a suitable fibre cleaning tool prior to installation and perform a visual inspection. Keep cable runs organized in trays or ladders and avoid excessive pulling force; use proper strain relief at termination points. For critical links, verify insertion loss with test equipment after installation and compare with the supplied measurement protocol.
