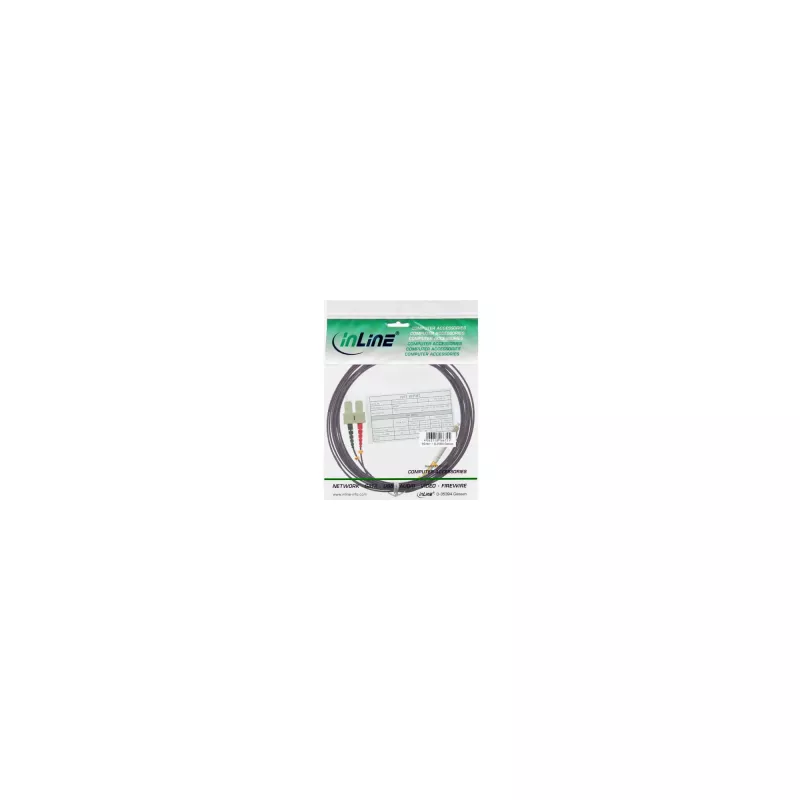

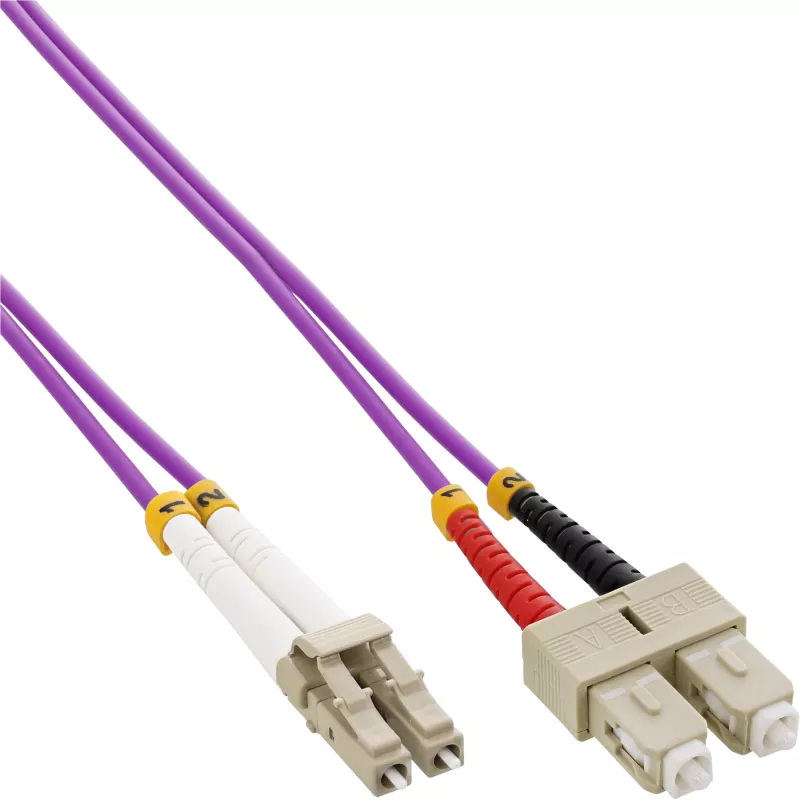

Cabo de fibra ótica duplex InLine 88655P 15m LC/SC 50/125µm OM4

The InLine Fiber Optical Duplex Cable 15m LC/SC 50/125µm OM4 is a multimode duplex patch cable designed for full-duplex fiber connections between network equipment. With a 50/125 µm core/cladding diameter and OM4 graded multimode fiber, the cable supports high-bandwidth short-range links and is suitable for data center and enterprise environments where reliable, low-loss optical interconnects are required.

Advantages

This duplex fiber cable combines LC and SC connector terminations to provide flexibility when connecting devices with different port types. The 50/125µm OM4 fiber offers improved modal bandwidth for higher data rates over multimode links compared with lower OM grades, while the 15 m length covers typical rack-to-rack or room-to-room runs without the need for splices. Its duplex construction supports simultaneous transmit and receive channels for full-duplex communication and helps maintain low insertion loss and consistent signal quality.

Suitable for

• Patching between switches, transceivers and patch panels
• Connections in data center cabinets and telecom rooms
• High-speed multimode links for enterprise LAN and SAN environments
• Short- to medium-reach optical connections requiring OM4 performance

Key specifications

• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector A: LC (duplex)
• Connector B: SC (duplex)
• Length: 15 m
• Mode: Duplex (two-fiber transmit/receive)
• Typical use: Patch cable for multimode optical networks

How to use

Route the duplex fiber cable between the source and destination ports, ensuring connectors are mated correctly: LC to LC or LC to SC according to the devices in use. Avoid bending the cable below the specified minimum bend radius, and keep the connectors capped until ready to connect to prevent contamination. Insert the connectors firmly until a positive latch or click is felt and verify link status on the connected equipment. For best optical performance, inspect connector endfaces before connecting and clean with appropriate fiber cleaning tools if necessary.

Recommendations

Use this OM4 duplex cable for short- to medium-distance multimode links where higher modal bandwidth is required. Store the cable coiled loosely and avoid kinking. When used with transceivers or patch panels, match connector types and observe proper fiber polarity to ensure correct transmit/receive pairing.
