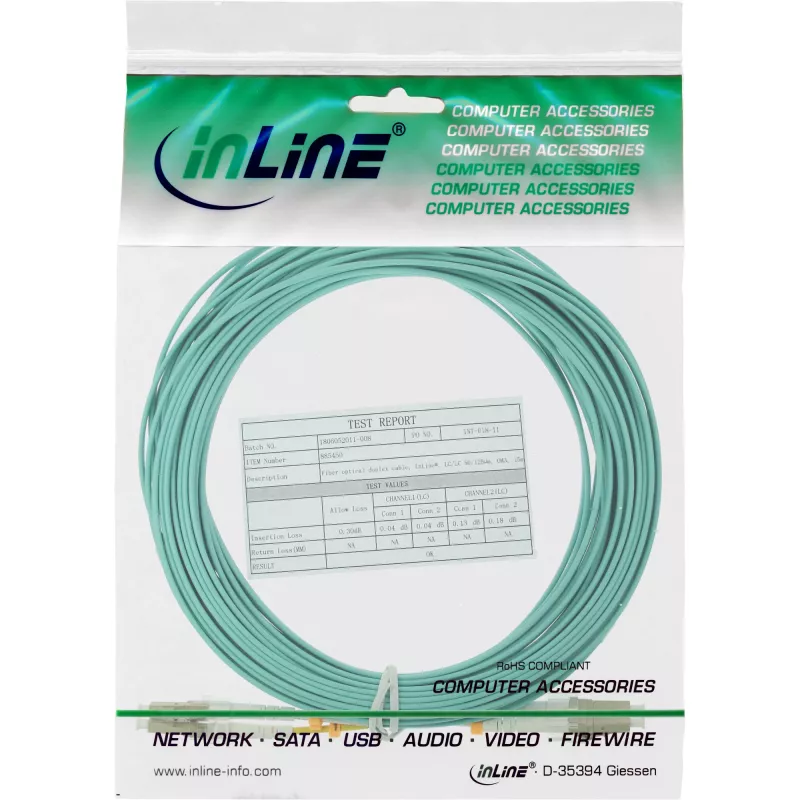

Cabo de fibra ótica duplex InLine LC/LC 50/125µm OM3 1m

The InLine Fiber Optical Duplex Cable LC/LC 50/125µm OM3 1m is a multimode fiber patch cable designed for short- to medium-distance high-speed data transmission in structured networks. The cable features LC duplex connectors on both ends and a 50/125 µm core/cladding dimension, compliant with OM3 specifications to support 10 Gigabit Ethernet and other high-bandwidth applications. At 1 meter length, it provides a compact connection solution for patch panels, switches, transceivers and active network components where full-duplex communication and low insertion loss are required.

Advantages

The cable offers OM3 multimode performance for improved bandwidth and reduced modal dispersion compared with lower-grade multimode fibers, enabling reliable 10 Gbps links over typical data center and LAN distances. Dual LC connectors provide a standardized, compact interface compatible with a wide range of SFP+ and transceiver equipment. The 50/125 µm geometry and duplex configuration support full-duplex operation and predictable optical performance in fiber runs and patching scenarios.

Suitable for

• Data center patching between switches, patch panels, and transceivers
• Server to switch connections requiring short cable runs
• LAN backbone links and high-speed multimode networks
• FTTx distribution cabinets and telecom closets with LC interfaces

Key specifications

• Fiber type: multimode OM3
• Core/cladding diameter: 50/125 µm

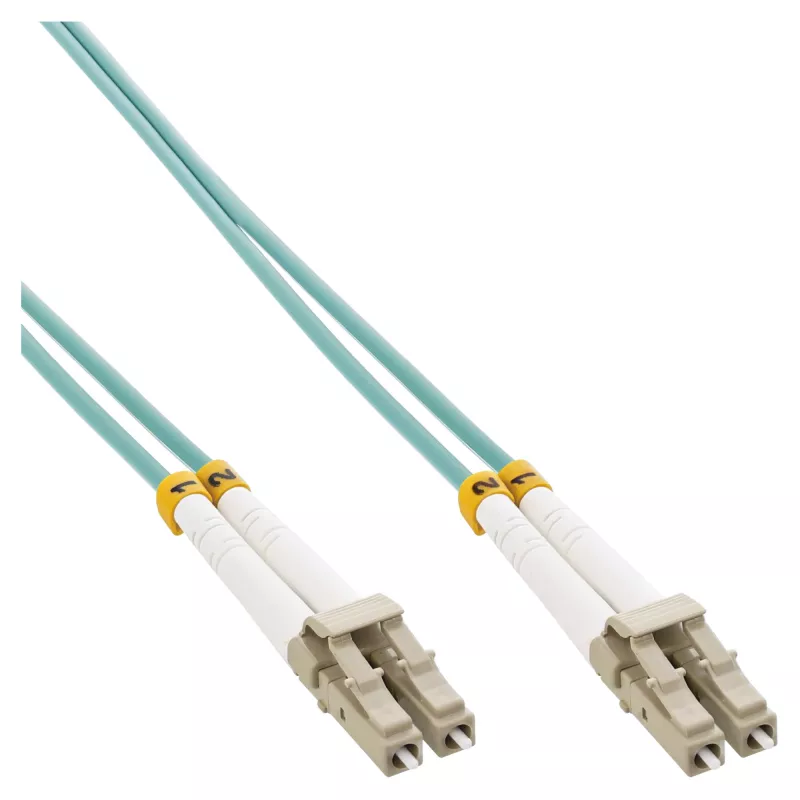

• Connector type: LC duplex to LC duplex
• Length: 1 meter
• Polishing/connector style: factory-terminated duplex LC
• Typical applications: 10 Gbps Ethernet and multimode optical links

How to use

Route the InLine LC/LC duplex cable between LC adapter ports on patch panels, switches, or optical transceivers, ensuring the connectors are clean and free of dust before insertion. Align each LC connector with the adapter slot and push until it clicks into place; for removal, depress the latch and gently pull the connector straight out. Avoid bending the cable below its minimum bend radius and secure excess length to prevent strain on the connectors. Verify link status and optical levels after installation to confirm proper performance.

Recommendations

Inspect and clean LC connector end faces with an appropriate fiber cleaning tool before each installation. Use gentle cable management, maintain recommended bend radius, and keep the cable labeled to simplify troubleshooting and reconfiguration in racks and distribution frames.
