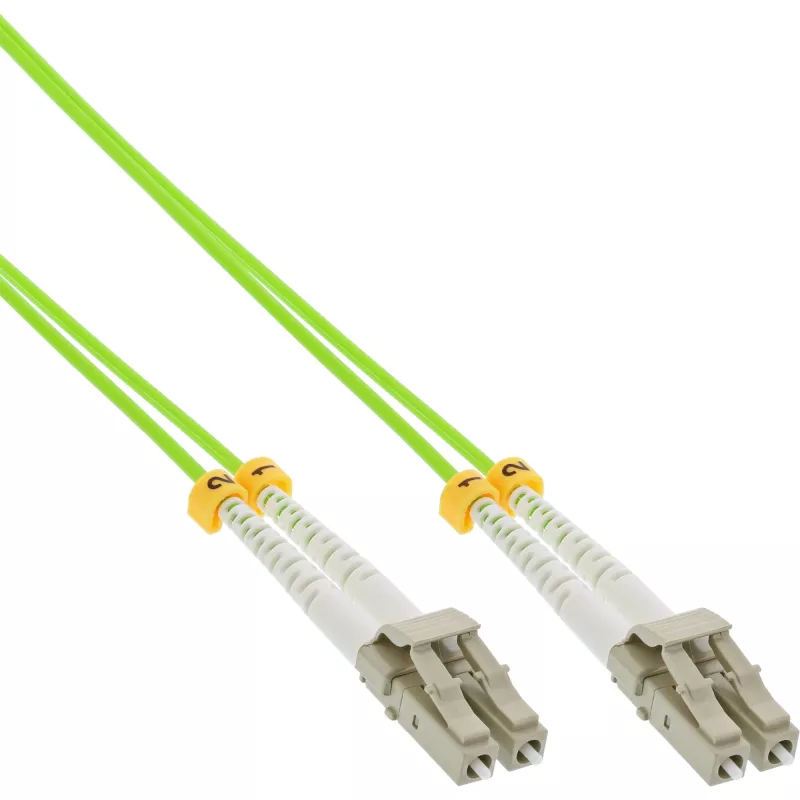

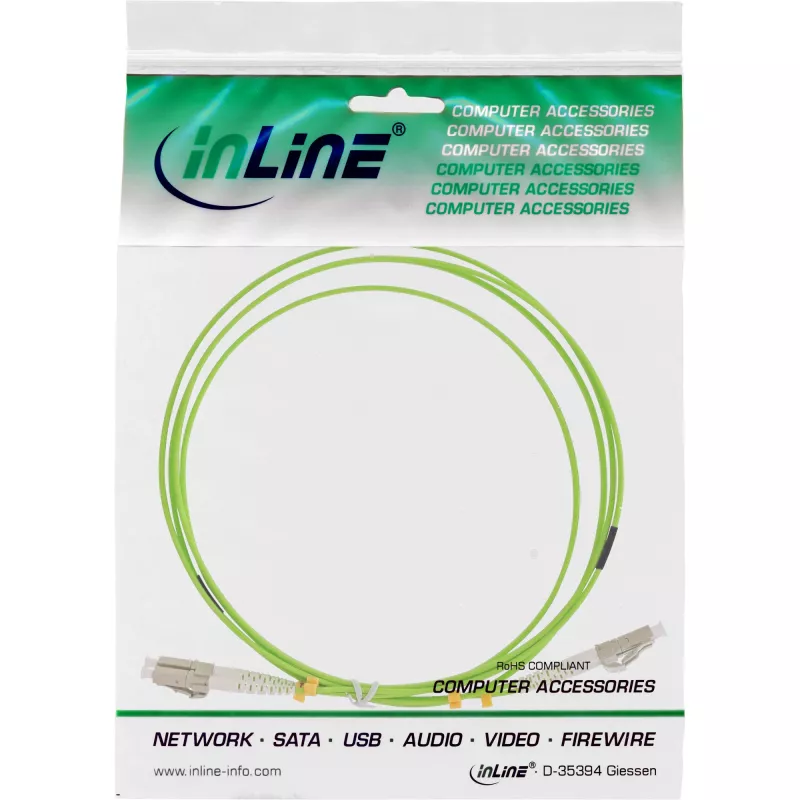

Cabo de fibra ótica duplex InLine LC/LC 50/125µm OM5 15 m

The InLine Fiber Optical Duplex Cable LC/LC 50/125µm OM5 15m is a duplex multimode fiber cable designed for high-speed data transmission in structured networks. It features LC connectors on both ends and a 50/125 µm core/cladding diameter, using OM5 multimode fiber to support wideband multimode applications. With a 15 meter length, this cable is suitable for connecting network equipment where low-latency, full-duplex links are required, such as fibre patch panels, switches and transceivers in data center and enterprise environments.

Advantages

The cable provides full-duplex communication with LC/LC connectors for compact, reliable connections. OM5 multimode construction enables optimized performance for wavelength-division multiplexing over multimode fiber and supports modern short-reach broadband applications. The 50/125 µm core specification ensures compatibility with multimode transceivers and standard multimode infrastructure. The 15 m length offers flexibility for rack-to-rack or equipment-to-panel routing without additional splices.

Suitable for

• Connecting transceivers, switches and patch panels in data centers
• High-speed short- to medium-reach multimode network links
• Enterprise LAN backbone and server rack interconnects
• Applications using LC connector interfaces and multimode equipment

Key specifications

• Connector type: LC to LC duplex
• Fiber type: OM5 multimode
• Core / cladding diameter: 50/125 µm
• Length: 15 m
• Mode: Multimode, duplex

How to use

Route the cable between the two devices to be connected, avoiding tight bends and excessive tension. Insert LC connectors firmly into the LC adapter ports or transceiver sockets until they click into place. Ensure both ends are clean and free from dust before connection; use appropriate fiber cleaning tools if necessary. Verify link status on networking equipment after connection and secure the cable to cable management points to prevent strain or accidental disconnection.

Recommendations

Use this OM5 duplex cable for short- to medium-reach multimode links in controlled environments. Maintain minimum bend radius as specified by the fiber manufacturer, keep connectors protected when not in use, and perform regular inspection and cleaning of fiber endfaces to ensure optimal signal integrity.
