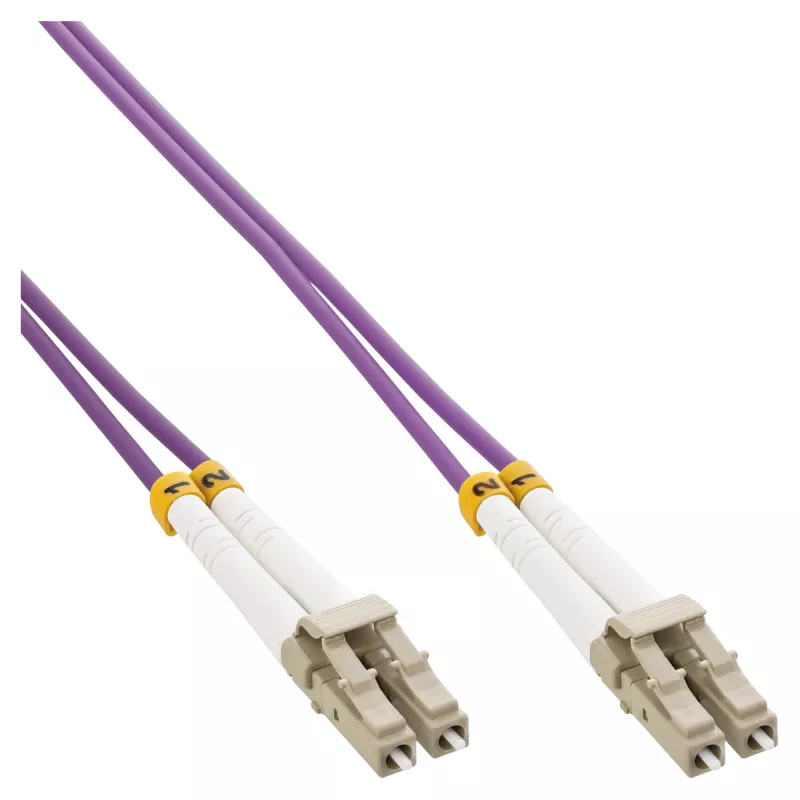

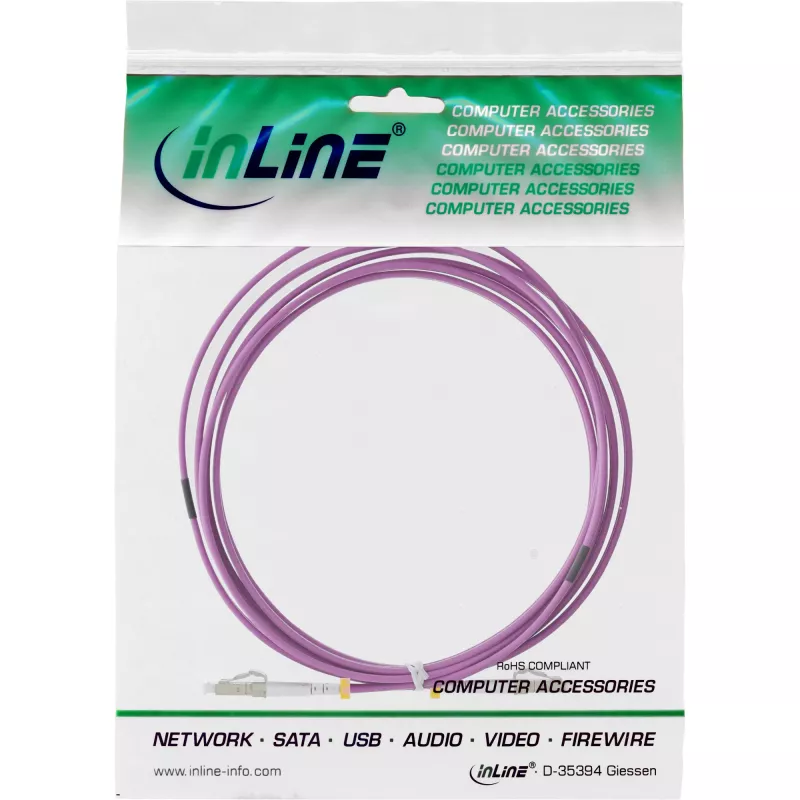

Cabo de fibra ótica duplex LC/LC InLine 88522P 50/125µm OM4 5m

The InLine Fiber Optical Duplex Cable LC/LC 50/125µm OM4 5m is a multimode duplex patch cable engineered for high-speed data transmission in structured cabling and active equipment interconnects. With a 50/125 µm core/cladding geometry and OM4 grading, the cable supports increased bandwidth and improved modal performance for short- to medium-distance links. The LC/LC connectors on both ends provide compact, reliable terminations suitable for switches, transceivers, patch panels and other SFP/SFP+ interfaces.

Advantages

This LC/LC duplex fiber cable offers low insertion loss and consistent optical performance thanks to OM4 multimode fiber characteristics. The compact LC connectors reduce port density requirements while maintaining secure mating and stable signal integrity. A 5 meter cable length gives flexibility for patching between racks, panels and devices without excess slack. The multimode construction is suitable for common data center and enterprise networking environments where short-range, high-bandwidth links are required.

Suitable for

• Interconnecting switches, patch panels and transceivers in data centers
• Fiber patching in server rooms and telecom cabinets
• Short- to medium-distance multimode links (up to OM4 recommended distances)
• High-density network deployments requiring LC connectors

Key specifications

• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector type: LC to LC duplex
• Length: 5 m
• Mode: Duplex (two fibers for full duplex communication)
• Typical application: Data center and enterprise networking

How to use

Route the duplex cable between the devices to be connected, ensuring the LC connectors align with the corresponding ports and keyed latch engages. Observe bend radius recommendations for multimode fiber and avoid sharp bends or kinks during installation. If connecting to transceivers, confirm polarity is correct and that TX/RX orientation matches the device requirements. After insertion, verify link status and, if necessary, test attenuation and continuity with appropriate fiber test equipment.

Recommendations

Store and handle the fiber cable in a clean environment to prevent contamination of connector endfaces; clean connectors with suitable fiber cleaning tools before mating. Maintain a minimum bend radius specified for multimode fiber and avoid excessive tensile force. Use this OM4 multimode LC/LC duplex cable for short-range high-bandwidth links typical in modern data centers and enterprise networks.
