Cabo de fibra ótica EFB Elektronik O0319FT.10 10 m

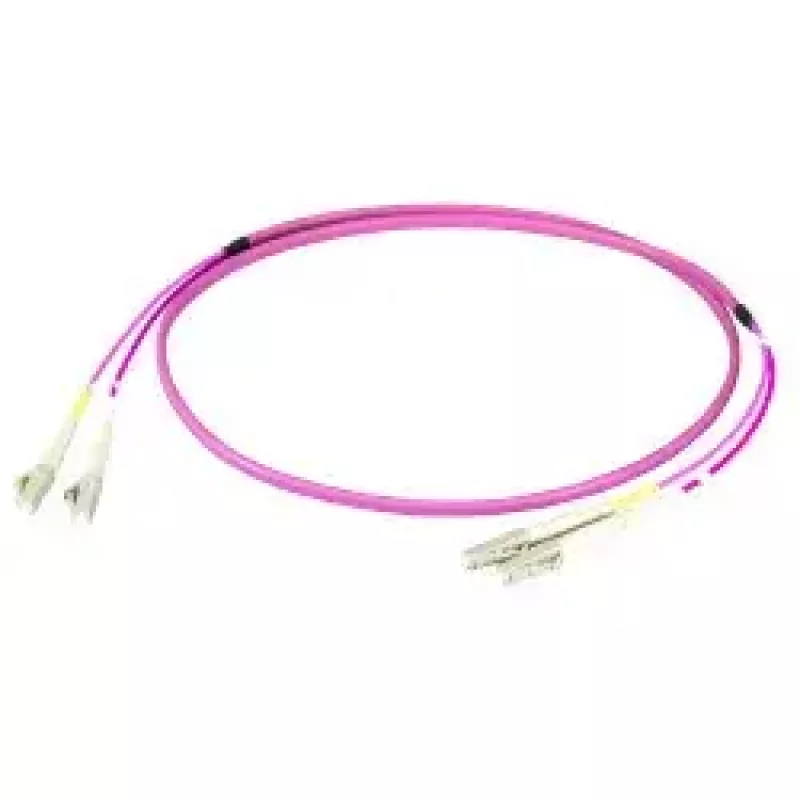

The EFB Elektronik O0319FT.10 is a 10 m OM4 fibre optic cable with LC connectors and a 50 µm core diameter. The cable is a flat twin duplex jumper with an additional outer jacket that increases stability and simplifies installation compared with a standard jumper. The jacket material is low-smoke zero-halogen (LSZH), suitable for installations where reduced smoke and toxic emission are required.

Advantages

The added outer jacket provides higher mechanical stability and improved protection for the optical fibers. LSZH jacket material reduces smoke and halogen emissions in case of fire. The flat twin duplex design and LC connectors allow for easier routing and faster installation in tight spaces and structured cabling systems.

Suitable for

• Data centers and server rooms
• High-bandwidth network links (OM4 applications)
• Patch panels and structured cabling
• Environments requiring low-smoke zero-halogen cabling

Key specifications

• Brand: EFB Elektronik
• Model / MPN: O0319FT.10
• Length: 10 m
• Fiber type: OM4 multimode
• Core diameter: 50 µm
• Connector type: LC (duplex)
• Cable design: Flat twin duplex jumper with additional outer jacket
• Jacket material: LSZH (low-smoke zero-halogen)
• EAN: 4049759157647

How to use

Connect each LC connector to the corresponding LC port on network equipment or patch panels, observing transmit/receive orientation. Route the flat twin duplex jumper along cable channels or trays, avoiding sharp bends and tight radii to maintain optical performance. Secure the cable with appropriate fasteners that do not compress the jacket, and verify the link using optical testing equipment after installation.

Recommendations

Do not exceed the minimum bend radius specified by the manufacturer and avoid tensile stress during installation. Use LSZH-rated conduits or pathways in installations where low smoke and halogen-free materials are required. Perform end-to-end testing after installation to confirm signal integrity.
