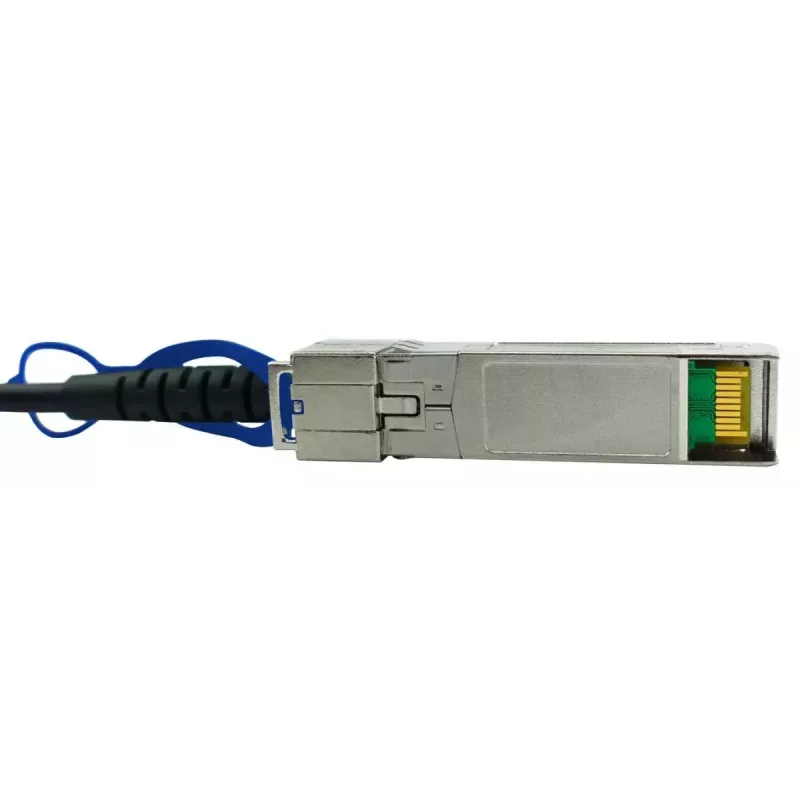

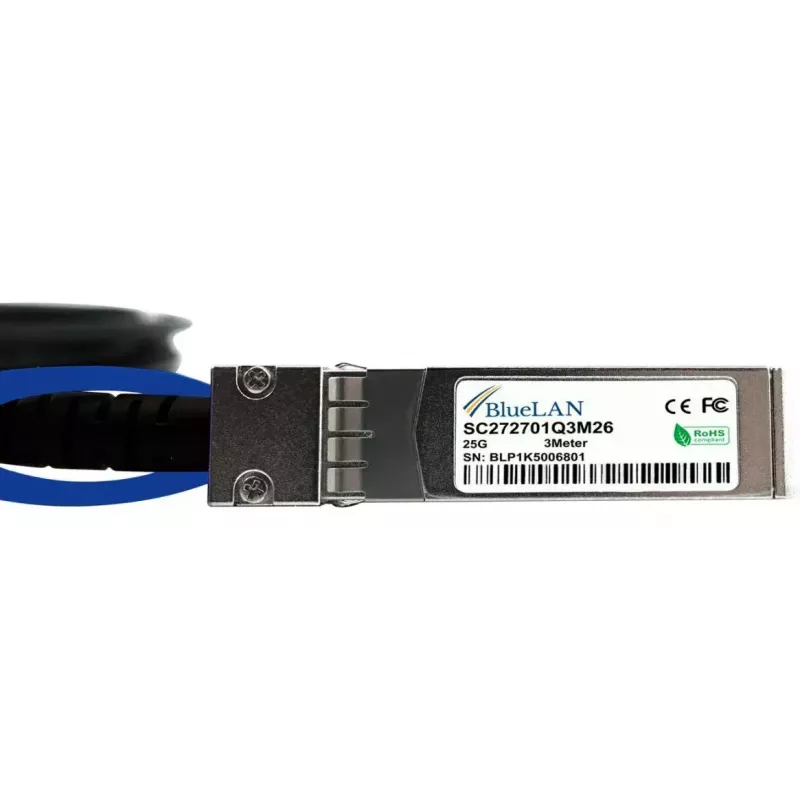

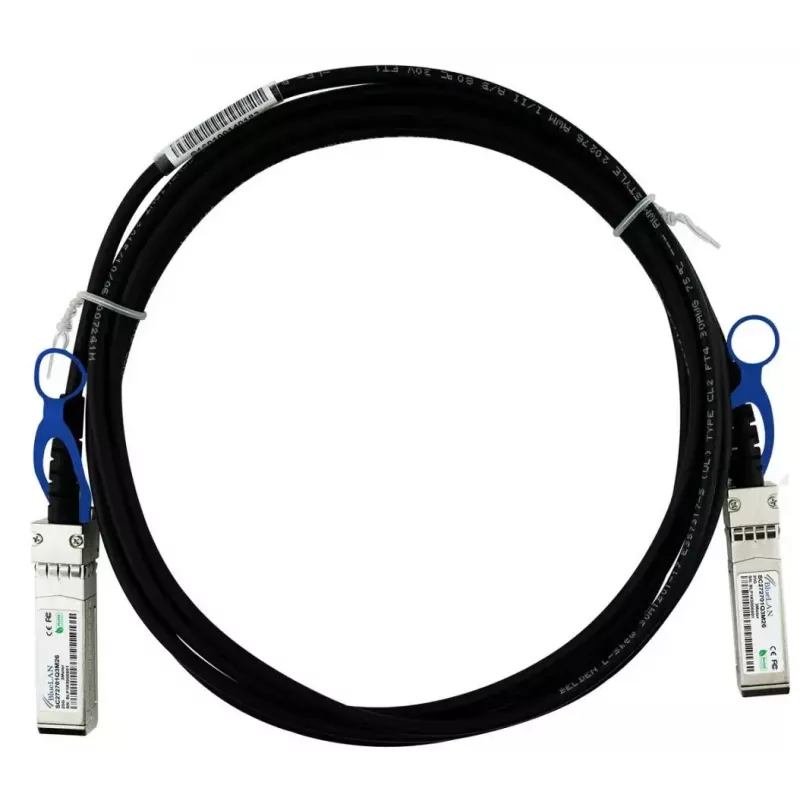

Cabo de fibra ótica InfiniBand BlueOptics ET7302-DAC-5M-BL SFP28 5 m macho/macho

The BlueOptics ET7302-DAC-5M-BL InfiniBand Fibre Optic Cable SFP28 5m Male Male is a 5-metre direct attach cable designed for short-range high-speed data links between networking devices. Built to support 25G connectivity over a twinax passive copper connection with SFP28 to SFP28 interfaces, this cable is intended for rack-to-rack and intra-rack links in data center and enterprise network environments. The design follows Multi-Source Agreement (MSA) standards to ensure mechanical and electrical compatibility with devices that accept SFP28 passive DACs.

Advantages

This 5 m passive twinax cable provides low-latency, low-power direct connectivity without active transceivers, reducing both power consumption and complexity. The SFP28-to-SFP28 male connectors enable straightforward plug-and-play installation in compatible ports. Manufactured using high-quality cable conductors and components, the product is suitable for continuous use in high-availability environments and is engineered for durability and long service life.

Suitable for

• Direct connections between switches and top-of-rack or adjacent-rack servers
• Short-distance InfiniBand, Ethernet or FCoE links up to 25 Gbps
• High-density data center environments requiring cost-effective copper DACs

Key specifications

• Length: 5 metres
• Connector type: SFP28 male to SFP28 male
• Data rate support: up to 25 Gbps
• Cable type: passive twinax copper (DAC)
• Wire gauge: 30 AWG
• MSA compliant mechanical and electrical form factor
• Typical use: intra-rack and adjacent-rack connections

How to use

Insert each SFP28 connector into the corresponding SFP28 port on the two devices to be linked, ensuring the latches fully engage. Verify that both devices support passive 25G DACs and that firmware or software settings permit passive cable operation. After physical installation, check link status via the device management interface and confirm negotiated speed and link integrity. For safe handling, avoid sharp bends and do not place heavy objects on the cable to preserve signal integrity.

Recommendations

Use this cable for short-range links inside racks or between adjacent racks where a cost-efficient, low-latency 25G connection is required. Confirm device compatibility with SFP28 passive DACs before installation and avoid routing the cable near strong electromagnetic interference sources. For installations requiring longer distances or optical isolation, consider using optical transceivers and fibre cable alternatives.
