Cabo de fibra ótica/InfiniBand Lanview LVO231469-FLEX 1 m LC LC/LC aqua

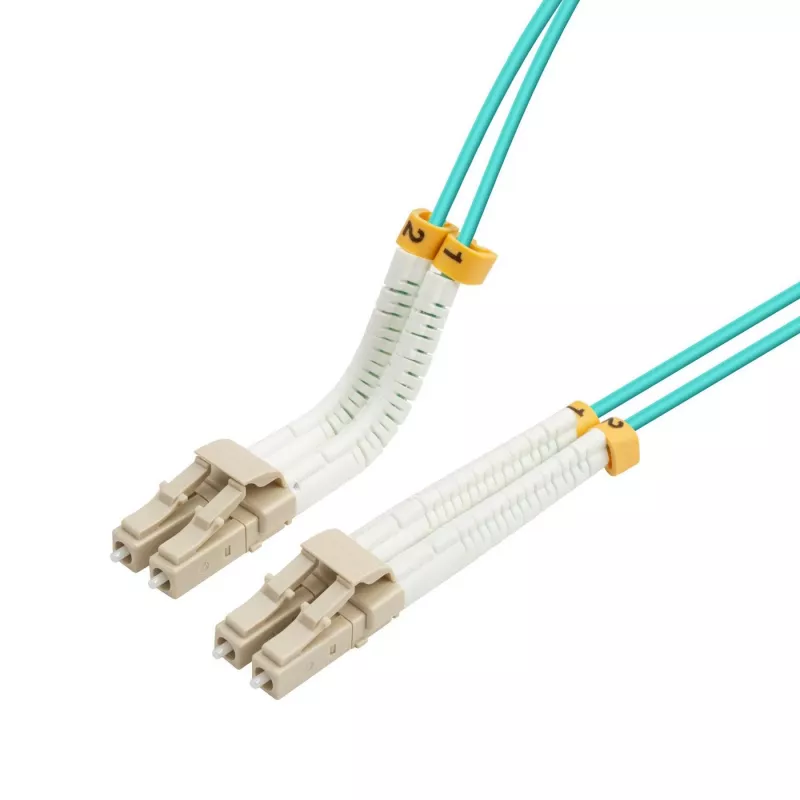

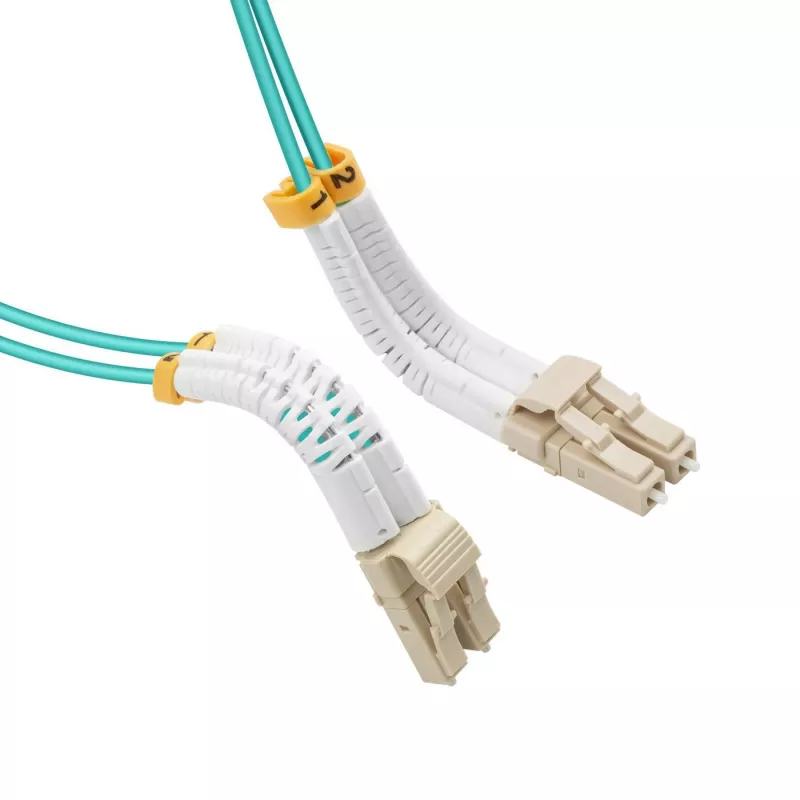

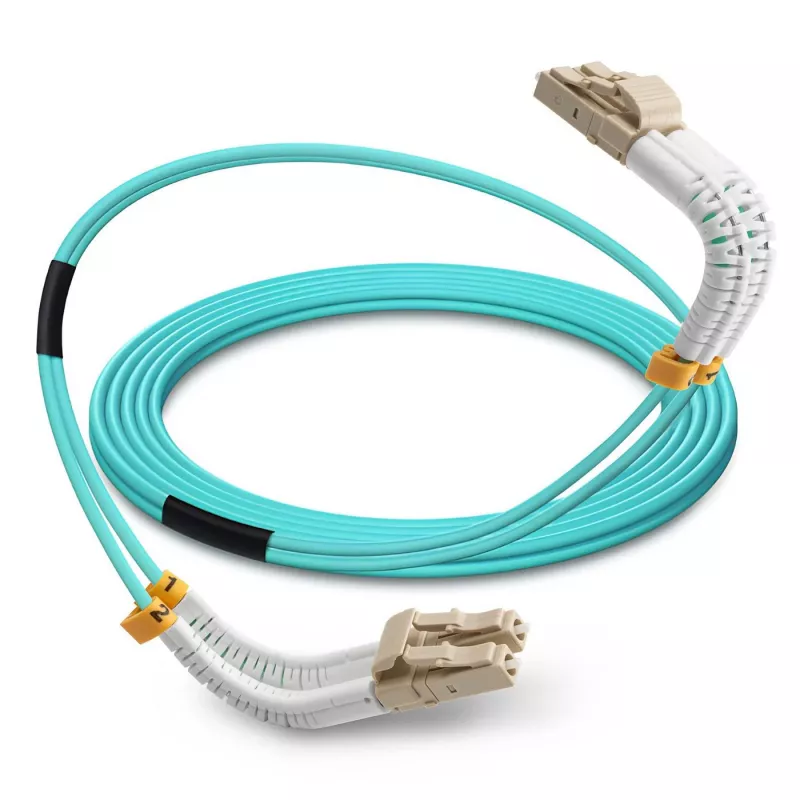

The Lanview LVO231469-FLEX is a 1 m LC–LC fibre optic patch cable with OM3 multimode fibre and a 50 µm core diameter. Designed for full-duplex high-speed connections, the cable comes in an aqua colour and includes bendable boots that allow the connector angle to be set and retained for precise routing in dense or confined installations.

Advantages

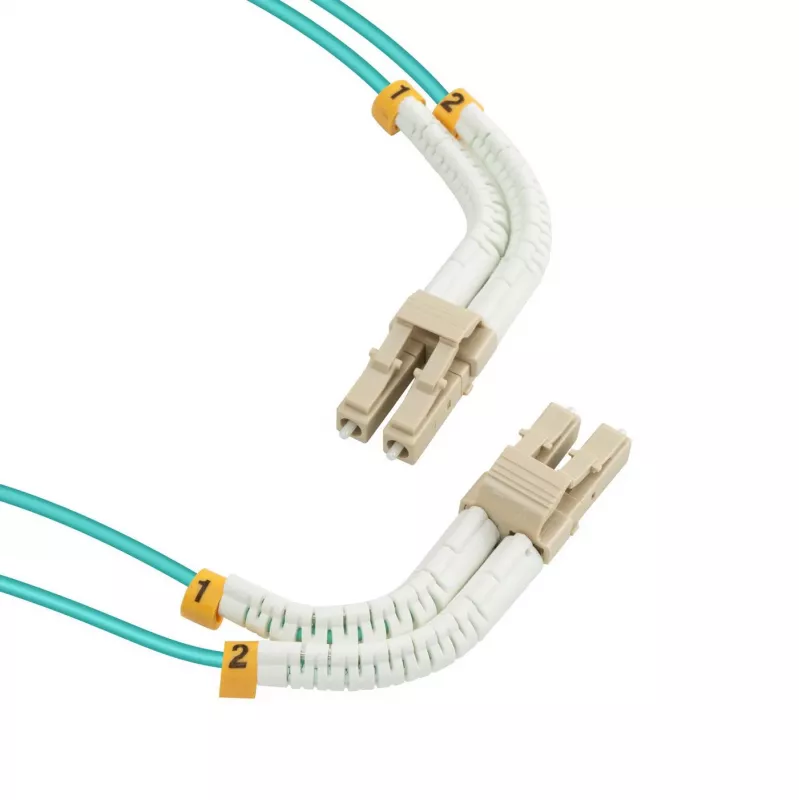

The bendable boot, formed around a single stainless-steel wire, can be adjusted by hand to any angle between straight and 90 degrees and will maintain the selected position. Its design allows quick repositioning or straightening for connector disconnection without tools. OM3 multimode fibre and LC–LC terminations provide reliable high-speed transmission suitable for common network equipment.

Suitable for

• High-density patch panels and rack-mounted switches
• Enclosures and confined routing spaces
• Data centre short-reach multimode connections
• Full-duplex links between servers and storage

Key specifications

• Manufacturer: Lanview
• Model: LVO231469-FLEX
• Type: Fibre optic patch cable LC–LC
• Fibre: OM3 multimode, 50 µm core
• Length: 1 m
• Colour: Aqua
• Weight: 0.02 kg
• EAN: 5715063505861

How to use

Insert each LC connector into the corresponding LC adapter or port until it clicks. Shape the bendable boot by hand to set the desired exit angle and route the cable through the installation space. To disconnect, straighten the boot if needed and press the connector latch before withdrawing the connector from the port.

Recommendations

Use the adjustable boot to reduce bend stress near the connector and to manage cable direction in tight spaces; avoid forcing the cable beyond the boot’s designed range and maintain minimum bend radius for the OM3 multimode fibre as specified by the equipment or industry guidelines.
