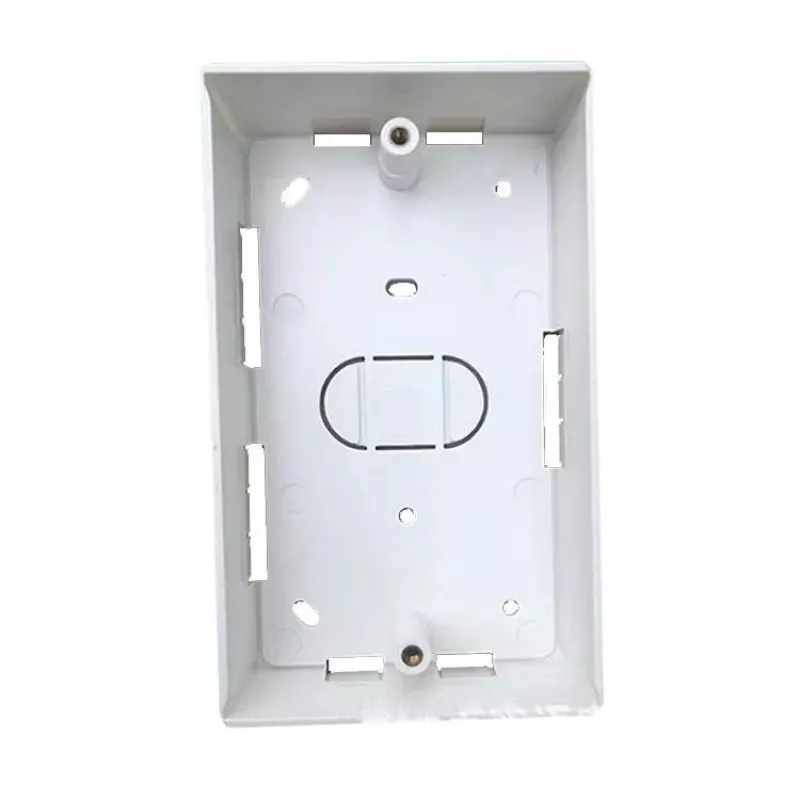

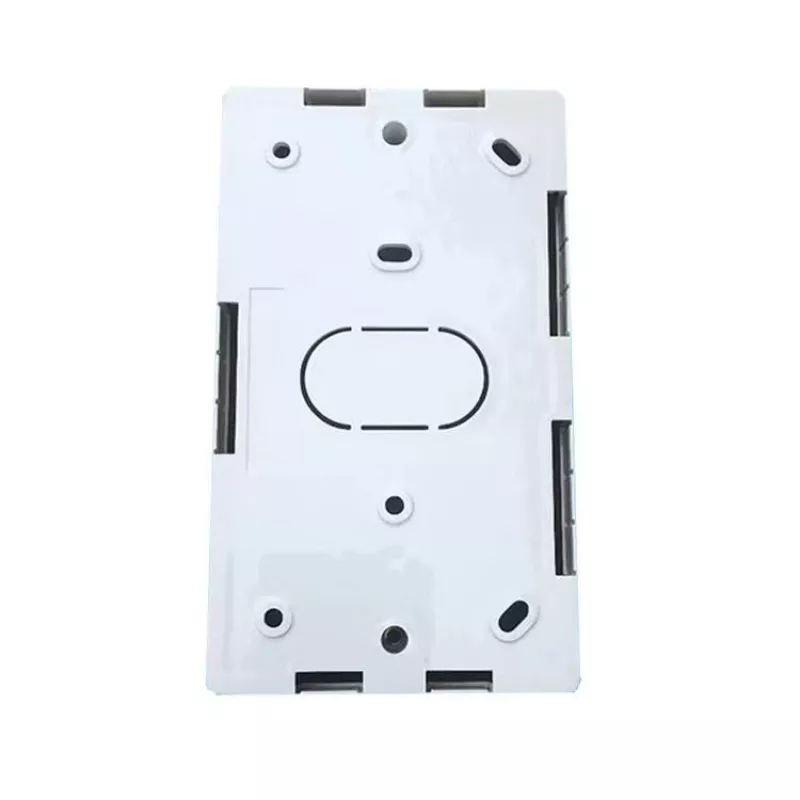

Caixa de encastrar Lanview LVN126076UK branco 145 mm x 86 mm x 32 mm

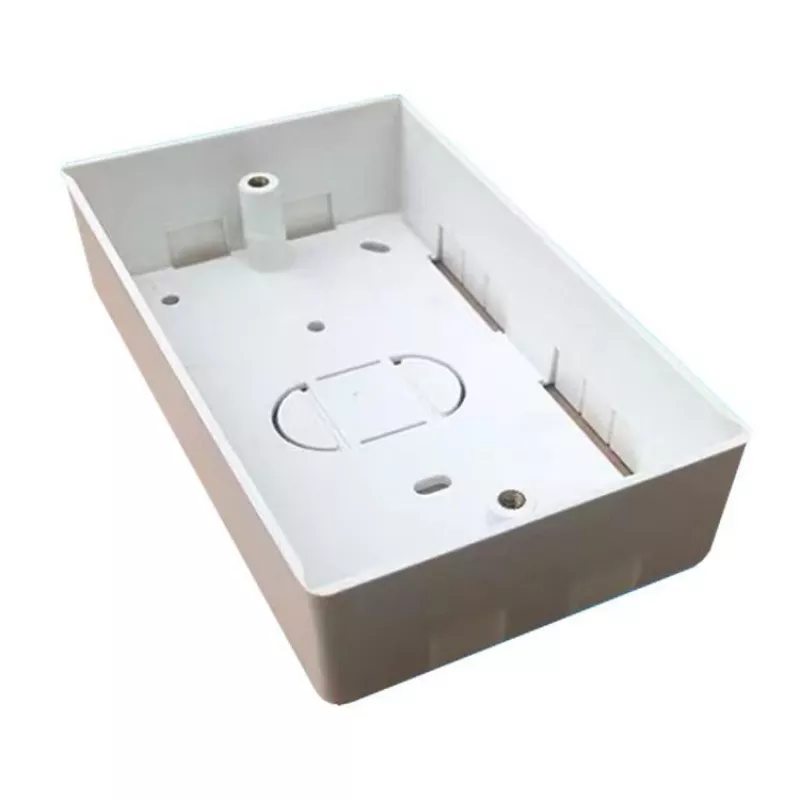

The Lanview LVN126076UK outlet box is a compact ABS back box designed for electrical installations. With dimensions of 145 mm x 86 mm x 32 mm, it is compatible with industry‑standard single and double gang faceplates and provides a durable enclosure for wiring and connections.

Advantages

The box is made from impact-resistant ABS material and includes breakaway cable entries to accommodate different cable routing requirements. Its compact footprint allows installation in tight spaces while maintaining compatibility with standard faceplates. The product is manufactured to provide consistent dimensional accuracy for straightforward mounting.

Suitable for

• Mounting single or double gang faceplates for data, voice or power outlets
• Indoor electrical and low-voltage wiring installations
• Retrofit or new-build residential and commercial projects

Key specifications

• Brand: Lanview
• Model / MPN: LVN126076UK
• EAN: 5704174531296
• Material: ABS plastic
• Dimensions (W x H x D): 145 mm x 86 mm x 32 mm
• Country of manufacture: China

How to use

Position the back box at the installation location and mark mounting points. Route cables through the appropriate breakaway entries, remove knockout sections as needed, and secure the box to the mounting surface with suitable screws. Attach the industry‑standard faceplate or module to the box and connect wiring according to applicable electrical standards and local regulations.

Recommendations

Use appropriate fasteners and ensure the box is installed flush and level. Confirm that cable entries used maintain required clearances and protection for the type of cable; observe local electrical codes and safety practices when performing installations.
