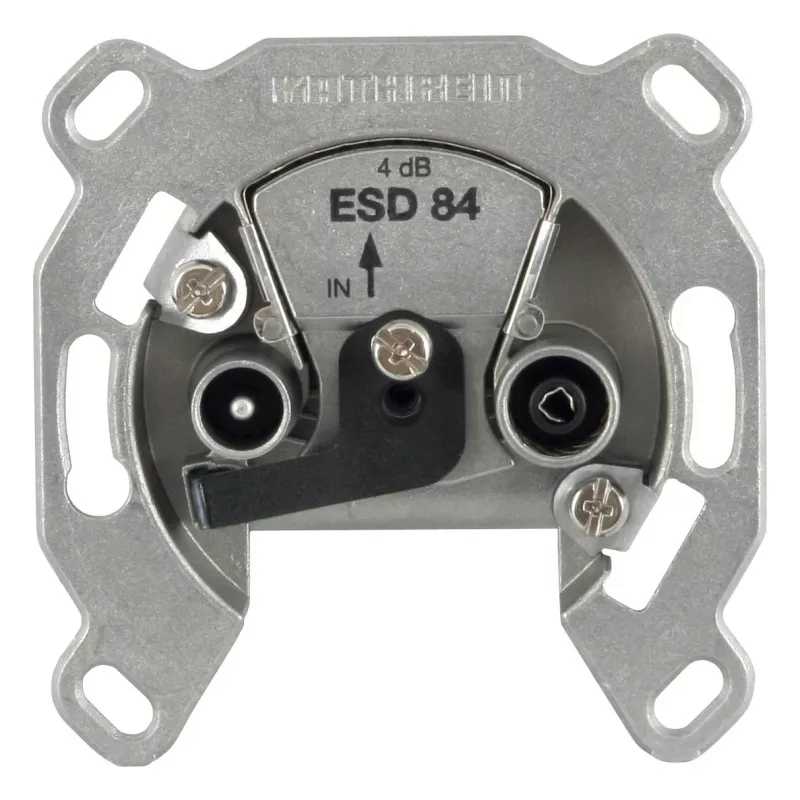

Tomada de antena Kathrein ESD 84 prateada

The Kathrein ESD 84 Silver outlet box is an end 2‑port antenna outlet designed for reliable signal distribution in residential and commercial installations. It comes in a robust silver housing and supports a wide frequency range with DC‑passage over TV/SAT, making it suitable for combining terrestrial and satellite signals at the outlet.

Advantages

The outlet provides two outputs with low connection loss across VHF/UHF and satellite bands and ensures DC‑passage for powering active devices. The compact, durable silver enclosure offers protection against environmental factors and simplifies installation thanks to standardized F‑type connections. Its frequency range up to 2400 MHz supports modern SAT and broadband RF applications.

Suitable for

Key specifications

How to use

Mount the outlet box at the desired location and connect the incoming antenna feed to the input connector. Attach coaxial cables to the two F‑type output connectors and route them to the receiving devices. Ensure that devices requiring power via the antenna cable are connected to the output that provides DC‑passage. Verify signal levels after installation and adjust upstream splitters or amplifiers if necessary.

Recommendations

For optimal performance, use quality coaxial cables and properly torqued F‑type connectors. If longer cable runs or multiple splits are present, check signal levels and add an appropriate distribution amplifier to compensate for loss.
