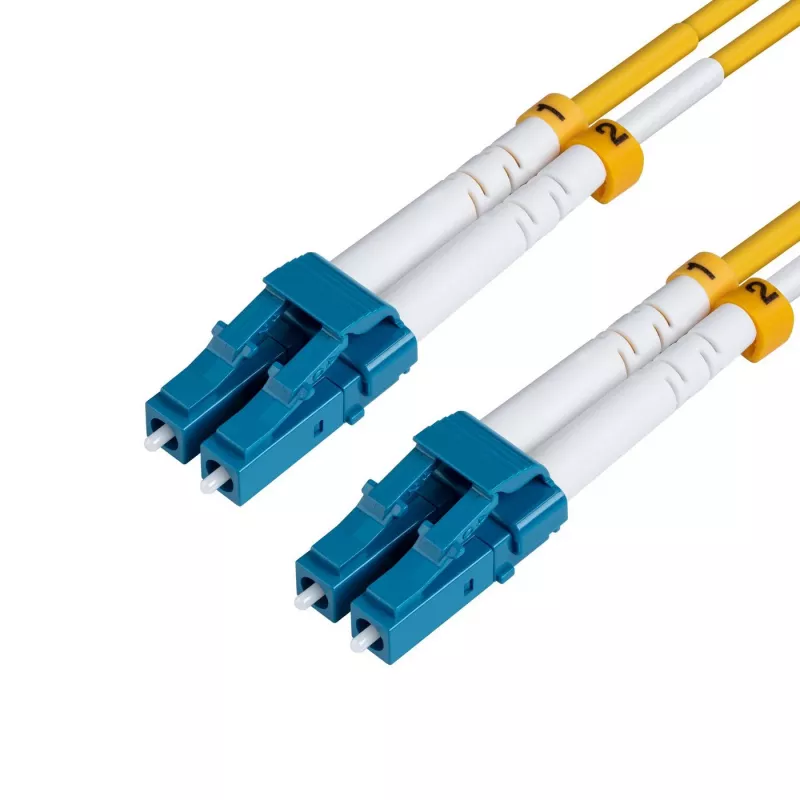

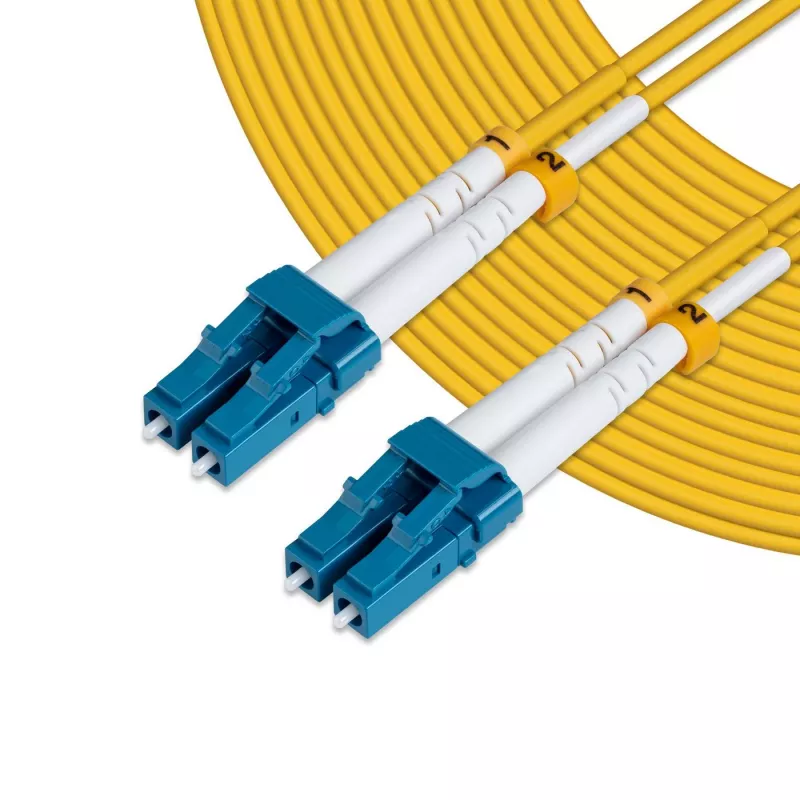

Cabo de fibra ótica InfiniBand Microconnect FIB441003 3 m LC amarelo

The Microconnect FIB441003 is a 3 m single-mode OS2 fibre optic patch cable with LC connectors on both ends. With a 9 µm core diameter and yellow jacket for easy identification, this cable is designed for high-speed Ethernet links and data centre interconnects. It supports transmission distances up to 10 km at 1310 nm and up to 40 km at 1550 nm and is manufactured with LSZH sheathing that conforms to industry standards.

Advantages

The LC–LC OS2 construction ensures low attenuation and stable signal performance for 1G/10G/40G/100G Ethernet and InfiniBand applications. The 3 m length provides flexible rack-to-rack or patch panel connections while the LSZH jacket reduces smoke and toxic gas emission in confined spaces. The yellow colour coding simplifies cable management in dense network environments.

Suitable for

• Data centres and server farms
• Telecom rooms and patch panels
• Cloud storage network interconnects
• High-speed Ethernet and InfiniBand links (1G/10G/40G/100G)

Key specifications

• Model: Microconnect FIB441003
• Fibre type: Single-mode OS2
• Core diameter: 9 µm
• Connectors: LC — LC
• Length: 3 m
• Jacket: LSZH
• Colour: Yellow
• Transmission range: up to 10 km @ 1310 nm, up to 40 km @ 1550 nm
• Weight: 0.036 kg

How to use

Route the 3 m LC–LC patch cord between LC-compatible transceivers, patch panels or equipment ports. Ensure connectors are clean before insertion and align each LC connector until it clicks into the receptacle. Avoid tight bends; maintain the manufacturer’s minimum bend radius to prevent increased attenuation or fibre damage. Secure the cable in trays or cable managers to prevent strain on the connectors.

Recommendations

Store and handle the cable by the boot or connector housing; clean connectors with appropriate fibre cleaning tools before installation. Use this OS2 single-mode cable for long-distance links within the specified wavelength ranges and choose appropriate transceivers to match system requirements.
