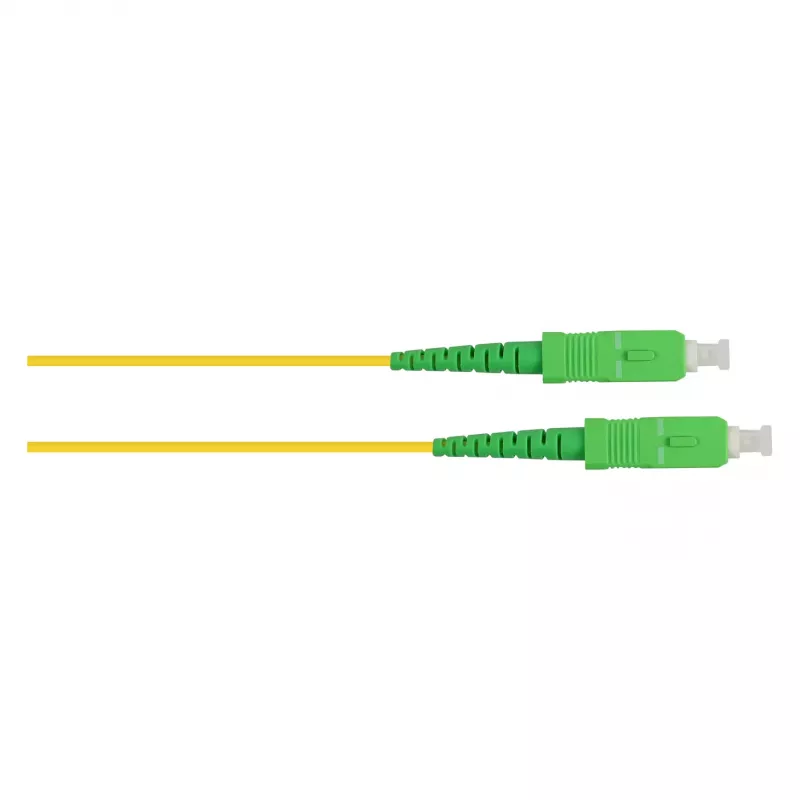

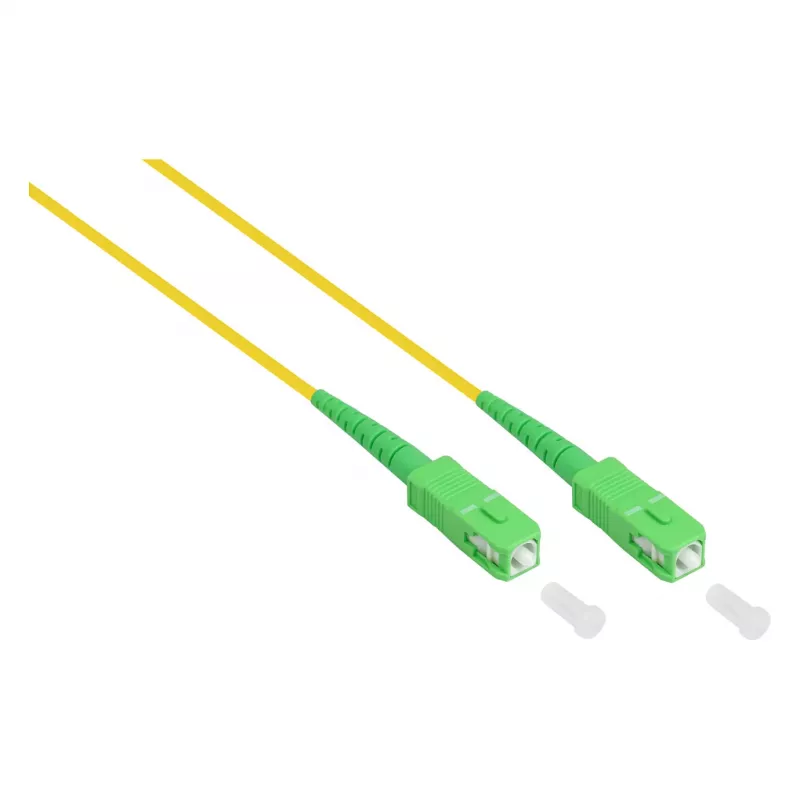

Cabo de fibra ótica OS2 monomodo LC/SC duplex 9/125 µm 3 m amarelo

The Good Connections OS2 LWL Patch Cable LC/SC SM 9/125µm 3m is a high-performance fiber optic patch cable designed for reliable single-mode transmission in data centers, telecommunications, and enterprise networks. With LC to SC connectors, duplex configuration, and OS2 grade, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers superior performance with <0.3 dB insertion loss per connector and >50 dB return loss, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes in case of fire. The yellow color indicates single-mode fiber, making identification easy.

Suitable for

• Fiber optic network installations requiring single-mode connectivity
• Connecting switches, routers, and patch panels in data centers
• Telecommunications and FTTH (Fiber to the Home) applications
• High-speed data transmission over long distances

Key specifications

• Fiber Mode: Single-mode (OS2)
• Connector Type A: LC (Lucent Connector)
• Connector Type B: SC (Subscriber Connector)
• Fiber Core/Cladding: 9/125 µm
• Cable Length: 3 m
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Connector Polish: UPC (Ultra Physical Contact)
• Insertion Loss (Max.): <0.3 dB per connector
• Return Loss (Min.): >50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is ideal for backbone cabling and high-speed network links.
