Cabo de instalação duplo InLine S/FTP PiMF Cat.7a AWG23 1200MHz, LSOH, 50m

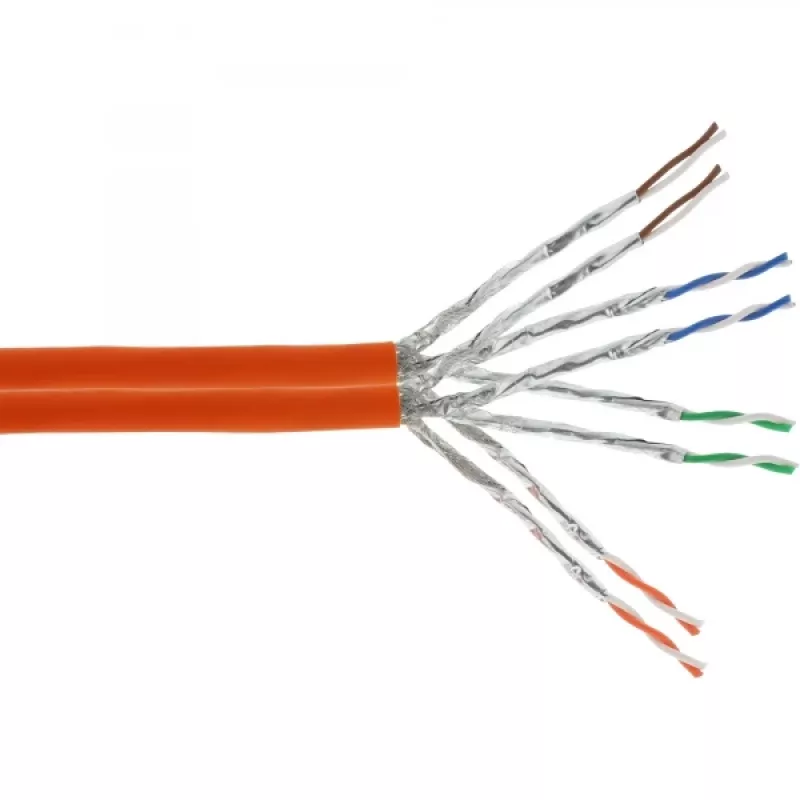

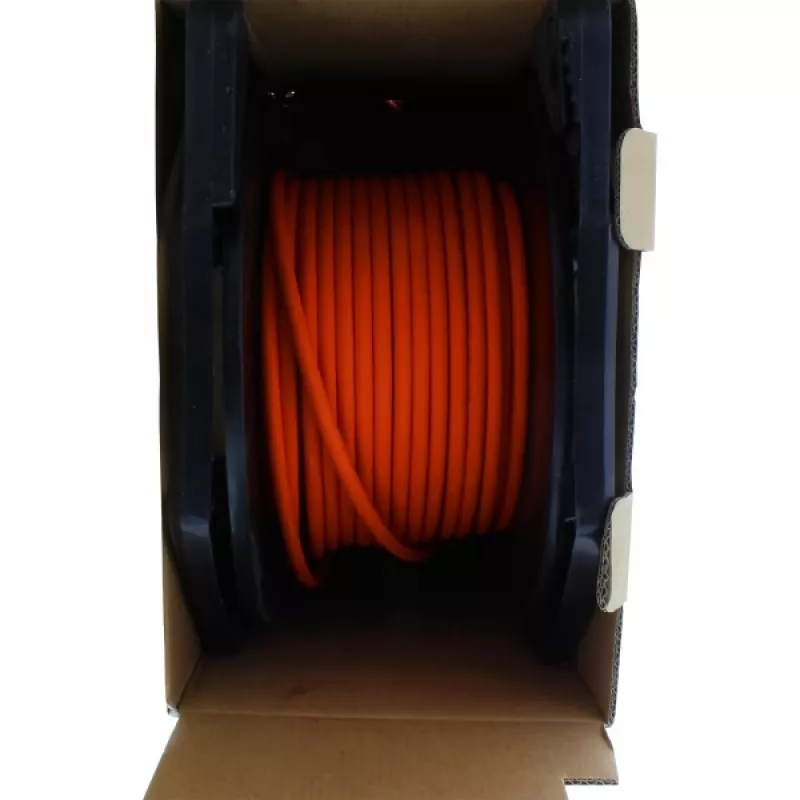

The InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 (50 m) is supplied in a drum box that holds the data cable on a plastic roller fixed inside a cardboard carton for controlled unwinding and easy access to the required length. The cable is designed for installation use, supports frequencies up to 1200 MHz and provides full copper conductors with S/FTP (pairs in metal foil plus overall braid) shielding. The outer jacket is halogen-free (LSOH) and the sheath is orange for easy identification.

Advantages

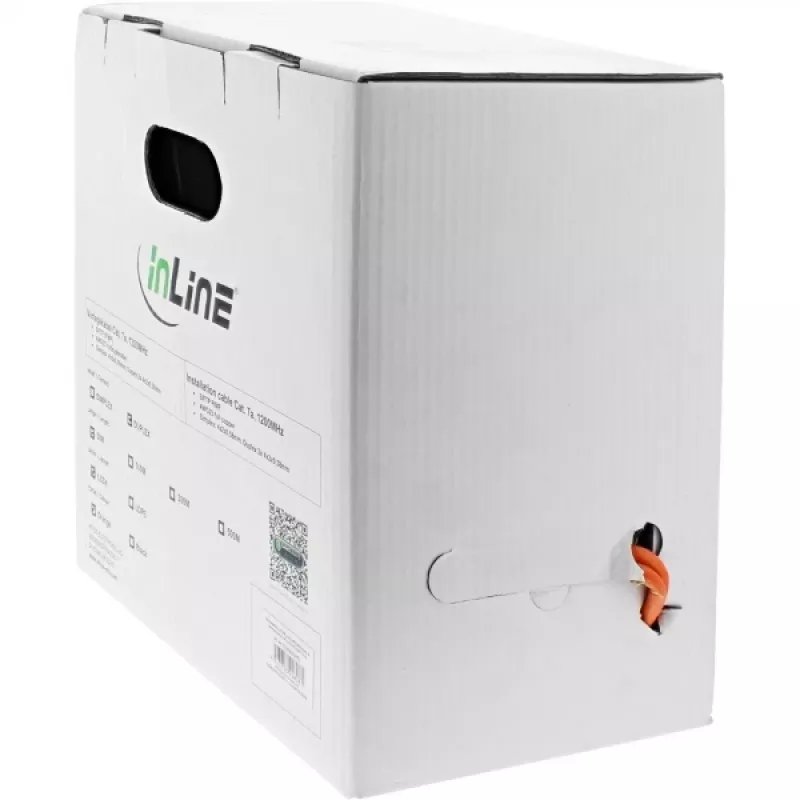

The drum box reduces on-site handling costs by allowing unwinding without additional tooling, offers lightweight and stackable packaging suitable for transport in construction vehicles and parcel delivery, and protects the cable from dirt and damage with cardboard packaging. Small-quantity handling and logistics costs are reduced, and meter-printing on the cable simplifies measuring and installation.

Suitable for

• Structured building and site installations requiring Cat.7a performance
• 10 Gbps Ethernet and high-bandwidth network links up to 1200 MHz
• Indoor installation runs where color-coded cables simplify identification

Key specifications

• Type: Duplex installation cable, S/FTP PiMF
• Category: Cat.7a to 1200 MHz
• Conductor: Full copper, (2x) 4x2x AWG23/1
• Shielding: Pairs in metal foil, overall braid
• Impedance: 100 Ohm
• DC resistance: max. 87 Ohm/km
• Jacket: Halogen-free (LSOH), orange

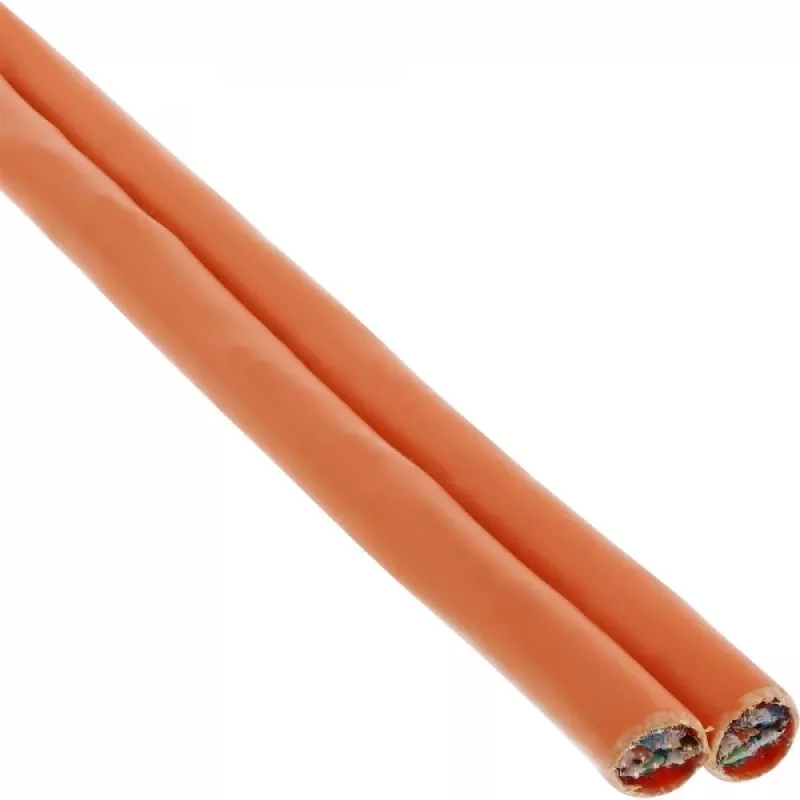

• Cable diameter: approx. 2 x 8.2 mm
• Temperature: installation 0 to 50 °C, operation -20 to 60 °C
• Reaction to fire: Eca (EN 50575:2014 / A1:2016)
• Length: 50 m (drum box available for 50 m and 100 m bundles)

How to use

Place the drum box so the cable can be unwound smoothly from the plastic roller. Pull the cable to the required length, cut at the meter-print marking if needed, and perform terminations or connector assembly according to standard Cat.7a installation practices. Follow standard bending radius and separation guidelines from power cables during installation to preserve shielding and signal quality.

Recommendations

For optimal performance, keep the cable within the specified installation and operating temperature ranges, avoid sharp bends or compressive forces on the sheath, and use the drum box for controlled unwinding to prevent kinks and contamination. The drum box option is provided for 50 m and 100 m bundles; 300 m and 500 m lengths are supplied on a single drum.
