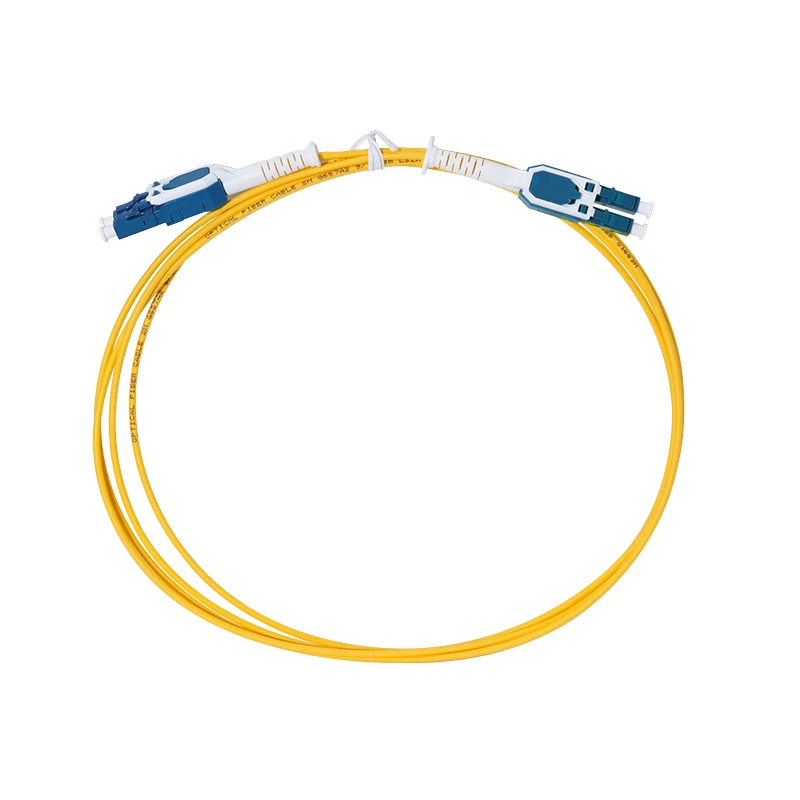

Cabo de patch de fibra ótica Uniboot Push-Pull LC-LC OS2 LogiLink, 3,0 m

Single-mode OS2 fiber patch cord with uniboot push-pull LC duplex connectors, engineered for high-density patching and reliable 3-meter links. The 9/125 µm core/cladding delivers low insertion loss and high return loss, ensuring stable high-speed data transmission in demanding network environments.

Advantages

The uniboot construction combines both fibers in a single 3.0 mm LSZH jacket, reducing cable bulk and simplifying cable management in high-density patching areas. Push-pull tabs allow one-hand insertion and removal without disturbing adjacent connectors, while the yellow jacket provides high visibility and compliance with industry color standards. LSZH material emits low smoke and zero halogen, enhancing safety in enclosed spaces.

Suitable for

• Data center interconnects and cross-connects
• Telecommunications rooms and backbone cabling
• Enterprise networks requiring OS2 single-mode performance
• High-density fiber patching with limited space
• Applications needing quick connect/disconnect cycles

Key specifications

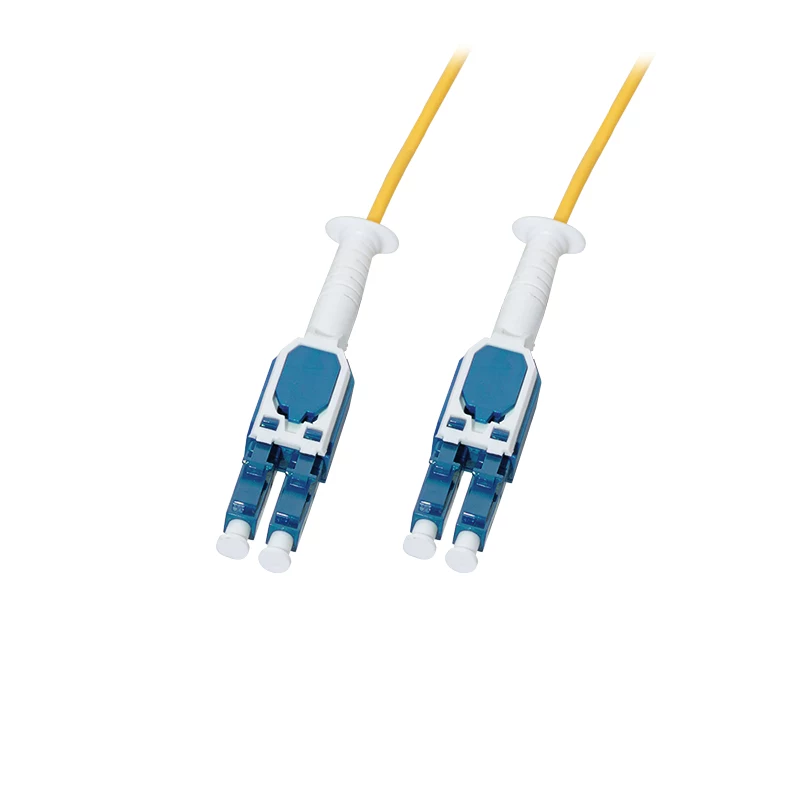

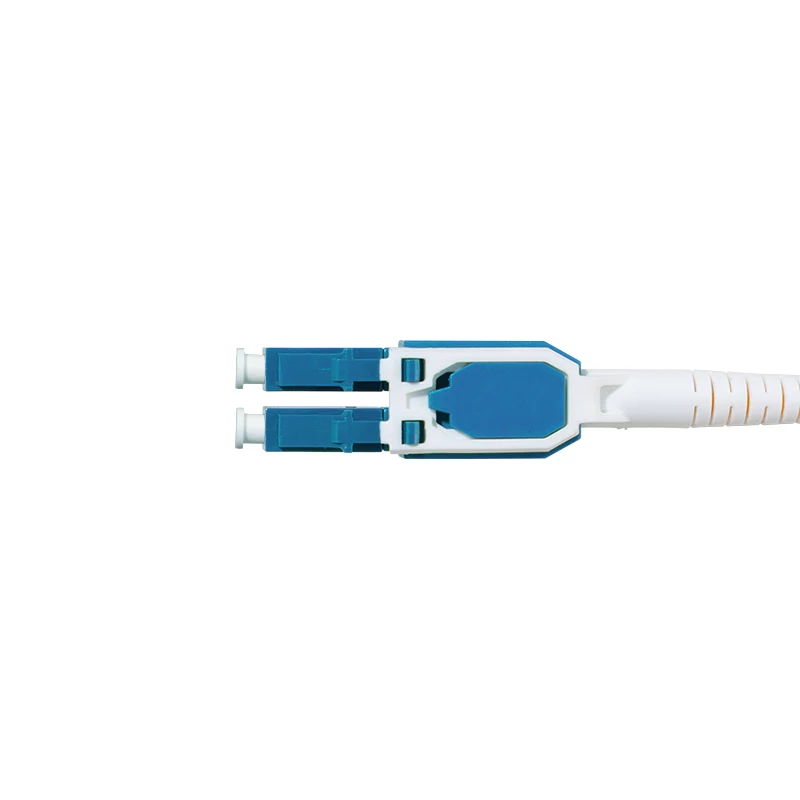

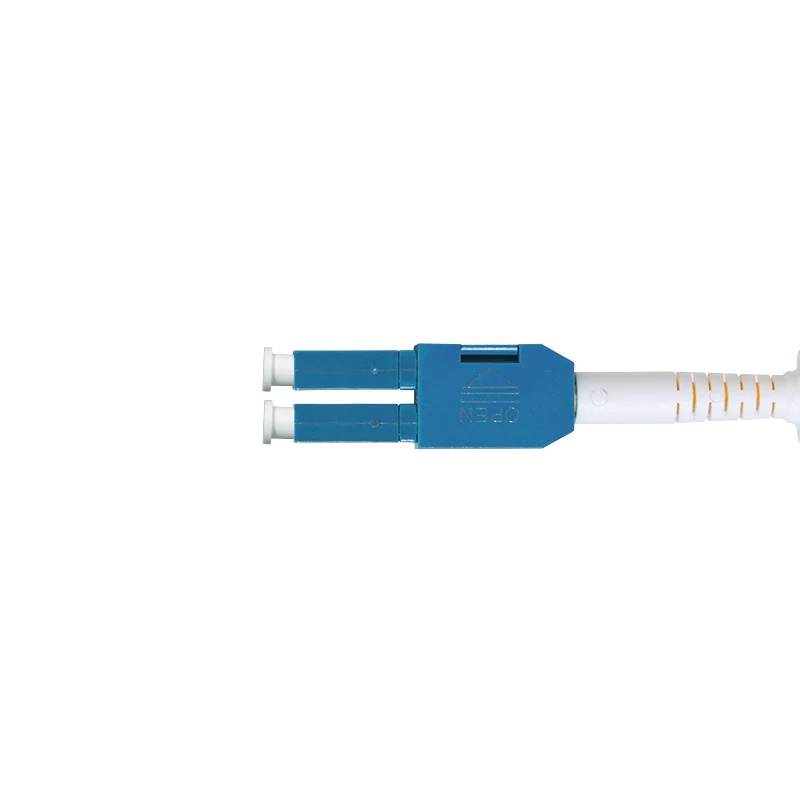

• Connector type: LC Duplex to LC Duplex, push-pull mechanism
• Fiber mode: Single-mode OS2, 9/125 µm core/cladding
• Cable length: 3.0 m (9.84 ft)
• Insertion loss: ≤ 0.2 dB typical
• Return loss: ≥ 50 dB typical, UPC polishing
• Jacket: LSZH, yellow, 3.0 mm diameter
• Minimum bend radius: 10D
• Operating temperature: -20°C to +70°C
• Standards: IEC 61754-20, TIA/EIA-604-10, RoHS, REACH

Recommendations

For optimal performance, avoid exceeding the minimum bend radius and keep connectors clean using appropriate fiber cleaning tools.
