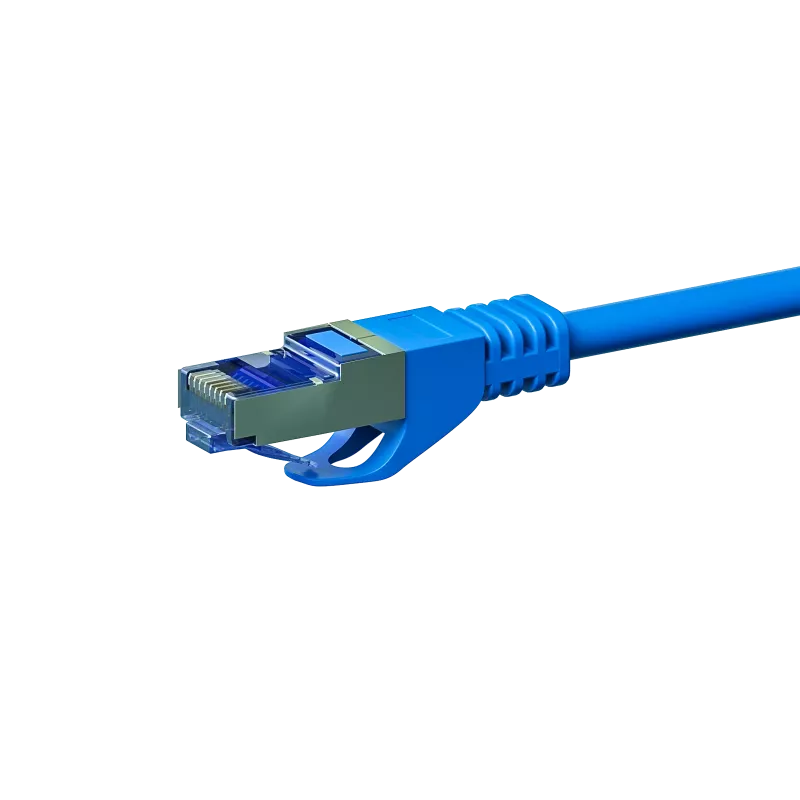

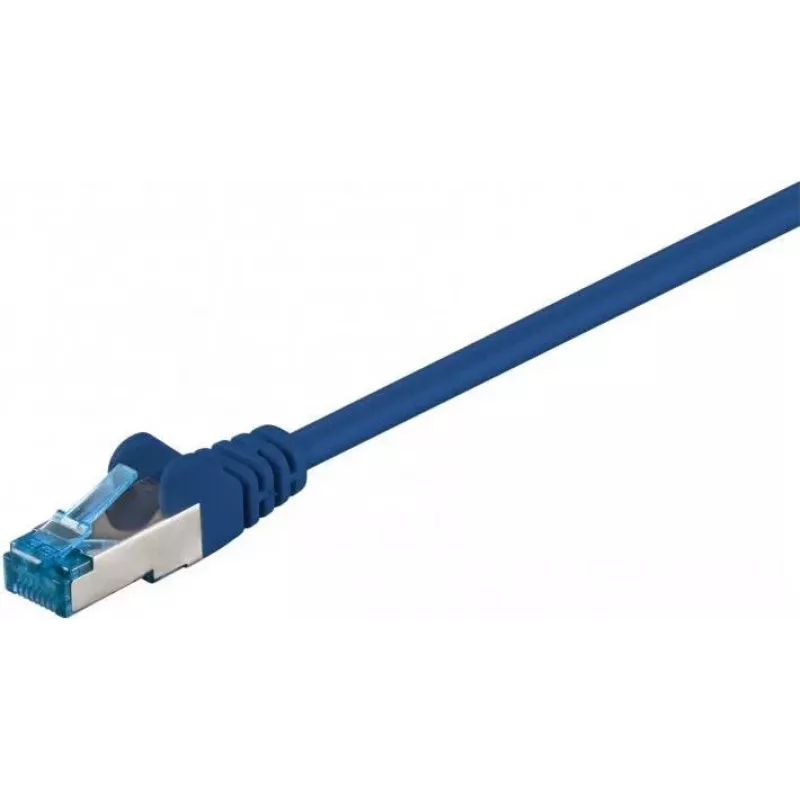

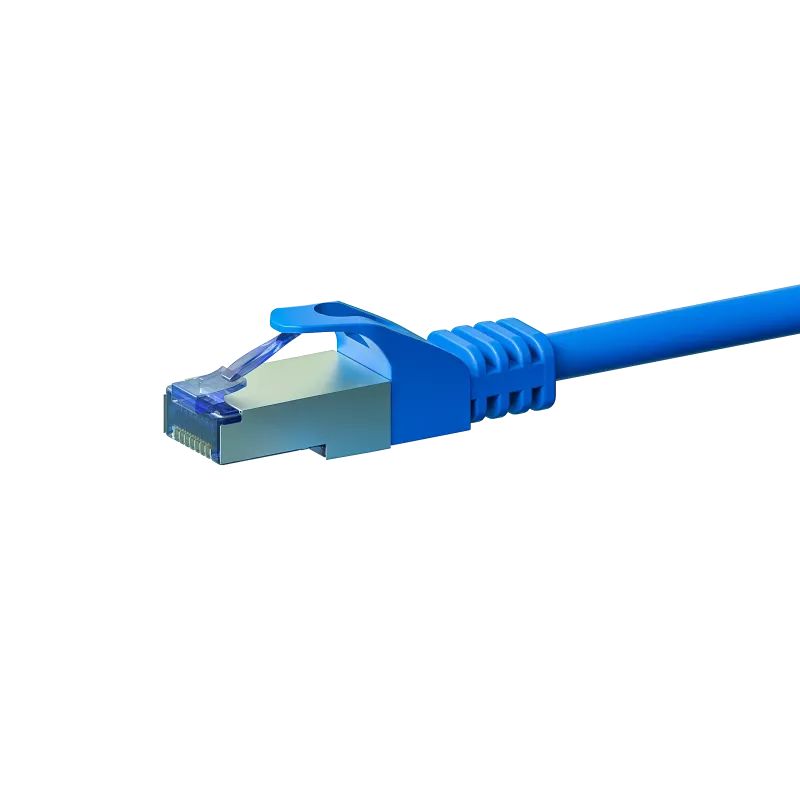

Cabo de patch de rede DSIT CAT 6a S/FTP LSOH, 7,5 m, azul

High-performance CAT 6a network patch cable engineered for 10 Gigabit Ethernet over 7.5 meters. The S/FTP shielding—each pair individually foiled plus an overall braided screen—virtually eliminates alien crosstalk, ensuring error-free transmission at up to 500 MHz bandwidth. The LSOH (Low Smoke Zero Halogen) jacket emits minimal smoke and no toxic halogens in the event of fire, making it ideal for enclosed spaces, public buildings, and data centers where safety is paramount. Gold-plated RJ45 connectors resist corrosion and maintain reliable contact over thousands of mating cycles. Stranded 26/7 AWG copper conductors provide excellent flexibility for tight bends and frequent re-routing without signal degradation. Wired to TIA/EIA-568B standard, this cable is fully backward compatible with Cat 6, Cat 5e, and Cat 5 networks.

Advantages

Superior shielding for maximum noise immunity; LSOH jacket for enhanced fire safety; gold-plated contacts for long-term reliability; flexible stranded copper for easy installation; supports 10GBASE-T up to 100 meters (this length 7.5 m).

Suitable for

• 10 Gigabit Ethernet links in data centers and server rooms
• High-density patch panels and switch-to-server connections
• Environments requiring low smoke and zero halogen materials
• Professional network installations where performance and safety are critical

Key specifications

• Category: CAT 6a (Class EA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket: LSOH (Low Smoke Zero Halogen)
• Length: 7.5 meters
• Color: Blue
• Connectors: RJ45 male to RJ45 male, gold-plated
• Conductor: Stranded copper, AWG 26/7
• Bandwidth: 500 MHz
• Impedance: 100 Ohm
• Wiring: TIA/EIA-568B
• Fire safety: IEC 60332-1, IEC 61034-2, IEC 60754-2 compliant

Recommendations

For mission-critical 10G links where cable flexibility and fire safety are non-negotiable, this DSIT CAT 6a S/FTP LSOH cable delivers consistent performance and peace of mind.
