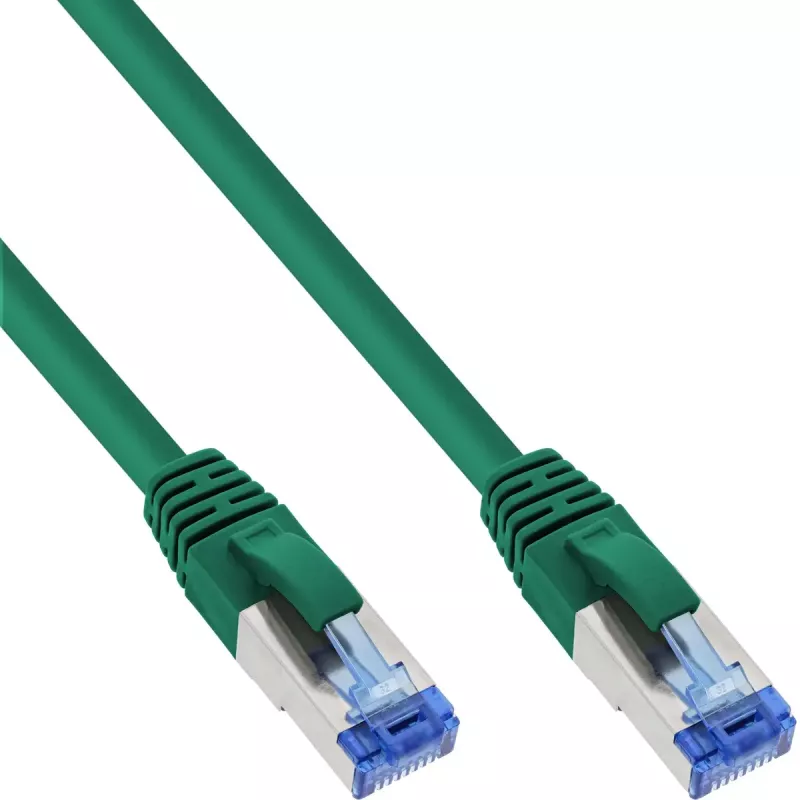

InLine B-76814G Cat6A S/FTP (PiMF) cabo de rede sem halogéneos, 1,5 m, verde, pack de 50

The InLine B-76814G is a Cat6A S/FTP (PiMF) halogen-free patch cable in green, supplied as a 50-pack. It features a solid copper conductor and RJ45 connectors with gold-plated contacts, suitable for Gigabit and 10 Gigabit applications up to 500 MHz.

Key features

• Cat6A S/FTP (PiMF) shielding
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500 MHz
• Includes enclosed test report
• PoE/PoE+/PoE++ support
• 50-pack bulk packaging

Specifications

• Brand: InLine
• MPN: B-76814G
• Product colour: Green
• Cable construction: S/FTP (PiMF) 4x2xAWG26/7, solid copper wire
• Overall braided shield with pair-wise foil shielding
• Jacket: Halogen-free (LSZH), compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector: RJ45 plug straight on both ends
• Assignment: 1:1
• Conductor material: CU (copper)
• Length: 1.50 m
• Outer diameter: 6.2 mm
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Max. supported data transfer rate: 10 Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90 W
• Assignment according to TIA/EIA 568B2.1
