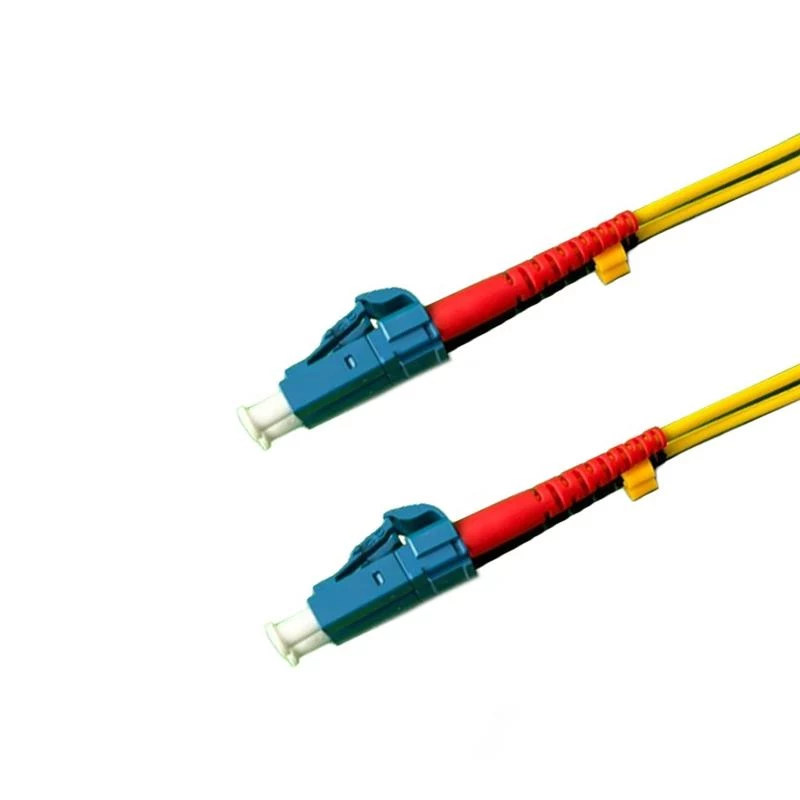

Cabo de rede de fibra ótica GRAFENTHAL OS2 monomodo LC-LC duplex 1m LSZH amarelo

The GRAFENTHAL OS2 Single-mode Fiber Patch Cable provides a high-performance, reliable connection for your fiber optic network. Engineered with precision, this duplex LC to LC patch cord ensures low insertion loss and high return loss, making it ideal for demanding data center and enterprise applications. The cable features a 9/125 µm core/cladding, LSZH (Low Smoke Zero Halogen) jacket for safety, and a bend-insensitive design compliant with G.657.A1 and G.652.D standards. With a length of 1 meter and a vibrant yellow color for easy identification, this cable is ready for Gigabit and 10 Gigabit Ethernet, Fibre Channel, and FTTx deployments.

Advantages

This fiber patch cable offers exceptional signal integrity with ≤0.3 dB insertion loss and ≥50 dB return loss, ensuring minimal data loss and reliable transmission. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for indoor installations. Its bend-insensitive design allows for tighter cable routing without performance degradation.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Enterprise LAN and SAN environments
• FTTx (Fiber to the x) installations
• High-speed Ethernet (1G/10G) and Fibre Channel connections

Key specifications

• Fiber Type: OS2 Single-mode (9/125 µm)
• Connectors: LC Duplex to LC Duplex
• Cable Length: 1 meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥50 dB
• Wavelengths: 1310nm, 1550nm
• Fiber Standard: G.657.A1 / G.652.D compatible
• Cable Diameter: 3.0 mm
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to 70°C
• Polarity: A-B (Crossed)
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces. Store in a clean, dry environment.
