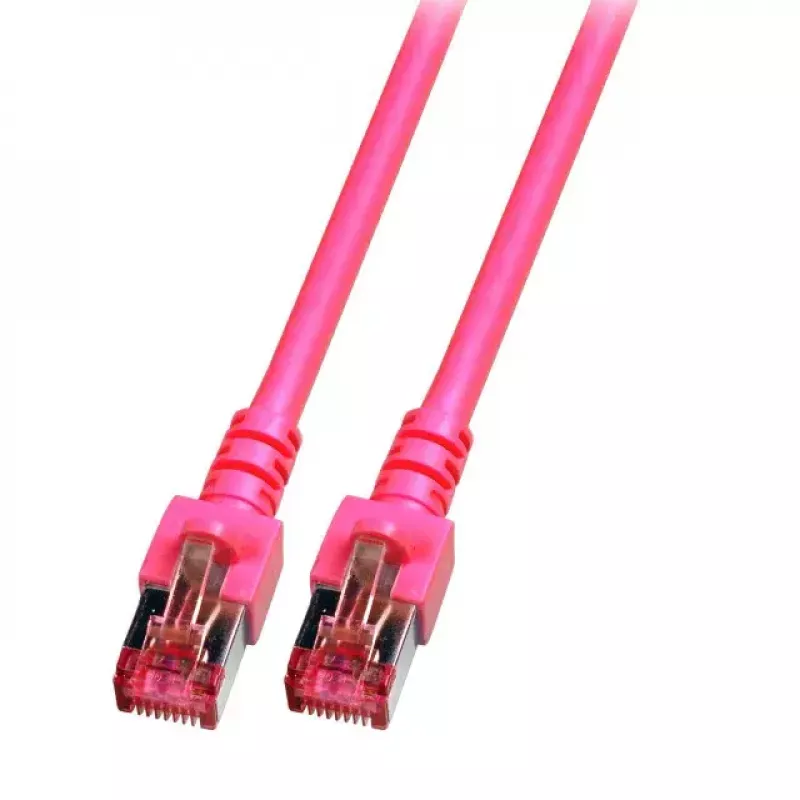

Cabo de rede EFB Elektronik K5519.30 RJ-45 Cat6 30 m magenta

1 Gigabit Ethernet Cat.6 250 MHz patch cable with two shielded RJ45 plugs (IEC 60603-7-5) designed for reliable wired network connections. The cable uses S/FTP construction with four twisted pairs (4 x 2) of AWG27/7 conductors and a PiMF (paired in metal foil) shielding, offering reduced crosstalk and improved signal integrity. It is coded to TIA/EIA 568B wiring standard and features a moulded strain relief boot with latch protection for secure connector retention.

Advantages

The Cat.6 cable supports gigabit Ethernet speeds and up to 250 MHz bandwidth, making it suitable for Ethernet networks, office connections, and structured cabling. Shielded RJ45 plugs and S/FTP construction provide enhanced protection against electromagnetic interference. Low-smoke, halogen-free (LSZH) jacket and compliance with flame retardant and emissions standards ensure safer use in indoor installations.

Key specifications

• Category: Cat.6
• Bandwidth: 250 MHz
• Data rate: 1 Gigabit Ethernet
• Connectors: 2 x RJ45 shielded (IEC 60603-7-5)
• Cabling: S/FTP, 4 x 2 x AWG27/7, PiMF
• Wiring code: TIA/EIA 568B
• Outer diameter: Ø=6.2 mm
• Jacket: LSZH (low smoke, halogen-free)
• Fire and emissions standards: IEC 60332-1, IEC 60754-2, IEC 61034
• Strain relief: Moulded boot with latch protection

How to use

Insert each RJ45 plug into the corresponding Ethernet port until the latch clicks. Follow the TIA/EIA 568B wiring orientation when terminating or verifying connections. Use the cable for linking switches, routers, computers, patch panels, or wall outlets in structured cabling systems. Avoid sharp bends and excessive pulling; maintain bend radius appropriate for a 6.2 mm cable to preserve signal performance.
