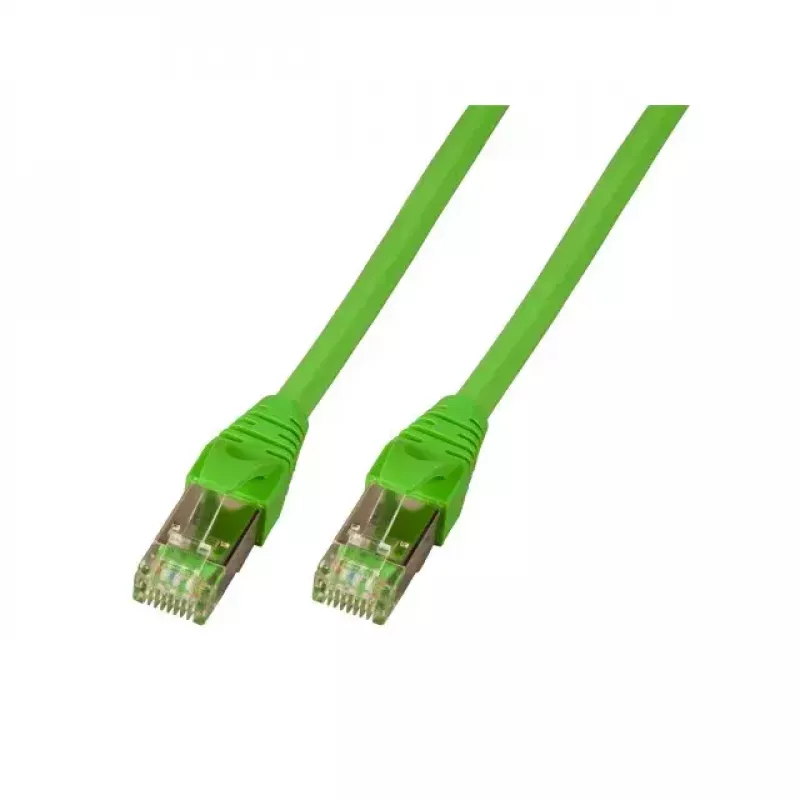

Cabo de rede EFB Elektronik K5530.30 verde 30 m Cat5e SF/UTP

The EFB Elektronik K5530.30 is a 30 m Cat5e SF/UTP networking cable with molded RJ45 plugs and a green PUR jacket. It provides shielded twisted-pair wiring (4 x 2 x AWG26/7) and 2 RJ45 connectors with 50 μ gold-plated contacts, designed for reliable data transmission and improved EMC performance across an extended temperature range of -40 °C to +80 °C.

Advantages

The cable features low impedance differential 360° shield contact for consistent signal integrity and good electromagnetic compatibility. Gold-plated contacts ensure reliable conductivity and a contact durability rating of at least 750 mating cycles. The moulded strain relief with latch protection and a robust PUR jacket (RAL6018) provide mechanical protection and resistance to environmental wear.

Suitable for

• Ethernet and network connections up to Cat5e performance
• Industrial and commercial environments requiring enhanced EMC
• Applications needing extended temperature range (-40 °C to +80 °C)
• Patch panels, switches, routers and industrial controllers with RJ45 ports

Key specifications

• Length: 30 m
• Cable type: SF/UTP Cat5e, 4 x 2 x AWG26/7
• Jacket material and color: PUR, RAL6018 (green)
• Overall diameter: Ø = 6.2 mm
• Connectors: 2 × RJ45, shielded, IEC 60603-7-3
• Contact plating: 50 μ gold
• Contact durability: min. 750 mating cycles
• Temperature range: -40 °C to +80 °C
• Flammability rating: UL94 V-2

How to use

Connect the moulded RJ45 plugs to the corresponding RJ45 ports on network devices such as switches, routers or controllers. Ensure the latch clicks into place to secure the connection; the moulded strain relief reduces stress at the connector. Route the cable to avoid sharp bends and mechanical pinch points to preserve the PUR jacket and internal shielding.

Recommendations

For optimal performance, use this Cat5e SF/UTP cable in installations where improved shielding and EMC are required. Avoid prolonged exposure to direct sunlight or chemical solvents to preserve the PUR jacket. Test connectivity after installation and replace the cable if contact wear approaches the specified durability limit.
