Cabo de rede EFB Elektronik K8452.3 RJ-45 Cat5e 3 m cinzento

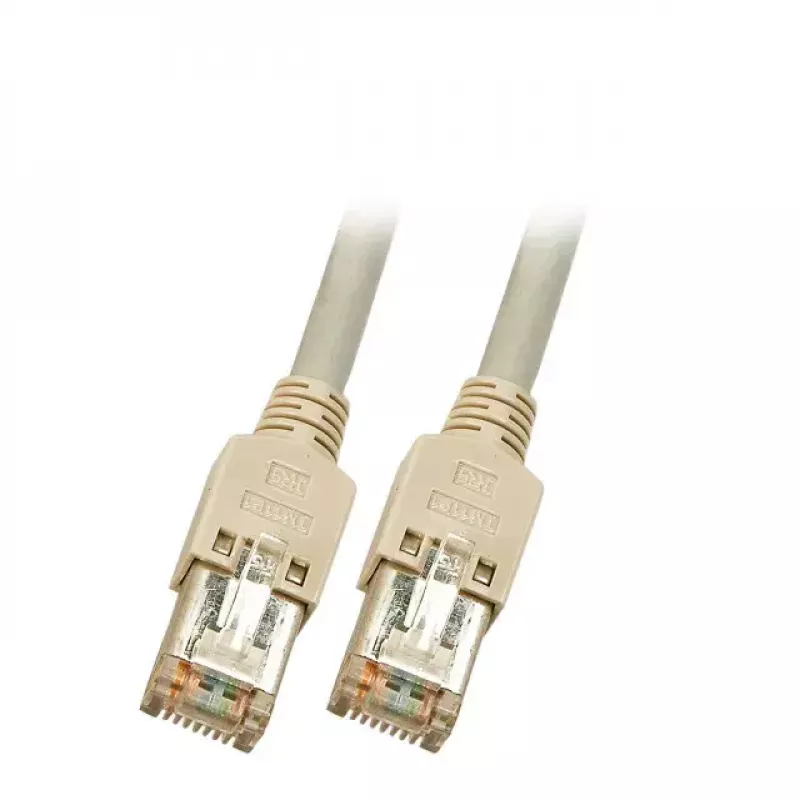

The EFB Elektronik K8452.3 is a 3 m Cat5e networking cable with F/UTP shielding and shielded Hirose TM11 RJ45 plugs (IEC 60603-7-3). It supports 10/100/1000Base-T(X) Gigabit Ethernet and uses TIA/EIA 568B coding. The cable has a foil shield around 4 twisted pairs (4 x 2 x AWG26/7) with a low-smoke halogen-free (LSZH) jacket and a diameter of approximately 5.4 mm. It meets flame-retardant and low-smoke standards (IEC 60332-1, IEC 60754-2, IEC 61034) and comes with a mounted strain relief boot without latch protection.

Advantages

F/UTP shielding and shielded RJ45 plugs reduce electromagnetic interference for stable Gigabit data transmission. The Cat5e specification and 10/100/1000Base-T(X) compatibility ensure reliable network performance for common LAN applications. LSZH outer jacket and compliance with flame-retardant and low-smoke standards improve safety in indoor installations. The pre-mounted strain relief boot provides mechanical protection at the connector end.

Suitable for

• Wired connections between PCs, switches and routers in home and office networks
• Patch panel to switch connections in structured cabling
• Short-range Gigabit Ethernet links where shielded cabling is required

Key specifications

• Length: 3 m
• Standard: Cat5e, 100 MHz
• Connectors: 2 x shielded Hirose TM11 RJ45 (IEC 60603-7-3)
• Cabling: F/UTP 4 x 2 x AWG26/7, foil shield
• Coding: TIA/EIA 568B
• Outer jacket: LSZH, Ø ≈ 5.4 mm
• Standards: IEC 60332-1, IEC 60754-2, IEC 61034
• Strain relief: mounted boot without latch protection
• Colour: Grey

How to use

Connect each RJ45 plug to the corresponding port on network devices (PC, switch, router, patch panel) following the TIA/EIA 568B wiring standard for compatibility. Route the cable avoiding sharp bends and sources of strong electromagnetic interference. Ensure connectors are fully inserted until the boot seats against the device to provide proper mechanical strain relief.

Recommendations

Use this shielded Cat5e patch cable for indoor Ethernet installations where reduced electromagnetic interference and low-smoke halogen-free materials are required; avoid outdoor exposure and prolonged mechanical stress on the connectors.
