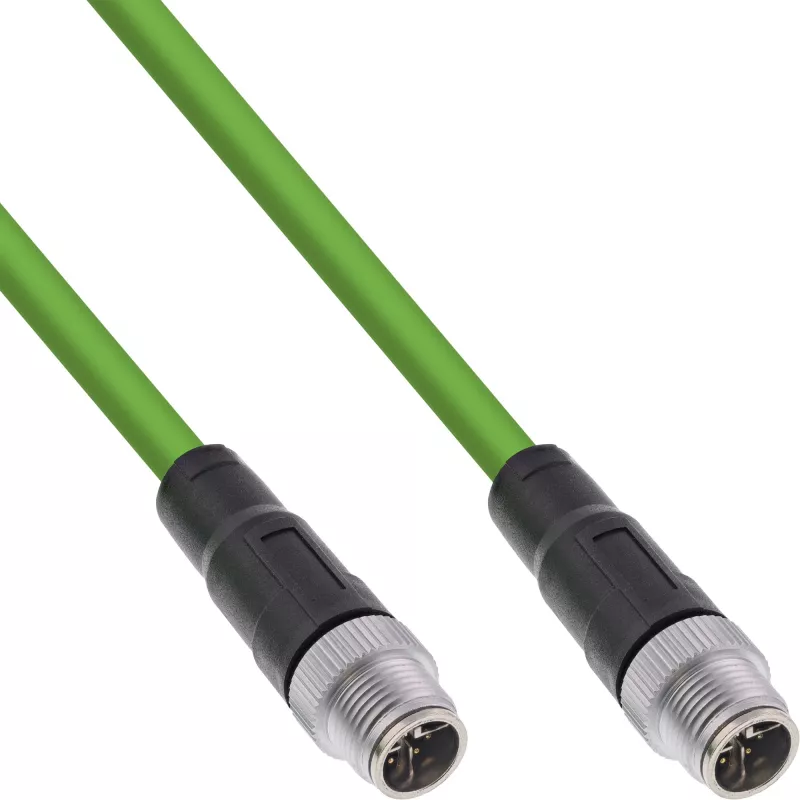

Cabo de rede industrial InLine, M12 8 pinos codificação X macho/macho, Cat.6A PUR 3m

High-quality industrial network cable with X-coded CAT6A performancefor data rates of up to 10 Gbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and humid environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 8-pin X-coded plug/connector, Cat.6A, PURhas been specially developed for industrial applications that require high data transmission rates and a robust connection. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With Cat.6A performance, the cable enables transmission rates of up to 10 Gbit/s, which ensures stable and fast communication.
Whether for use in production plants, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant

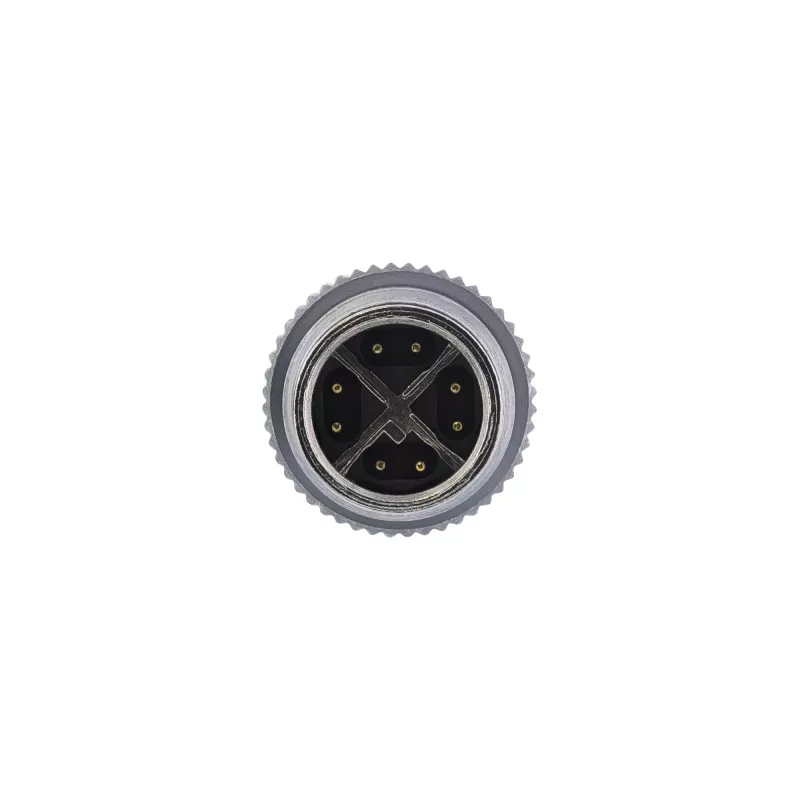

Connector type: M12 8-pin X-coded (IP67) to M12 8-pin D-coded (IP67)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

InLine Industrial network cable, M12 8-pin X-coded male/male, Cat.6A PUR 3m. Cable length: 3 m, Connector 1: M12, Connector 2: M12. Package width: 200 mm, Package depth: 260 mm, Package height: 25 mm

How to use

Verify that both devices use M12 X-coded 8-pin interfaces and power down equipment if recommended by the device manufacturers. Align and screw the male M12 connectors firmly into the corresponding female ports to ensure a secure, threaded connection. Route the cable to avoid sharp bends and mechanical stress; maintain recommended bend radii for PUR cables. After connection, power up the system and verify link/activity LEDs or network diagnostics to confirm proper communication.

Recommendations

Use this cable where a shielded, industrial-grade Cat.6A connection is required. Avoid prolonged exposure to strong UV, excessive heat above the jacket rating, or aggressive chemicals not compatible with PUR. For dynamic or drag-chain applications verify the cable’s mechanical specifications and consult the device manuals for installation guidance.
