Cabo de rede InLine 76204D ficha RJ-45 / LSA reta 8,5 mm

Field assembly without special tools:Fast and flexible installation directly on site.
Universally applicable:Compatible with Cat.5e, Cat.6, Cat.6A and Cat.7/7A installation and patch cables.
For high data rates up to 10 Gb/s:Ideal for high-performance networks and modern applications.
Rugged full metal housing:For long-lasting use in professional installation environments.
PoE++-compliant:Also supports high-performance Power over Ethernet applications.

The InLine® RJ45 plug Cat.6A 500MHz is the ideal solution for professional network installations where flexibility, reliability and high transmission rates are required. The field-attachable plug enables simple installation directly on site - without the need for special tools. It is suitable for both installation cables with solid conductors and flexible patch cables with multi-wire conductors.The robust die-cast zinc housing reliably protects the sensitive electronics from external influences. The connector fulfils the requirements of category 6A in accordance with ISO/IEC 11801 and thus enables transmission rates of up to 10 Gb/s. It also supports modern PoE standards (PoE, PoE+, PoE++), enabling power-hungry devices such as access points or IP cameras to be supplied via the network cable.

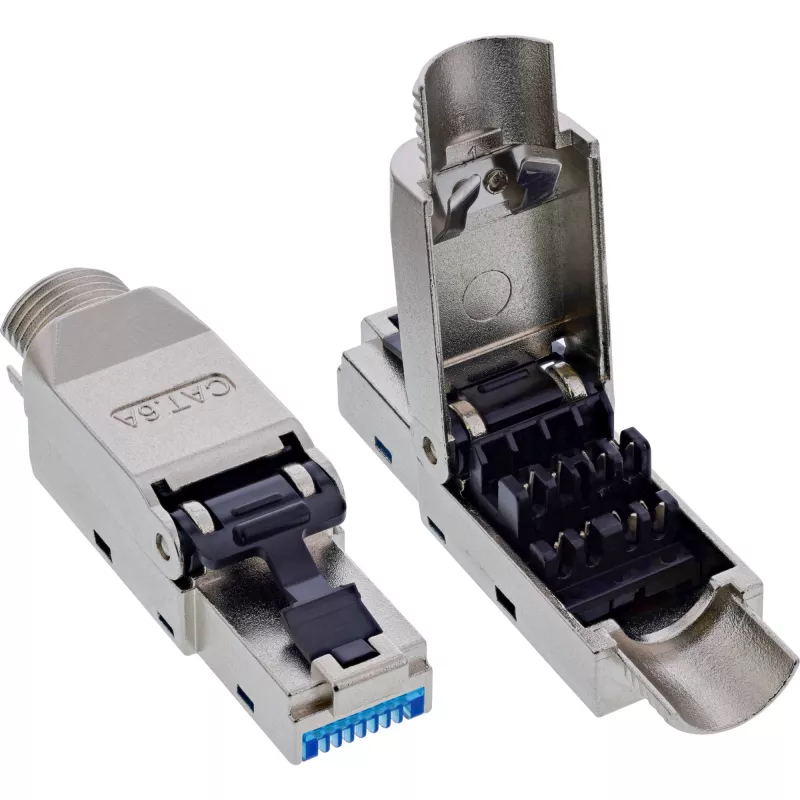

Thanks to the integrated LSA terminals, installation is quick, safe and permanently reliable. The RJ45 plug is a time-saving and future-proof component for IT specialists, system houses and industrial users.

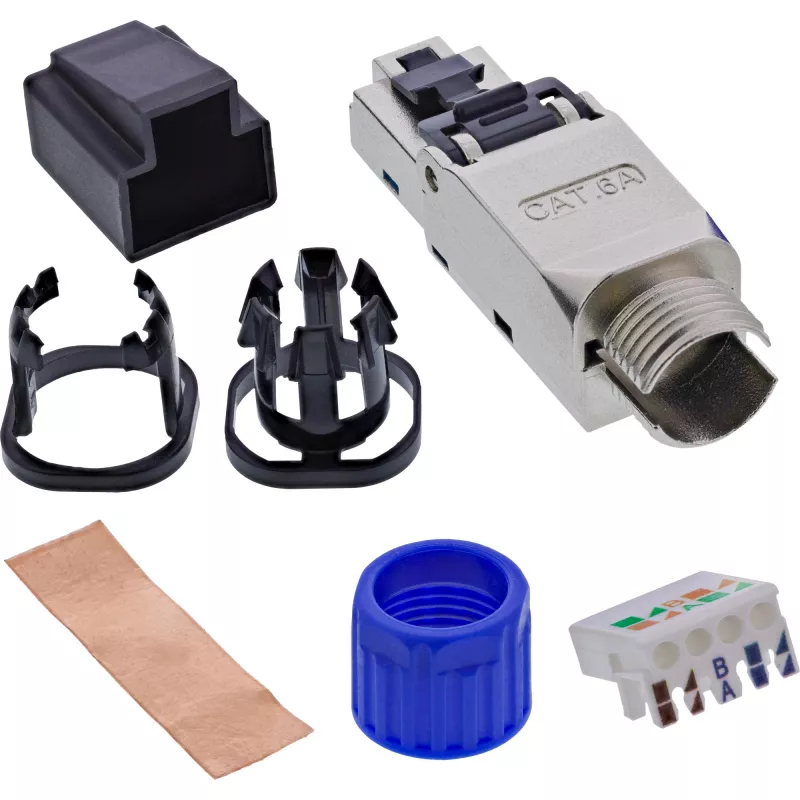

Cable kink protection made from plastic
For solid wire AWG26/1 to AWG22/1 (0.4 mm to 0.65 mm)
For flexible wires AWG26/7 to AWG22/7 (1.1 mm to 1.6 mm)

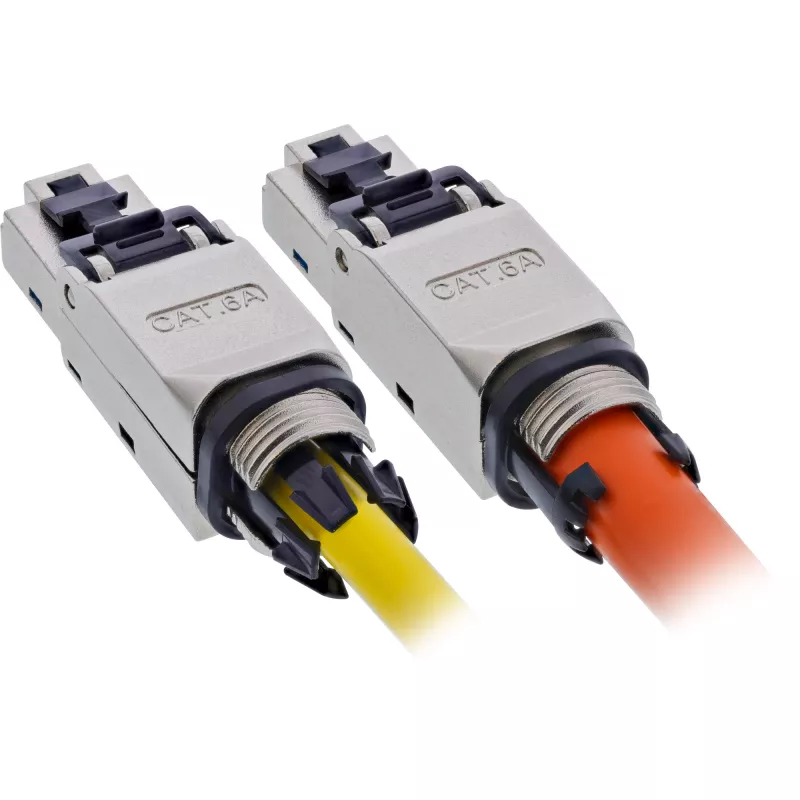

For cable outer diameters from 6 mm to 8.5 mm
Lifetime > 750 mating cycles

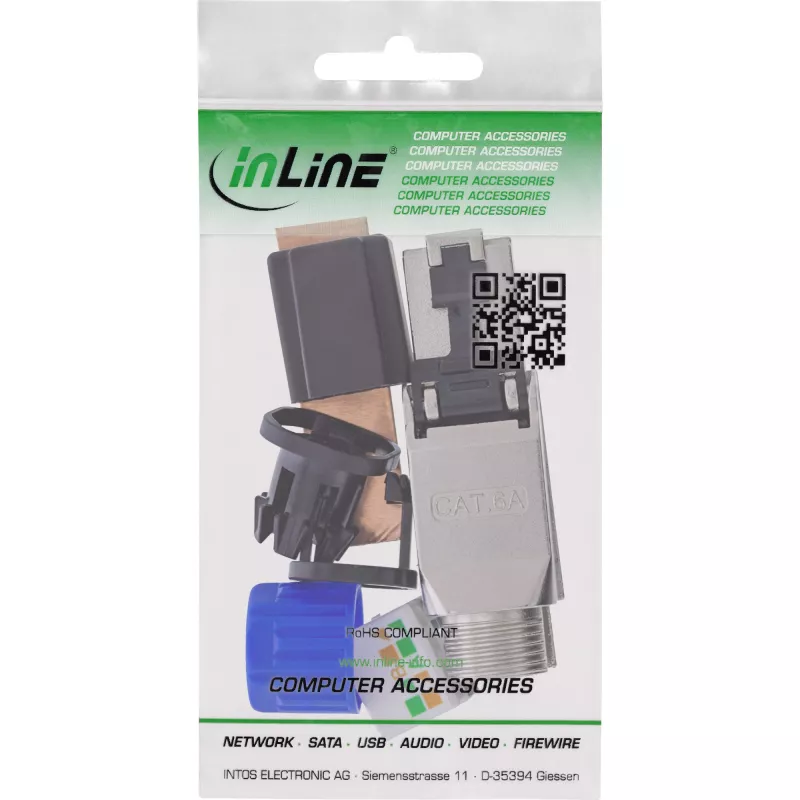

InLine 76204D. Product colour: Zinc, Connector contacts plating: Gold, AWG wire size: 26/1-22/1, 26/7 - 22/7. Width: 16 mm, Depth: 57 mm, Height: 15 mm. Package volume: 200 cm³, Package type: Polybag, Package width: 70 mm. Quantity per pack: 1 pc(s). Country of origin: Taiwan

How to use

Prepare the cable by stripping the jacket to expose conductors and maintain shielding continuity where applicable. Insert conductors into the RJ45/LSA contacts following the correct wiring scheme and ensure the shield is connected to the plug housing. Crimp or assemble the plug according to the manufacturer's field-assembly instructions to secure conductors and shielding. After assembly, verify the connector by testing continuity and network performance up to the intended data rate.

Recommendations

Use appropriate cable preparation tools and test equipment to ensure reliable terminations. Match the plug to the cable diameter (8.5 mm) and conductor type, and perform post-assembly testing (continuity and certification testing when required) to confirm performance up to 10 Gb/s.
