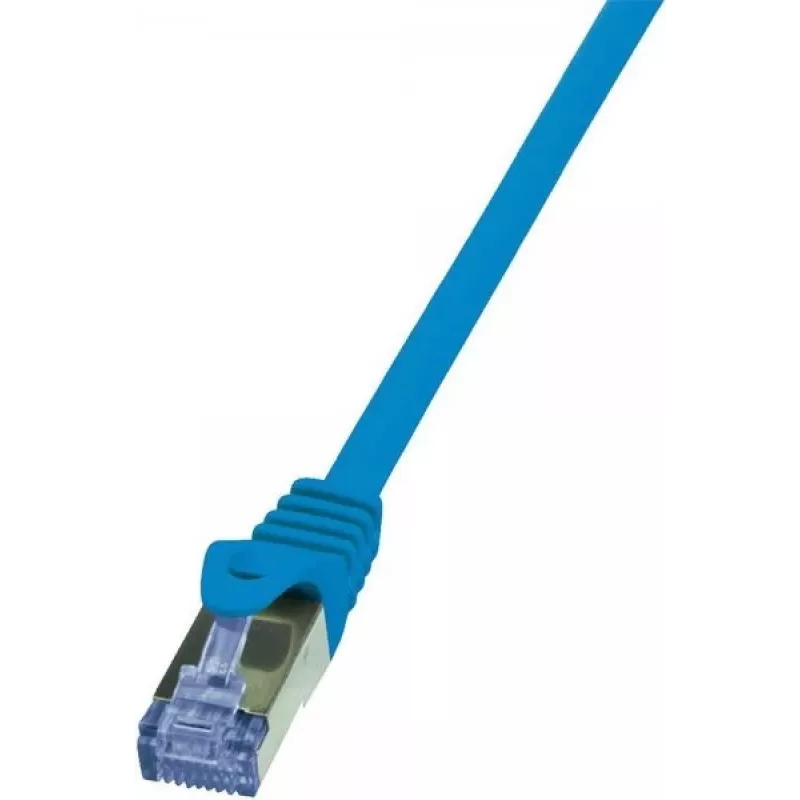

Cabo de rede LogiLink 0,5 m Cat.6A RJ-45 S/FTP azul

LogiLink 0.5m Cat.6A RJ-45 S/FTP blue patch cable provides 10G-capable wired connectivity for short-distance links. The 0.5 m cable uses RJ45 connectors and S/FTP (shielded foiled twisted pair with overall braid) construction with bare copper conductors and AWG 26/7 strands. The LSZH (low smoke zero halogen) jacket reduces toxic emissions in case of fire and the cable meets ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 standards.

Advantages

The S/FTP shielding and PIMF (pairs in metal foil) design minimise electromagnetic interference and crosstalk, supporting stable 10 Gbps performance for short runs. AWG 26/7 stranded copper conductors ensure flexible handling while maintaining reliable signal transmission. The LSZH jacket adds safety in confined or public spaces by limiting smoke and halogen release.

Suitable for

• Short-distance 10G connections between switches, patch panels and servers
• Office and data center patching where shielded cabling is required
• Environments needing low-smoke, zero-halogen materials

Key specifications

• Length: 0.5 m
• Category: Cat.6A (10G)
• Topology: S/FTP (PIMF)
• Conductor: bare copper, AWG 26/7
• Connectors: RJ-45 – RJ-45
• Jacket: LSZH
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
• Colour: Blue
• Weight: 20 g

How to use

Connect one RJ‑45 end to your network device (switch, router, patch panel or NIC) and the other end to the corresponding port. Ensure both ends are fully inserted until the connector latch clicks. For best performance keep cable runs within recommended lengths for patch cords and avoid tight bends or compression at connector ends.

Recommendations

Use this 0.5 m Cat.6A S/FTP patch cable for short patching in shielded installations; pair it with properly grounded equipment and shielding-aware patch panels to maintain EMI protection. Avoid stretching the cable and maintain minimum bend radius to preserve signal quality.
