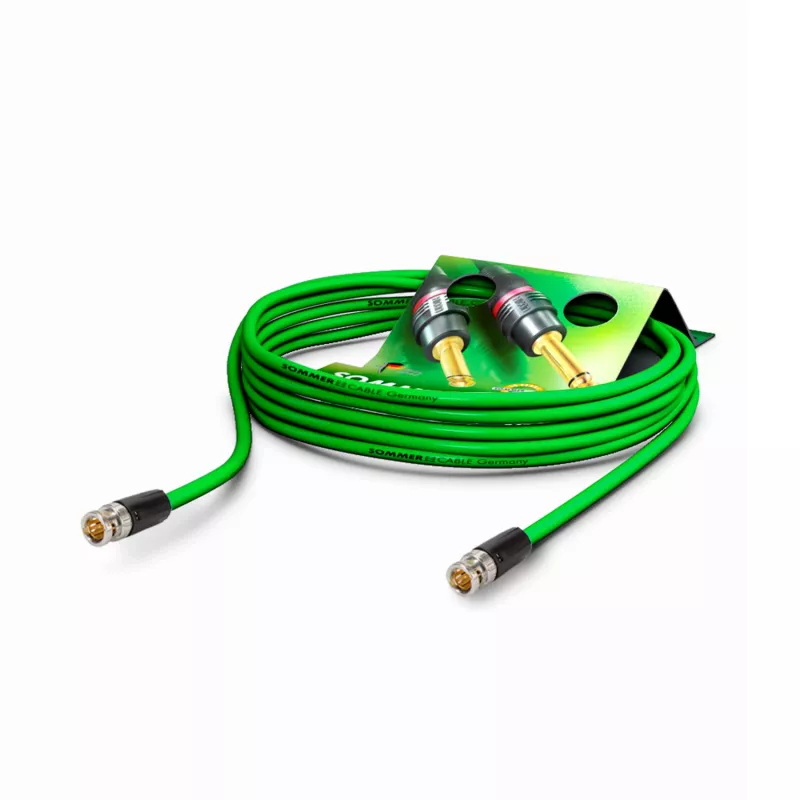

Cabo de vídeo patch Sommer Cable SC-Slimline (RCB) 75 Ω, ficha BNC para ficha BNC, NEUTRIK, verde, 0,3 m (SNGR-0030-GN-SW)

The Sommer Cable SC-Slimline RCB BNC Patch Cable is a high-performance coaxial cable designed for professional digital video and data transmission. With a length of 0.5 meters and equipped with 75 Ohm BNC male connectors on both ends, this cable is ideal for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI applications. Its slimline design and double shielding ensure excellent signal integrity and flexibility in tight spaces.

Advantages

This cable offers superior signal quality with low attenuation and high return loss, making it suitable for demanding broadcast and AV environments. The gold-plated center pin and nickel-plated body provide reliable connectivity and corrosion resistance. The gas-foamed polyethylene dielectric and double shielding (copper braid + AL/PT foil) minimize signal loss and interference.

Suitable for

• HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI video transmission
• Digital video and data applications
• Broadcast studios, production trucks, and AV installations
• Connecting cameras, monitors, routers, and other BNC-equipped devices

Key specifications

• Cable Type: SC-Slimline RCB Coaxial Cable
• Connector Type: BNC Male (75 Ohm) on both ends
• Cable Length: 0.5 m
• Impedance: 75 Ω
• Conductor Material: Solid Bare Copper (0.6 mm)
• Dielectric: Gas-foamed Polyethylene (2.8 mm)
• Shielding: Double Shielded (Copper Braid + AL/PT Foil)
• Outer Jacket: PVC, Black, 4.5 mm diameter
• Attenuation (100m @ 200MHz): ~10.5 dB
• Attenuation (100m @ 1GHz): ~25.5 dB
• Attenuation (100m @ 3GHz): ~45.0 dB
• Return Loss (up to 3GHz): >20 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, use this cable with 75 Ohm BNC connectors and avoid sharp bends or kinks. Suitable for indoor use only. Pair with Sommer Cable patch panels or bulk cable for custom installations.
