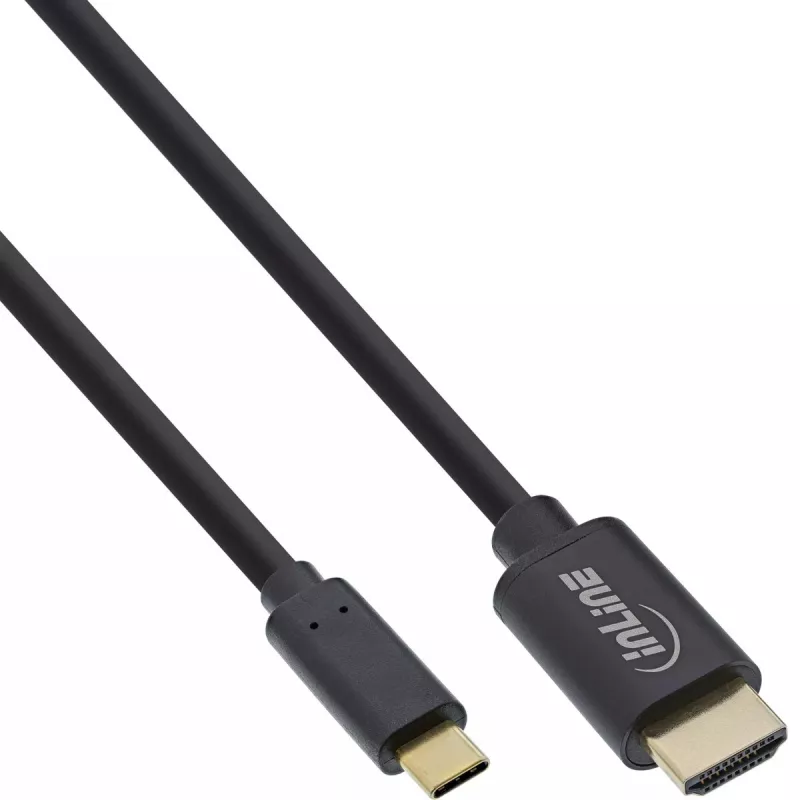

Cabo de visualização USB InLine 64111 ficha USB-C para ficha HDMI 1 m

The InLine USB display cable 64111 is a 1 m connection cable with a USB Type-C male connector on one end and an HDMI A male connector on the other. It converts a USB-C DisplayPort Alternate Mode or Thunderbolt 3 video output to an HDMI display input, transmitting both video and audio signals. The cable features a black anodised aluminium housing with gold-plated contacts and uses the LT8711EH-C chipset for signal conversion. It is USB powered and requires no external power supply; the plug-and-play design works with modern Windows and macOS systems.

Advantages

High-quality metal plugs with gold-plated contacts ensure stable signal transfer and corrosion resistance. The cable supports up to 3840 x 2160 at 60 Hz with full RGB and YCbCr 4:4:4 color sampling and is compatible with HDMI 2.0, VESA DisplayPort 1.2 and USB 3.1 standards. It supports 3D formats and HDCP 2.2/1.4 for protected content and works with computers that provide DisplayPort Alternate Mode over USB-C or have Thunderbolt 3 ports. No external power is required and the cable operates via plug & play.

Suitable for

• Connecting USB-C laptops, tablets or smartphones to HDMI monitors and TVs
• Presentations and office work with external displays
• Streaming video and playback of 4K content at 60 Hz
• Casual gaming on HDMI displays

Key specifications

• Connectors: USB Type-C (male) to HDMI A (male)
• Cable length: 1 m
• Colour: Black with anodised aluminium plug
• Maximum resolution: 3840 x 2160 @ 60 Hz (RGB, YCbCr 4:4:4)
• Standards: HDMI 2.0, VESA DisplayPort 1.2, USB 3.1
• HDCP: 2.2 and 1.4 compatible
• Chipset: LT8711EH-C
• Power: USB powered, no external power supply required
• Compatibility: Supports Thunderbolt 3

How to use

Connect the USB Type-C plug to a computer or device that supports DisplayPort Alternate Mode over USB-C or to a Thunderbolt 3 port. Insert the HDMI plug into the HDMI input of the monitor, TV or projector. The cable transmits audio and video automatically; select the external display as an output device in the operating system if necessary. No drivers or external power are required for standard operation.

Recommendations

Ensure the USB-C port on your device supports DisplayPort Alternate Mode (often indicated by a DisplayPort logo next to the port). For protected 4K content, confirm both source and display support HDCP 2.2. Avoid tight bends near the connectors to preserve cable integrity.
