Cabo DisplayPort ACT AK4172 20 m preto

Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
60 meses
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
Cabo DisplayPort ACT AK4172 20 m preto
181,56 €
PDF
PDF
Stock 8 Código 2529009 Modelo AK4172 Garantia 5 anos

Envios e devoluções

Entrega prevista segunda-feira, 14 de dezembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardApple PayGoogle PayTransferência bancária

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

The ACT AOC 8K DisplayPort 2.1 DP40 UHBR10 cable is made of copper and fiber to connect different devices over long distances up to 100 meters without the loss of data. The Active Optical Cable has a bandwidth of 40Gbps 4:4:4 to handle the resolution of 7680x4320 (8K) @ 60Hz. Additionally, the cable supports: HDR, HDCP 2.2, EDID, Multi-channel audio, Dolby True HD and DTS-HD Master Audio.

AOC: copper and glass for longer distances and the best video and audio quality
The AOC (Active Optical Cable) cable is made of copper and fiber for transferring 8K @ 60Hz over long distances up to 100m without data loss. It has a bandwidth of 40Gbps 4:4:4, also called UHBR10 DP 40.

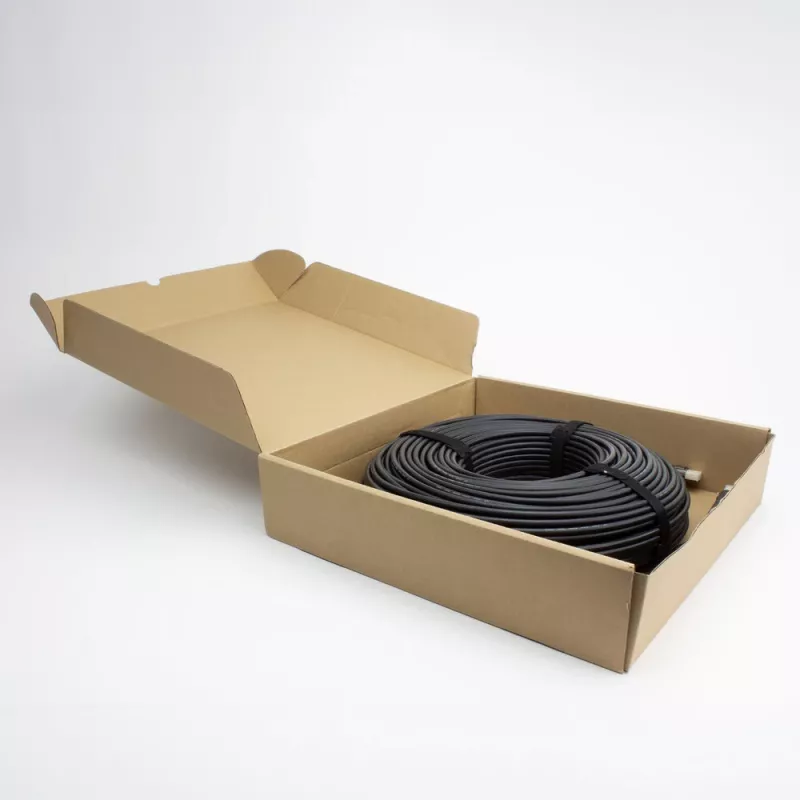

The cable has a Kevlar protected fiber, an aluminium foiled shielding and is suitable for sensitive applications due to low RFI/EMI. The cable is supplied in a box.

No additional power is needed. The cable supports 3.3V over the full length.

Resolution of 8K @ 60Hz
This 8K DisplayPort cable supports a resolution of 7680x4320 @ 60Hz. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, HDCP 2.2, EDID, Multi-channel audio, Dolby True HD, and DTS-HD Master Audio.

LSZH

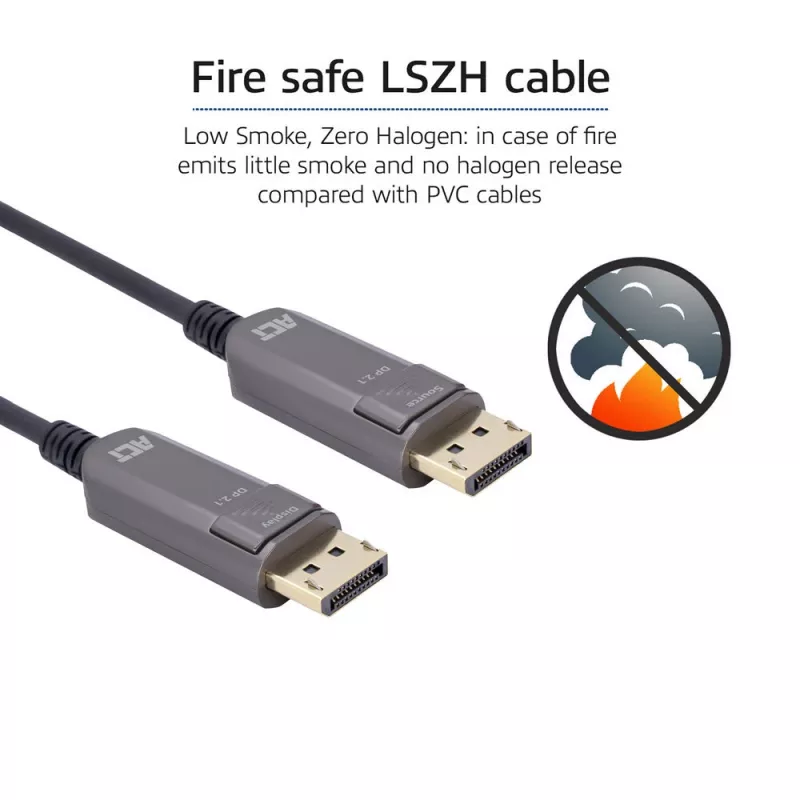

The cable has a LSZH (Low Smoke Zero Halogen) cable jacket that reduces the risk of high concentrations of toxic gases in case the cable is damaged due to fire or short circuit.

Additional features

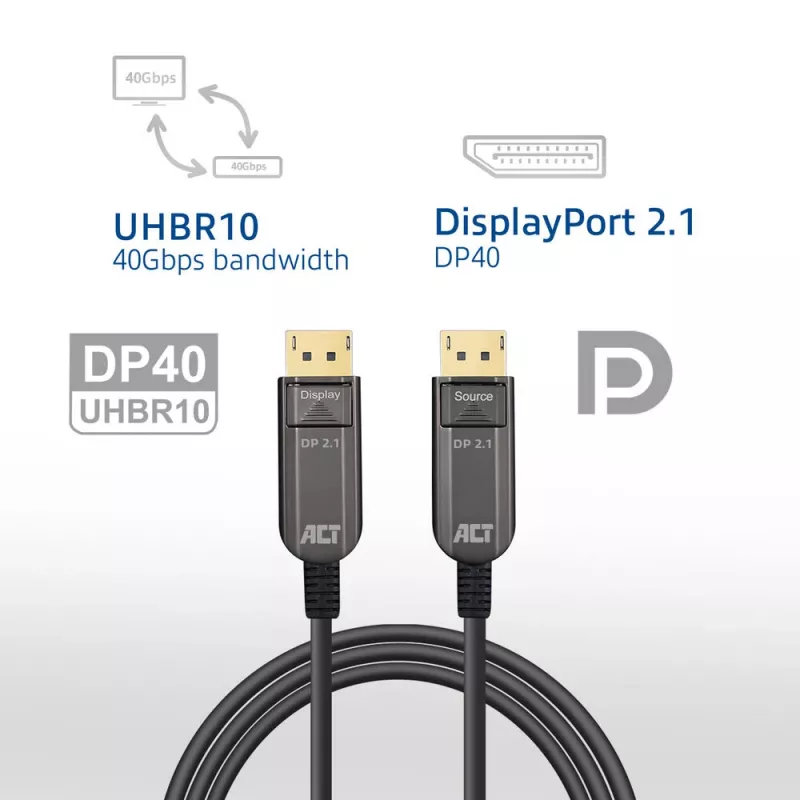

It is important that the cable is connected correctly. The ACT AOC DisplayPort 2.1 cable is marked to ensure easy identification of the source and display connector. The snap-in connector ensures a reliable connection without the risk of accidental disconnection.

User scenarios

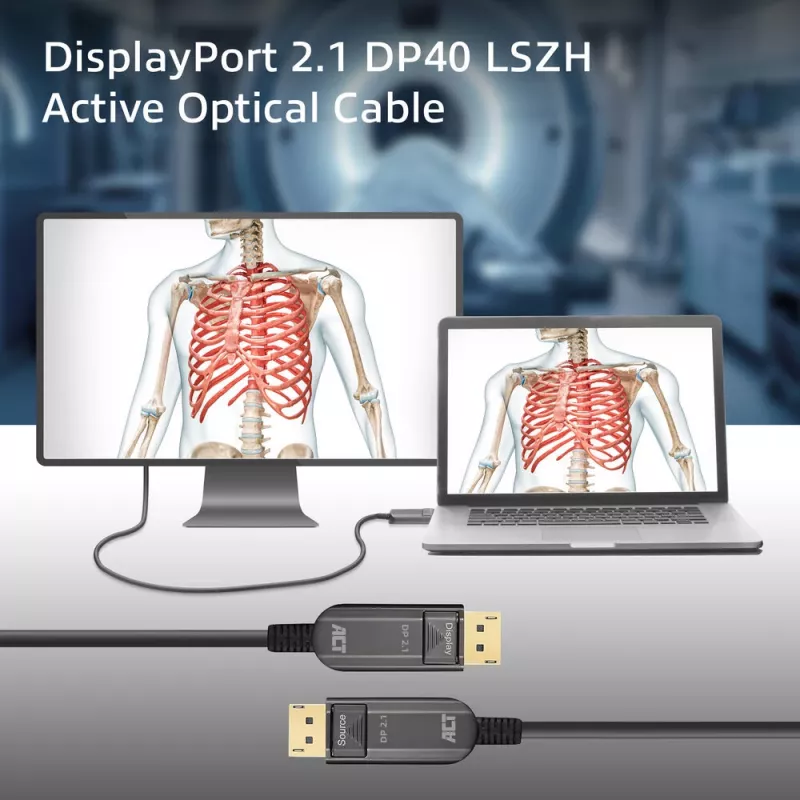

Medical applications: High-resolution imaging is critical in radiology for detailed diagnosis. The 8K DisplayPort 2.1 DP40 UHBR10 cable is used to connect imaging equipment to large displays. The low RFI/EMI minimizes interference with sensitive medical devices.

Nautical applications: The vessel's bridge uses high-definition displays for navigation, radar, and other critical systems. Facilitates connections between equipment located in different parts of the vessel without signal loss. The Kevlar protected fiber offers durability and reliability in harsh marine environments.

Data center applications: Data centers require high-resolution displays for monitoring system performance and security. The LSZH jacket ensures safety by reducing toxic gas emissions in case of a fire.

Educational applications in lecture halls and auditoriums: Provides clear and detailed visuals for large audiences. Long Distance Capability: Enables connection from the control room to displays across large spaces.

Corporate applications in meeting rooms and conference centers: Executive meeting rooms and conference centers require high-definition displays for video conferencing, presentations, and collaborative work.

How to use

Connect the DisplayPort male connector labelled for the source to the source device and the other end to the display. Ensure connectors are fully seated until the snap-in latch engages to avoid accidental disconnection. No external power supply is required; the cable carries 3.3 V over its full length. Use appropriate routing and strain relief for long runs and secure the cable to prevent sharp bends that could damage the fiber core.

Recommendations

For reliable 8K video and multichannel audio over long distances, use the ACT AK4172 with correctly matched DisplayPort 2.1 source and display devices, avoid tight bends, and secure connectors to maintain a stable, interference-free connection.

Destaques principais
  • High-resolution displays and professional imaging workstations
  • Long-distance connections between control rooms and displays in auditoriums or lecture halls
  • Medical imaging systems and other sensitive equipment requiring low RFI/EMI
  • Maritime navigation and bridge systems where durability and long runs are needed
  • Data centre monitoring and corporate meeting rooms with 8K-capable sources and displays
  • Cable length: 20 m (available up to 100 m)
  • Connector type: DisplayPort male to DisplayPort male
  • DisplayPort version: 2.1 (DP40 UHBR10)
  • Bandwidth: 40 Gbps 4:4:4
  • Maximum supported resolution: 7680×4320 @ 60 Hz
  • Supported features: HDR, HDCP 2.2, EDID, multichannel audio, Dolby TrueHD, DTS-HD Master Audio
  • Jacket: Low Smoke Zero Halogen (LSZH)
  • Construction: Hybrid copper and optical fiber with Kevlar protection and aluminium foil shielding
  • Cable diameter: approx. 5.2 mm
  • Colour: Black
  • Confirm both source and display support DisplayPort 2.1 features and the intended 8K@60Hz resolution
  • Determine the required cable length; the product is 20 m but longer lengths are available up to 100 m
  • Verify installation environment requirements for LSZH jacket and low RFI/EMI
  • Assess whether an active optical cable is necessary compared with passive copper solutions for short runs

Especificações

Especificações
Blindagem do cabo
Folha de Mylar de alumínio
Blindagem magnética
Sim
Comprimento do cabo
20 m
Conector 1
DisplayPort
Conector 2
DisplayPort
Conectores com travamento
Sim
Cor do produto
Preto
Diâmetro do cabo
5.2 mm
Digitalização a cores
4:4:4
Formato do conector 1
Reto
Formato do conector 2
Reto
Género do conector 1
Macho
Género do conector 2
Macho
HDCP
Sim
Material da bainha
Baixa emissão de fumos, sem halogéneos (LSZH)
Material do cabo
Fibra ótica/cobre
Modos de vídeo suportados
2160p, 4320p
Não contém
Halógena
Quantidade por embalagem
1 pc(s)
Resolução máxima
7680 x 4320 píxeis
Resoluções gráficas suportadas
3840 x 2160, 7680 x 4320
Taxa de atualização máxima
144 Hz
Taxa de transferência de dados
40 Gbit/s
Tecnologias Dolby
DTS-HD Master Audio, Dolby TrueHD
Tipo de cabo
Cabo redondo
Tipo de embalagem
Caixa
Versão DisplayPort
2.1
Versão HDCP
2.2

Folheto

Abrir documento
