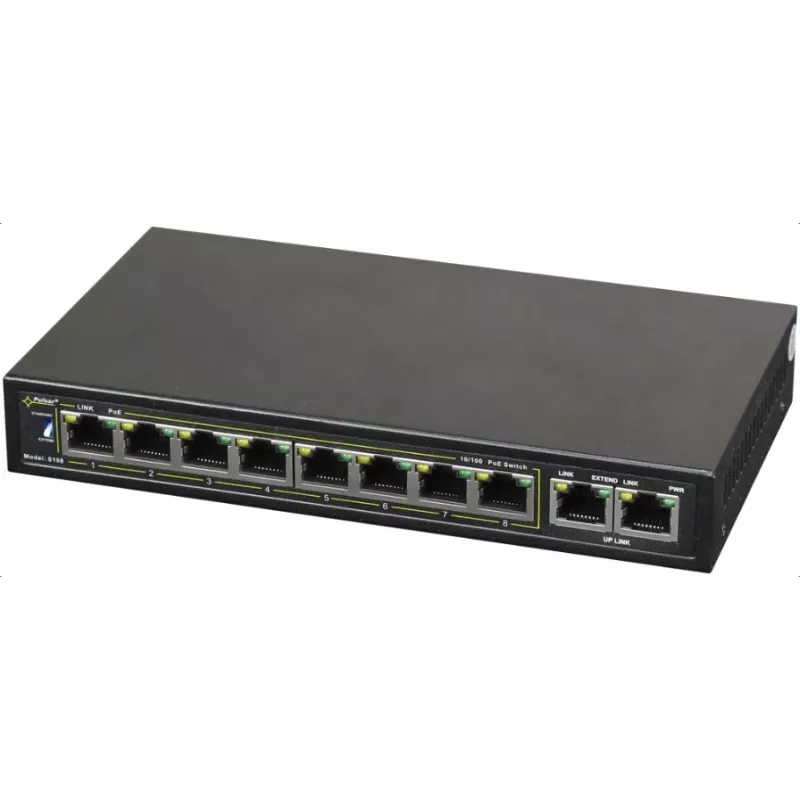

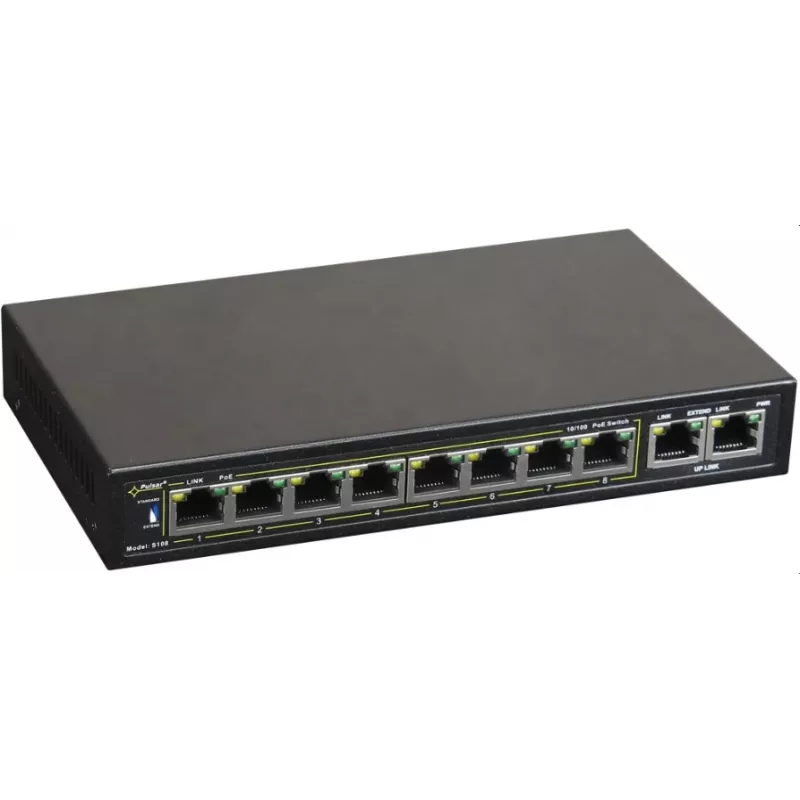

Switch de rede PULSAR S108 Fast Ethernet Power over Ethernet

The PULSAR S108 Fast Ethernet Power over Ethernet network switch provides 10 RJ-45 ports with Fast Ethernet (10/100) performance and integrated PoE support. Designed to supply power to compatible devices, the switch supports IEEE 802.3af and 802.3at standards on ports 1–8 with automatic detection of PoE and PoE+ devices. An uplink RJ-45 port allows simple connection to another network device. Front-panel LEDs indicate link, activity and PoE status for quick diagnosis. The switch accepts a 52 V DC input and is assembled in a compact black housing suitable for racks or desktop placement.

Advantages

The PULSAR S108 combines Ethernet switching and PoE power delivery in a single device, reducing cabling and installation complexity for IP devices. Compliance with IEEE 802.3, 802.3u, 802.3x, 802.3af and 802.3at ensures interoperability with a wide range of network equipment. A MAC address table with 1000 entries supports basic traffic forwarding in small to medium installations, while front-panel LEDs give immediate status feedback. The integrated PoE feature enables powering IP cameras, VoIP phones and wireless access points without separate power supplies.

Suitable for

• Supplying and connecting IP cameras in surveillance systems
• Powering VoIP phones and small office telephony equipment
• Connecting wireless access points and small Wi‑Fi deployments
• Expanding network capacity in small offices or retail environments

Key specifications

• Port count: 10 RJ-45 Fast Ethernet (10/100) ports
• PoE support: IEEE 802.3af and IEEE 802.3at on ports 1–8 with auto detection
• Uplink: dedicated RJ-45 uplink port for connection to other network devices
• MAC table size: 1000 entries
• Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Power input: DC 52 V
• Weight: 1.2 kg
• Color: black

How to use

Install the PULSAR S108 on a stable surface or mount it in a rack if suitable. Connect the switch to your network using the uplink RJ-45 port to an upstream router or switch. Plug compatible PoE devices into ports 1–8; the switch will automatically detect and supply power to devices that conform to IEEE 802.3af/at. Use the front-panel LEDs to verify link status and PoE activity. Connect non-PoE devices to any remaining ports. Ensure the 52 V DC power adapter is securely connected and rated for the expected PoE load before powering the device.

Recommendations

Place the switch in a ventilated area and avoid covering vents. Calculate total PoE power requirements of connected devices to ensure the switch and its power supply can support the load. For surveillance and VoIP deployments, use shielded or well-rated Ethernet cabling (CAT5e or better) and test connections after installation to confirm power delivery and network connectivity.
