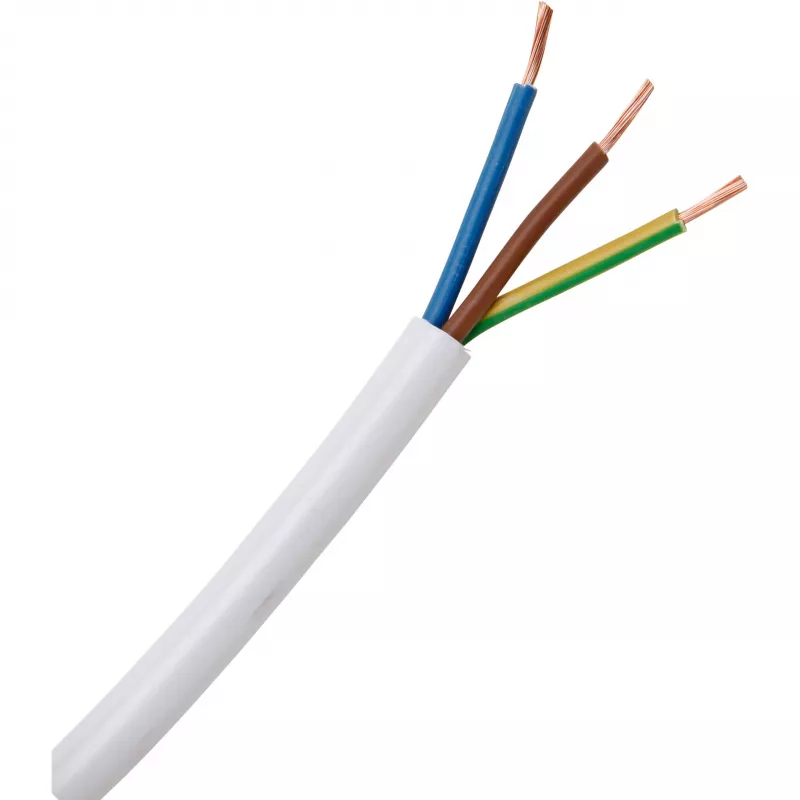

Cabo flexível de PVC branco Heinrich Kopp H03VV-F 3G0,75 mm² 25 m 151625006

Flexible PVC cable for light-duty indoor applications. This 25 m white cable with three 0.75 mm² conductors is suitable for connecting small appliances and lamps where a lightweight, easy-to-route cable is needed.

Who is it for

Electricians, installers, and DIY users who need a standard flexible cable for indoor wiring of low-power devices.

Main features

• H03VV-F harmonized designation
• 3 cores, 0.75 mm² cross-section
• White PVC jacket
• Length: 25 m

Specifications

• Cable type: H03VV-F
• Number of cores: 3
• Conductor cross-section: 0.75 mm²
• Cable length: 25 m
• Sheath material: PVC
• Insulation material: PVC
• Conductor material: bare copper
• Conductor construction: fine-stranded, Class 5 according to IEC 60228
• Rated voltage: 300/300 V
• Test voltage: 2000 V
• Outer diameter: 5.8 mm
• Colour: white
• Temperature range (fixed installation): -30°C to +70°C
• Temperature range (flexible use): -5°C to +70°C
• Max. conductor temperature: +70°C
• Minimum bending radius (fixed): 4 x outer diameter
• Minimum bending radius (flexible): 10 x outer diameter
• Flame retardancy: self-extinguishing, according to IEC 60332-1-2
• Harmonized standard: EN 50525-2-11
• Approvals: VDE

Tips

For fixed installation, keep the bending radius at least 4 times the outer diameter; for flexible use, allow 10 times.
