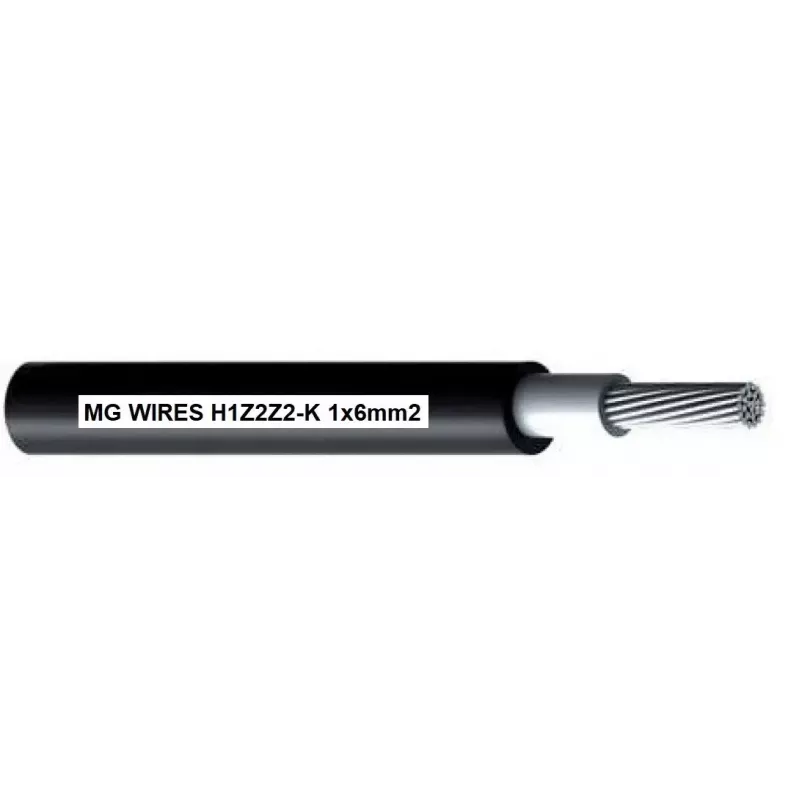

Cabo fotovoltaico MG H1Z2Z2-K 6mm² preto 50m

The MG H1Z2Z2-K 6mm² photovoltaic cable is a high-quality, single-core solar cable designed for reliable and safe energy transmission in photovoltaic systems. With a cross-section of 6 mm² and a length of 50 meters, this black cable meets the EN 50618 standard, ensuring excellent performance under demanding conditions.

Advantages

This solar cable offers outstanding UV and ozone resistance, making it ideal for outdoor installations. It is halogen-free, flame retardant, and emits low smoke, enhancing safety in case of fire. The tinned copper conductor provides excellent conductivity and corrosion resistance, while the cross-linked polyethylene (XLPE) insulation and sheath ensure durability over a wide temperature range.

Suitable for

• Solar power systems and photovoltaic installations
• Connecting solar panels to inverters and combiner boxes
• Outdoor and indoor DC wiring in PV systems

Key specifications

• Cable type: Photovoltaic (Solar) Cable
• Standard: EN 50618 / H1Z2Z2-K
• Conductor: Tinned copper, 6 mm²
• Number of cores: 1
• Rated voltage AC: 0.6/1 kV
• Maximum DC voltage: 1.8 kV
• Insulation: Halogen-free cross-linked polyethylene (XLPE)
• Sheath: Halogen-free cross-linked polyethylene (XLPE)
• Outer diameter: approx. 6.0 - 7.0 mm
• Colour: Black
• Length: 50 m
• Operating temperature (fixed): -40°C to +90°C
• Max. conductor temperature: +120°C
• Flame retardant: Yes (IEC 60332-1-2)
• Halogen-free: Yes (IEC 60754-1/2)
• Low smoke emission: Yes (IEC 61034-2)

Recommendations

For optimal performance, ensure proper cable sizing and installation according to local electrical codes. This cable is suitable for both residential and commercial PV systems.
