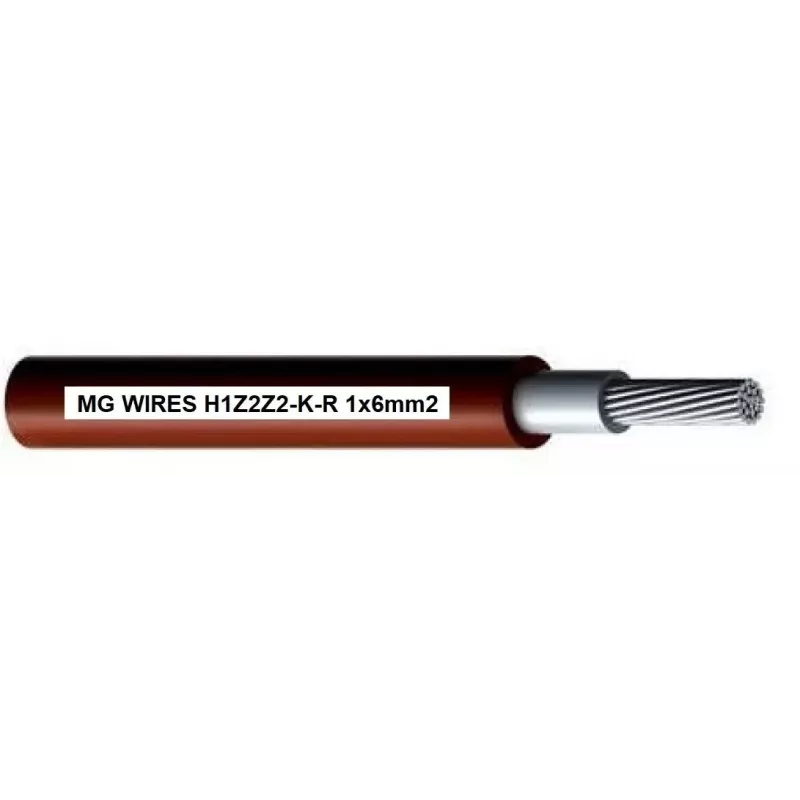

Cabo fotovoltaico MG H1Z2Z2-K-R-6MM2/50M 6mm² vermelho 50m

The MG H1Z2Z2-K-R-6MM2/50M is a high-quality photovoltaic (PV) cable designed for solar energy systems. With a cross-section of 6 mm² and a length of 50 meters, this red cable is compliant with EN 50618 (H1Z2Z2-K) standard, ensuring reliability and safety in DC power transmission. The tinned copper conductor and cross-linked polyolefin insulation and sheath provide excellent UV, ozone, and flame resistance, making it ideal for outdoor installations.

Advantages

This PV cable offers superior durability and performance in harsh environmental conditions. It is halogen-free, low smoke emission, and flame retardant, contributing to safety in case of fire. The cable is designed for a lifespan of 25 years, reducing maintenance and replacement costs. Its flexibility and resistance to extreme temperatures (-40°C to +90°C) ensure easy installation and long-term reliability.

Suitable for

• Solar photovoltaic systems (residential, commercial, utility-scale)
• DC power transmission in renewable energy installations
• Outdoor and indoor wiring of solar panels, inverters, and combiner boxes

Key specifications

• Cable Type: Photovoltaic (PV) Cable
• Standard: EN 50618 / H1Z2Z2-K
• Conductor: 1 core, tinned copper, 6 mm²
• Rated Voltage: 0.6/1 kV AC; max DC 1.8 kV
• Insulation/Sheath: Cross-linked polyolefin (XLPO)
• Color: Red
• Length: 50 m
• Operating Temperature: -40°C to +90°C
• Max Conductor Temperature: +120°C (20,000 h)
• UV, Ozone, and Flame Resistant
• Halogen-Free, Low Smoke

Recommendations

For optimal performance, ensure proper cable sizing and use appropriate connectors. Always follow local electrical codes and manufacturer guidelines. This cable is suitable for fixed installations and can be used in cable trays, conduits, or direct burial (if permitted).
