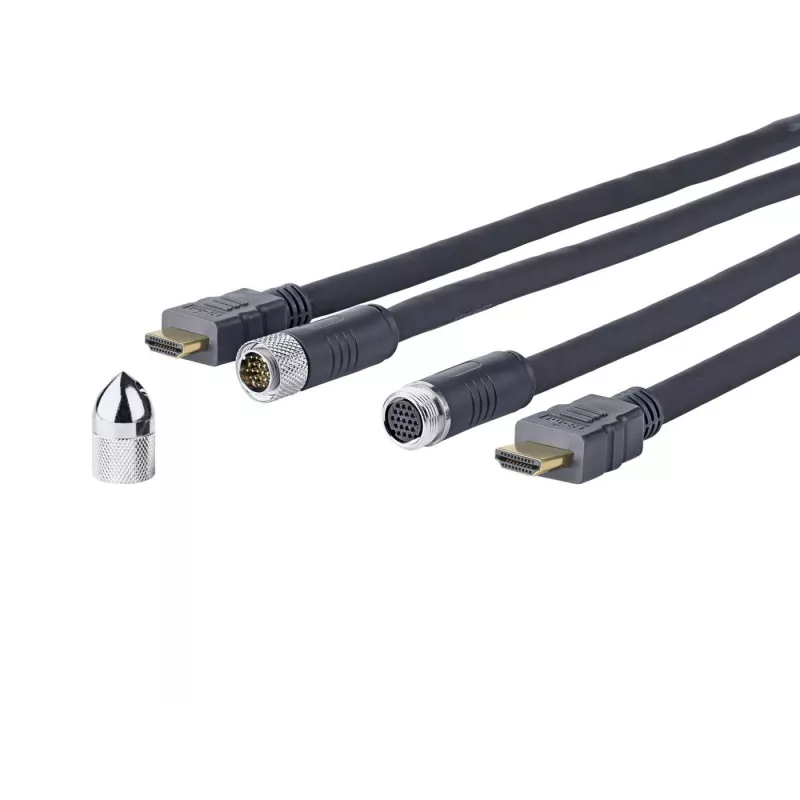

Cabo HDMI Cross Wall Vivolink PRO HDMI CROSS WALL 7,5 m

The Vivolink PRO HDMI Cross Wall Cable 7.5m is a 7.5‑metre HDMI Type A to Type A cable designed for in‑wall or cross‑wall installations. It supports HDMI 1.4 features including Full HD 1920 x 1080 resolution, 3D, Audio Return Channel (ARC), HDCP and CEC, and provides a data transfer rate up to 10.2 Gbit/s. The cable has a pure copper conductor, triple shielding with additional connector shielding and gold‑plated HDMI Type A contacts for reliable signal transmission.

Advantages

Triple shielding and extra shielding at the connector reduce electromagnetic interference and help maintain signal integrity over the 7.5 m length. Gold‑plated 15 µm minimum contacts improve contact reliability and reduce corrosion. The cable’s flexible design allows a small bending radius suitable for routing through walls, conduits or tight spaces while keeping stable Full HD and 3D performance.

Suitable for

• Connecting HDTVs, monitors or projectors to Blu‑ray players, set‑top boxes and media players
• In‑wall or cross‑wall installations where a 7.5 m run is required
• Setups requiring ARC for TV audio return to soundbars or AV receivers

Key specifications

• Length: 7.5 m
• Connectors: HDMI Type A (male) – HDMI Type A (male)
• HDMI version: 1.4 (supports 3D, ARC, CEC, HDCP)
• Maximum resolution: 1920 x 1080 (Full HD)
• Data rate: up to 10.2 Gbit/s
• Conductor: pure copper
• Shielding: triple shielded cable with extra shielding in connector
• Contacts: gold plated (min. 15 µm)
• Color: Black

How to use

Route the Vivolink PRO HDMI Cross Wall Cable through the wall or conduit to the required locations, taking care not to exceed its bending radius. Insert the HDMI Type A connector firmly into the HDMI ports of your source device and display. If using ARC, connect the HDMI cable to the TV’s ARC‑labelled HDMI port and enable ARC in the TV and audio device settings to pass audio back to a soundbar or AV receiver.

Recommendations

For reliable long‑term performance, avoid sharp bends and kinks when installing the cable. Do not expose the cable to excessive heat or moisture. Use cable grommets or wall plates where the cable passes through wall openings to protect the connector area (approx. connection diameter 15 mm).
