Cabo InLine comutador KVM, 2 portas, DisplayPort 1.2, 4K, USB, áudio

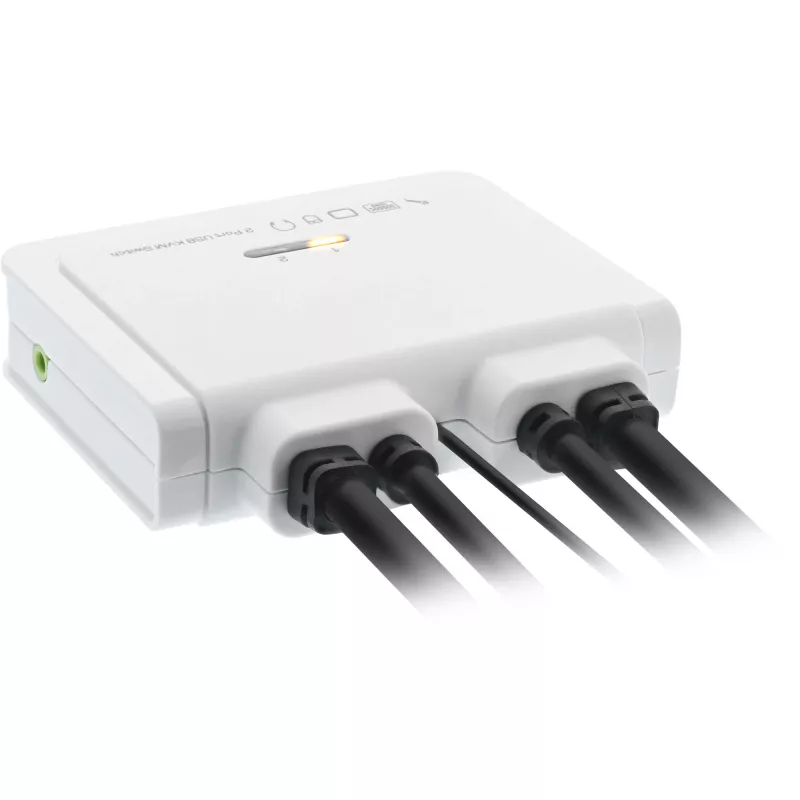

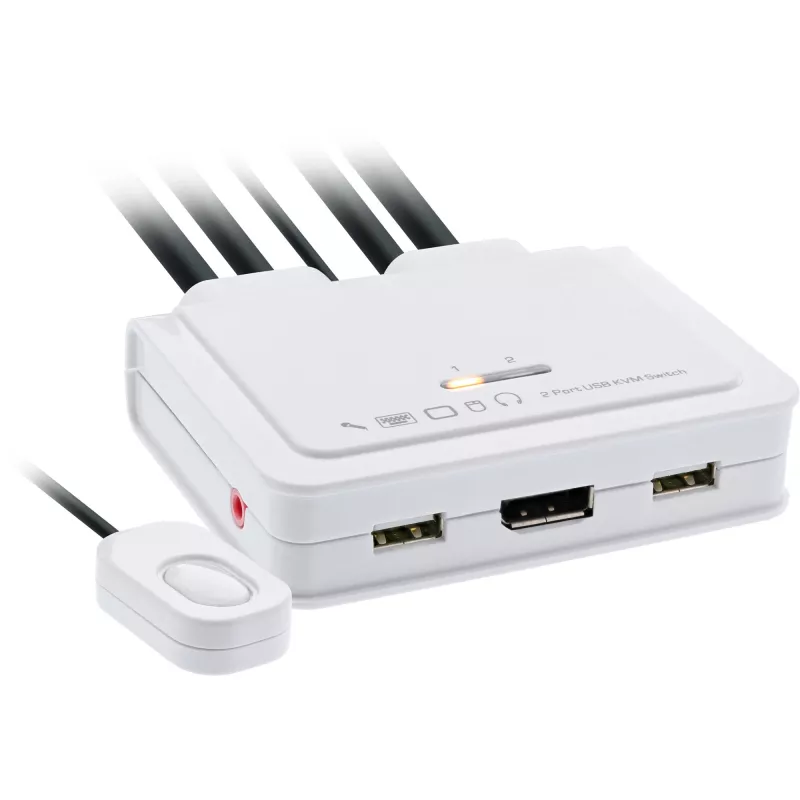

The InLine Cable KVM Switch is a 2-port DisplayPort 1.2 USB KVM switch that lets you control two computers using a single keyboard, mouse, monitor, speakers and microphone. It includes two sets of USB KVM and audio/mic combo cables and a wired QuickSwitch button for fast, direct switching. The switch supports DisplayPort 1.2 video up to 3840 x 2160 at 60 Hz and uses USB 2.0 for peripheral connectivity, enabling plug-and-play and hot-plug operation.

Advantages

This KVM switch consolidates control of two USB-enabled multimedia computers into one workstation without additional drivers. It provides hardware and software switching options: the included wired QuickSwitch button for one-touch toggling and a lightweight Windows/Mac client for KVM switching tasks such as computer selection, hotkey programming, autoscanning and independent or simultaneous audio/computer switching. Two USB 2.0 ports support keyboard and mouse connections and can also host other high-speed USB devices. The compact, one-piece cable design simplifies installation and saves desk space.

Suitable for

• Home offices where a single keyboard, mouse and monitor control two PCs or Macs
• Small office environments requiring quick switching between two workstations
• Multimedia setups needing shared speakers and microphone between two computers
• Environments using DisplayPort monitors up to 4K@60Hz

Key specifications

• Brand: InLine
• Model/MPN: 63613I
• EAN: 4043718279012
• Video port type: DisplayPort 1.2 (supports up to 3840 x 2160 @ 60 Hz)
• Keyboard / Mouse interface: USB (USB 2.0)
• Number of computers: 2

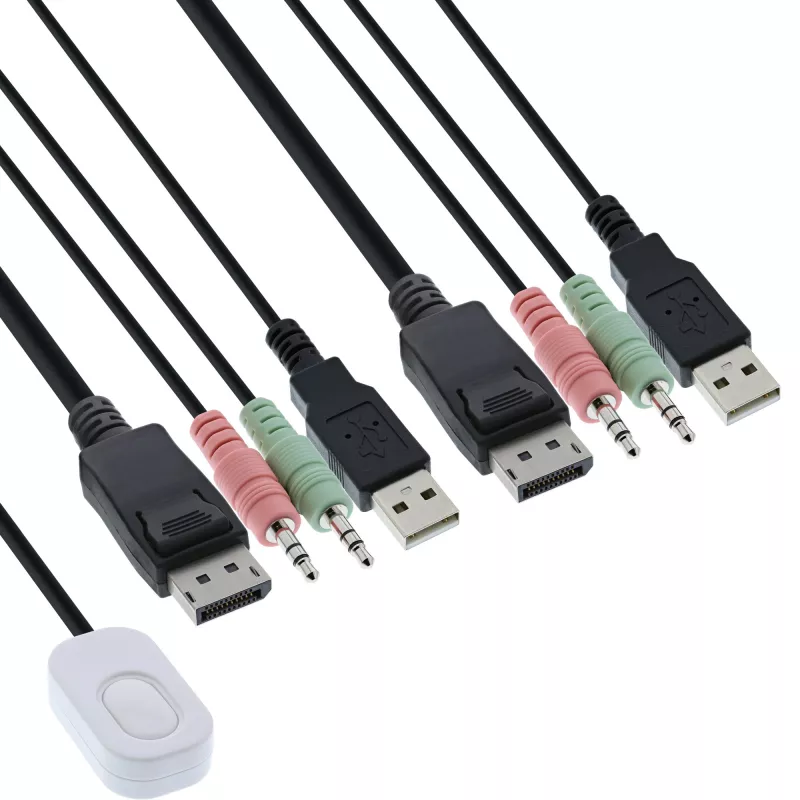

• Included cables: 2 sets of USB KVM + Audio/Mic combo cables; wired QuickSwitch cable (1.5 m)
• Cable length: KVM cable approx. 1.2 m (product data)
• Color: White

How to use

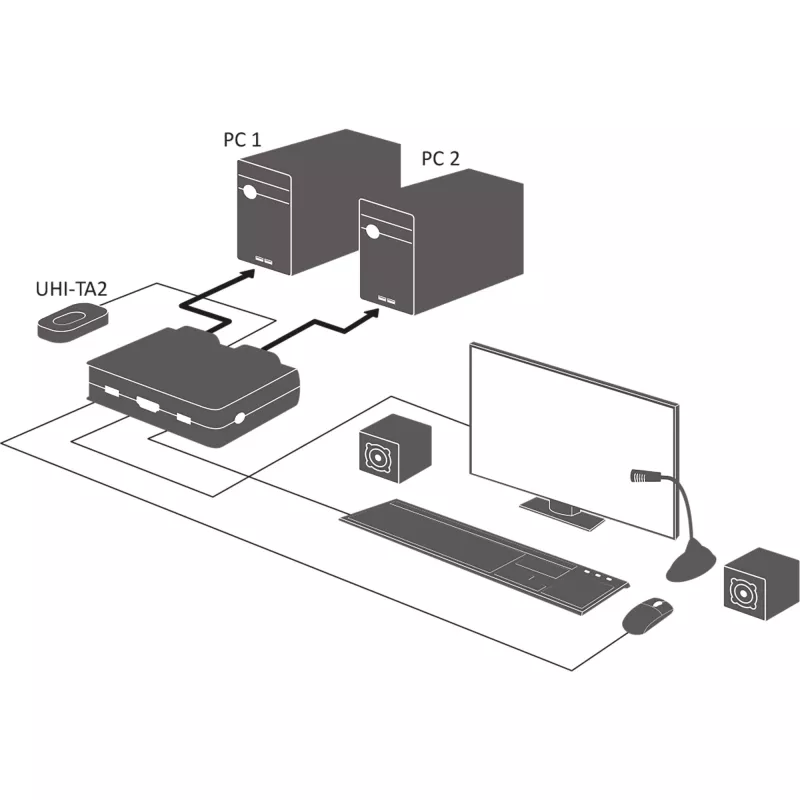

Connect the two sets of DisplayPort and USB KVM/audio cables from the switch to each computer’s DisplayPort, USB host and audio/microphone ports. Attach your monitor to the switch’s DisplayPort output and plug the keyboard, mouse and headset into the switch’s USB and audio ports. Use the wired QuickSwitch button to toggle control between computers, or install the small KVM Switching Software client on Windows or Mac for software switching, hotkey programming, autoscanning and additional switching options.

Recommendations

For optimal video performance at 3840 x 2160 @ 60 Hz, use DisplayPort 1.2–compliant cables and ensure connected graphics cards and monitors support 4K@60Hz. When using USB devices with higher bandwidth needs, verify compatibility with USB 2.0 limits.
