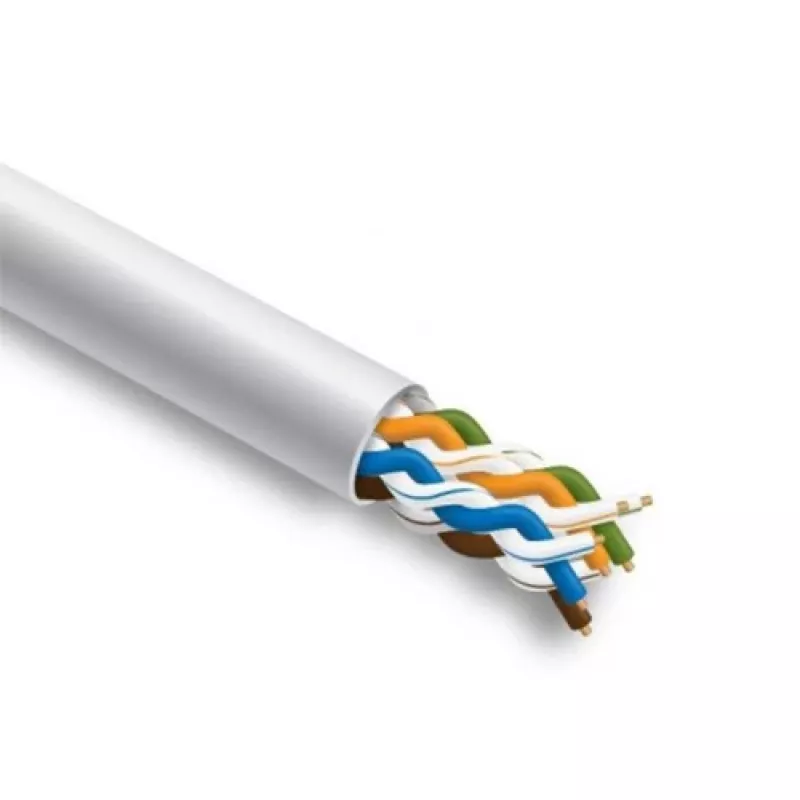

Cabo LAN STEINMARK DK-U6 CAT6 UTP 305 m

STEINMARK DK-U6 CAT6 UTP is an indoor LAN cable supplied on a 305 m reel and designed for structured cabling systems. It is a Category 6 unshielded twisted pair cable suitable for Ethernet networks up to 250 MHz, manufactured to EIA/TIA-568A and ISO/IEC 11801 guidelines and classified under CPR class Eca.

Advantages

The cable supports high-speed data transmission for typical LAN and Ethernet applications, is compliant with CE and RoHS markings, and comes with a clear factory marking (DK-U6 STEINMARK Netzwerk & Kommunikation kabel). Its construction includes a rip cord and PVC sheath for straightforward indoor installation and handling.

Suitable for

• Structured indoor network cabling in homes and offices
• Ethernet installations up to 250 MHz (Cat6)
• Patching between switches, routers and wall outlets
• Data cabling in server rooms and workspaces

Key specifications

• Model: DK-U6
• Type: UTP (unshielded twisted pair) CAT6
• Conductor: 0.50 mm CU (core) with PE insulation
• Configuration: 2 pairs × 4 twisted pairs (notation from source: (0.50CU+0.89PE)x2x4)
• Sheath: 5.5 mm PVC
• Length: 305 m (packaging length)
• Frequency: up to 250 MHz
• Standards: EIA/TIA-568A, ISO/IEC 11801
• CPR class: Eca
• Certifications/marks: CE, RoHS

How to use

Measure and cut the required length from the 305 m reel. Strip the outer PVC sheath carefully, use the rip cord to simplify sheath removal, separate and untwist pairs only as much as needed for termination, and terminate onto RJ45 connectors or patch panels following T568A wiring. Avoid sharp bends, kinks and excessive pulling force during installation to preserve cable performance.

Recommendations

For best performance, maintain bend radius greater than four times the cable diameter, avoid running the cable parallel to high-voltage power lines, and use appropriate cable management and testing after installation to verify connectivity and performance up to Cat6 specifications.
