Cabo ótico ativo HDMI ACT 90 m, Premium High Speed 4K v2.0, ficha HDMI-A macho para ficha HDMI-A macho, 18 Gbit/s, LSZH, preto

The ACT AOC 4K HDMI v2.0 cable has been engineered with great care for use in the most sensitive environments where exceptional performance and reliability are must-haves. Made of copper and fiber, this AOC cable enables seamless connection over distances up to 100 meters without data loss. The Active Optical Cable is suited for the most sensitive applications thanks to its complete shielding, low RFI/EMI, and LSZH cable jacket. With a bandwidth of 18Gbps 4:4:4, it effortlessly handles 4K resolutions (3840x2160) at 60Hz. This premium cable also supports CEC, HDR, HDCP 2.2, EDID, HEC, ARC, multi-channel audio, Dolby True HD, and DTS-HD Master Audio - features that guarantee optimal performance in professional settings.

AOC: copper and fiber for distances up to 100m and the best video and audio quality
The AOC (Active Optical Cable) cable is carefully assembled and made of copper and fiber for transferring 4K @ 60Hz over long distances up to 100m without data loss. The cable has a bandwidth of 18Gbps 4:4:4 for high resolution video content.

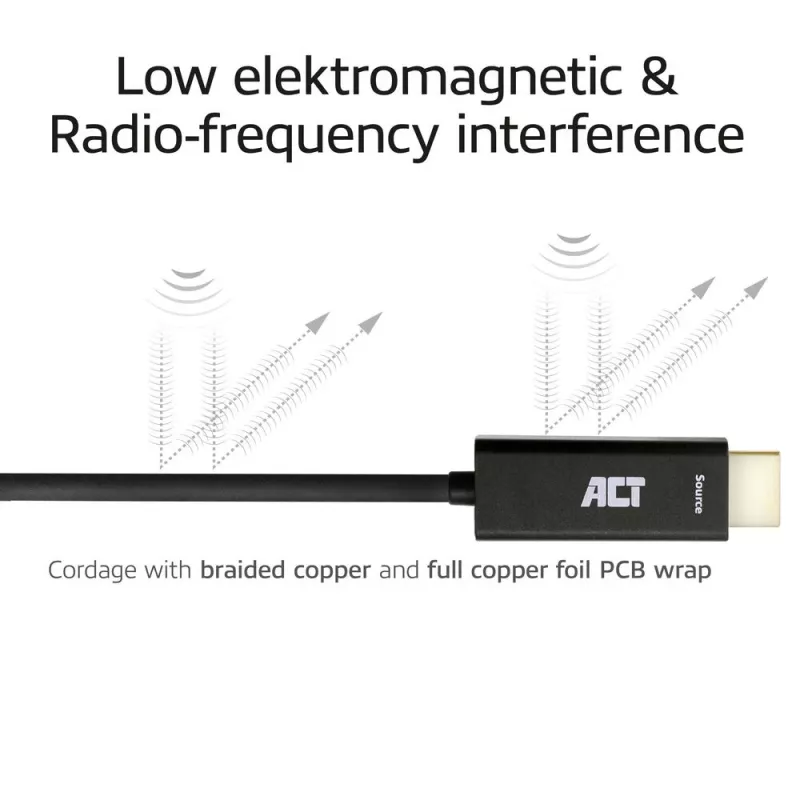

Fully shielded: suitable for sensitive applications
The Active Optical Cable has a Kevlar protected fiber and aluminium foiled shielding. Additionally, the chipset in the connector is encased in copper shielding. This means that the cable is fully shielded, from the source connector to the display connector and is suitable for sensitive applications due to low RFI/EMI. Furthermore, the cable functions without additional power.

Resolution of 4K @ 60Hz
This 4K HDMI cable supports a resolution of 3840x2160 @ 60Hz. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, CEC, HDCP 2.2, EDID, HEC, ARC, Multi-channel audio, Dolby True HD, and DTS-HD Master Audio.

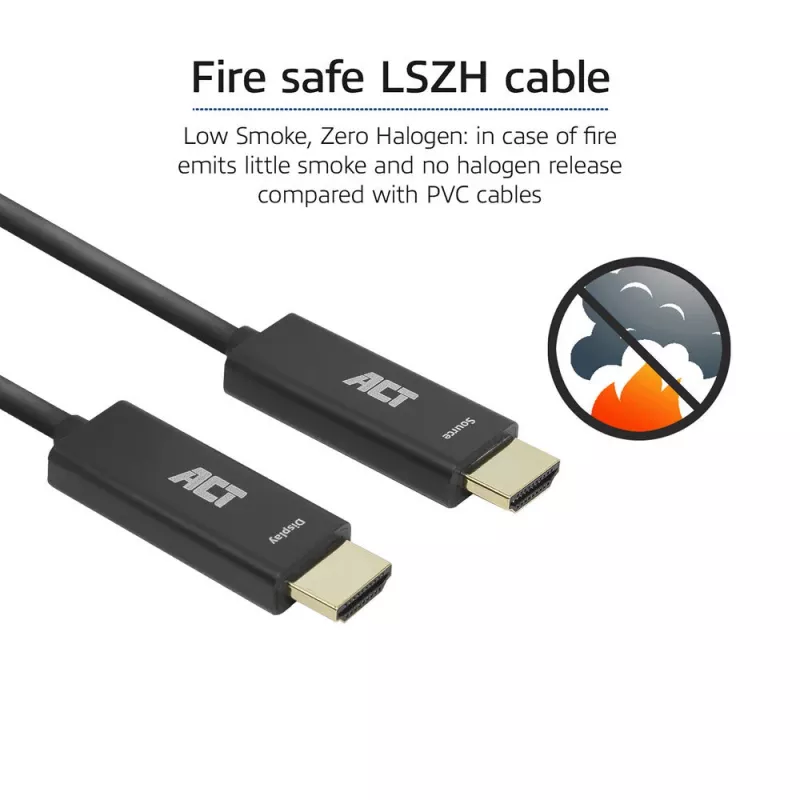

LSZH: reduces the risk of high concentrations of toxic gases
The cable has a LSZH (Low Smoke Zero Halogen) cable jacket that reduces the risk of high concentrations of toxic gases in case the cable is exposed to open flames or in the event of a fire.

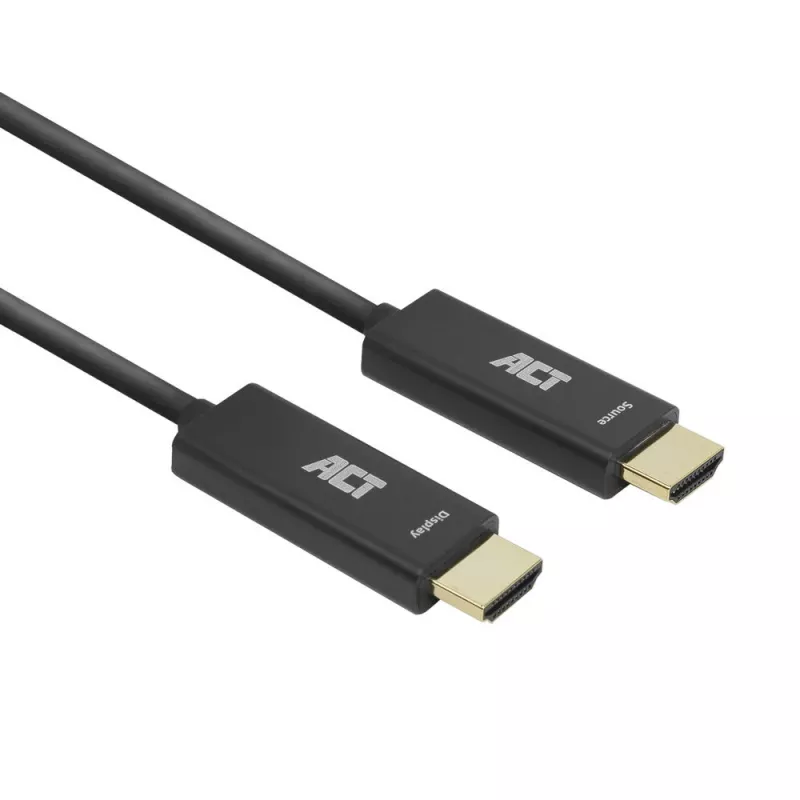

Cable marking for easy identification
It is important that the cable is connected correctly. That is why we marked the connectors of the ACT AOC HDMI v2.0 cable to ensure easy identification of the source and display connector.

User scenarios
Medical applications: High-resolution imaging is critical in radiology for detailed diagnosis. The low RFI/EMI minimizes interference with sensitive medical devices.
Nautical applications: The cable facilitates the connection between equipment located in different parts of the vessel without signal loss. The Kevlar protected fiber offers durability and reliability in harsh marine environments.
Data center applications: The LSZH jacket ensures safety by reducing toxic gas emissions in case of a fire.
Educational and corporate applications: Provides clear and detailed visuals for large audiences and supports high-definition displays for video conferencing, presentations, and collaborative work.

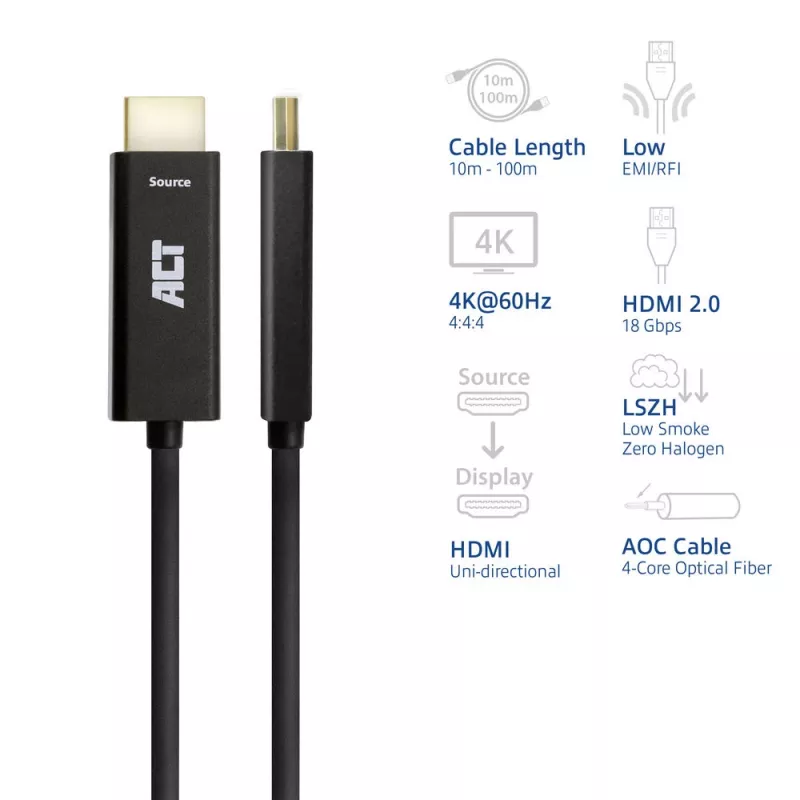

ACT 90 meters HDMI Premium High Speed 4K Active Optical Cable v2.0 LSZH HDMI-A male - HDMI-A male. Cable length: 90 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, HDMI version: 2.0, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product colour: Black

How to use

Connect the HDMI Type A male connector marked as the source to your video source (PC, media player, switcher) and the connector marked as the display to the target display or projector. Ensure both devices support HDMI 2.0 features for full 4K@60Hz and HDR functionality. Route the cable carefully to avoid sharp bends; the Kevlar protection increases durability but maintaining gentle curves helps preserve optical performance.

Recommendations

For best results, use this ACT 90 m Active Optical Cable in fixed AV installations where long runs and low interference are required; avoid repeated flexing and keep connectors dry and clean. Check device settings for HDMI 2.0 and HDR to ensure optimal video and audio performance.
