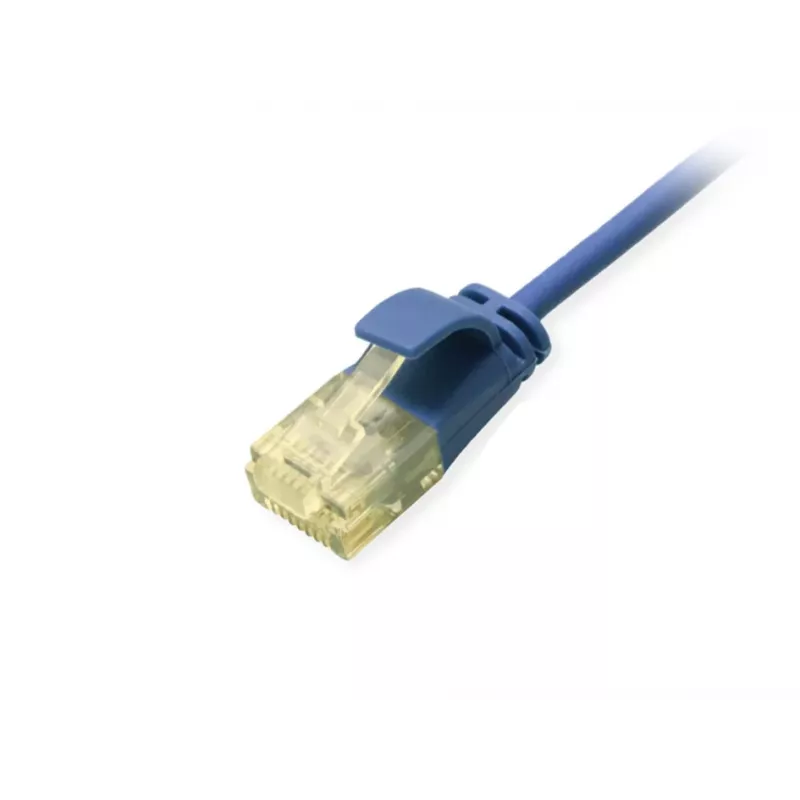

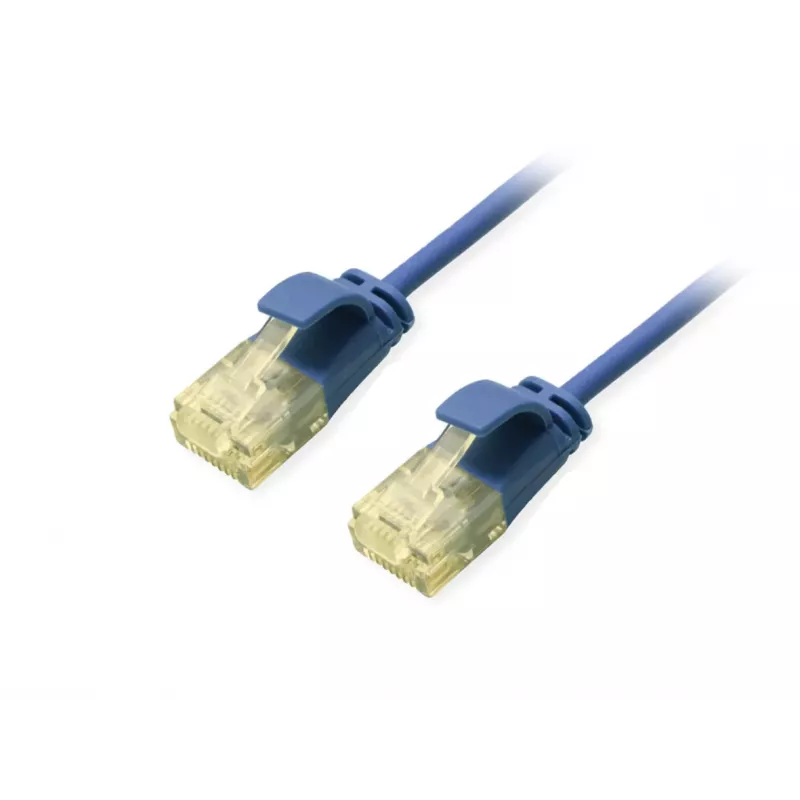

Cabo patch slim Equip Cat.6A U/UTP, 1,5 m, azul

The Equip Cat.6A U/UTP Slim Patch Cable 1.5m Blue is a slim, high-performance network patch cable designed for data centers, enterprise networks and high-density installations. With a 1.5 m length and reduced diameter (32 AWG), the cable improves cable management and airflow in crowded racks and patch panels while supporting 10 Gigabit Ethernet and frequencies up to 500 MHz. The unshielded twisted pair (U/UTP) design and stranded bare copper conductors provide flexibility for frequent reconfigurations and reliable data transmission in environments with low to moderate electromagnetic interference.

Advantages

The slim 32 AWG construction reduces space and clutter without sacrificing performance, and the cable supports up to 10 Gbit/s data rates and 500 MHz bandwidth. Stranded bare copper conductors and a molded boot with strain relief increase flexibility and durability for patching and moves. The cable is RoHS compliant, LSOH/LSZH rated, and meets ISO/IEC 11801 and EN 50173 standards, making it suitable for professional networking environments. Compatible with PoE and PoE+ applications, it offers plug-and-play connectivity using RJ-45 straight male connectors on both ends.

Suitable for

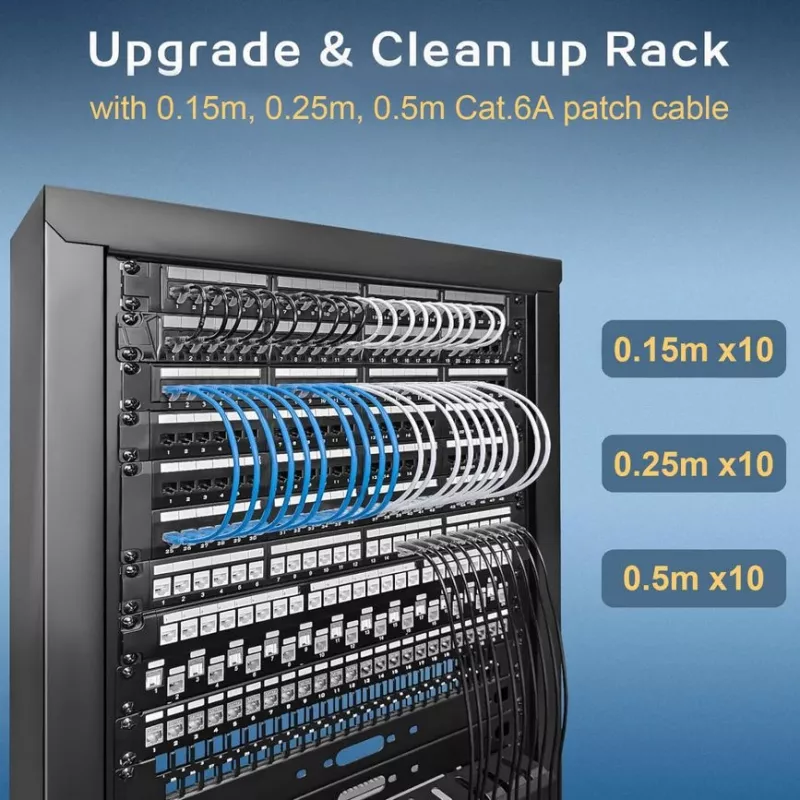

• High-density rack and patch panel installations
• 10 Gigabit Ethernet connections (10GBase-T)
• Office and data center horizontal patching
• Power over Ethernet (PoE, PoE+) devices
• Tight or space-constrained cable routes

Key specifications

• Length: 1.5 m
• Cable type: Cat.6A U/UTP (unshielded twisted pair)
• Conductor: stranded bare copper, 32 AWG
• Bandwidth: up to 500 MHz
• Transmission speed: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male — both ends
• PoE support: PoE, PoE+
• Standards: ISO/IEC 11801, EN 50173
• Material/ratings: LSOH/LSZH, RoHS compliant
• Colour: Blue

How to use

Connect one RJ-45 connector to a network switch, router or patch panel and the other RJ-45 connector to the target device such as a server, workstation or access point. Ensure connectors are fully inserted and latched. Use the slim cable for horizontal patching or in high-density racks to save space; avoid sharp bends and excessive pulling to preserve cable performance and connector integrity.

Recommendations

For best performance, route the cable away from strong electromagnetic sources and avoid tight bundles with power cables. Use the slim Cat.6A U/UTP patch cable in installations where space and airflow are priorities; verify PoE power requirements of connected devices to ensure compatibility.
