Cabo SAS DeLOCK 83391 1 m multicolor

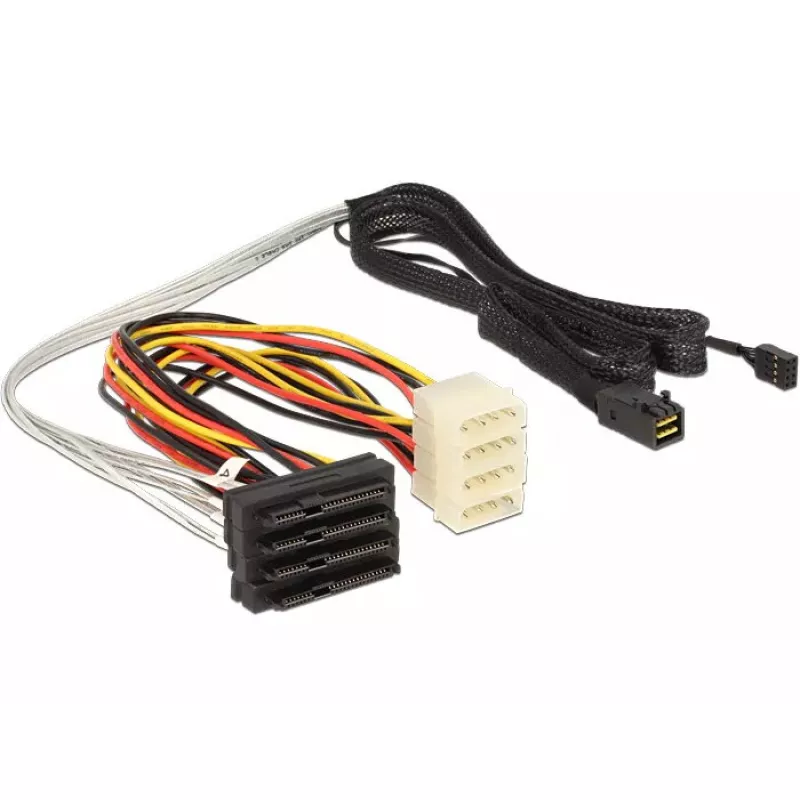

The DeLOCK 83391 is a 1 m Serial Attached SCSI (SAS) cable that connects a Mini SAS HD x4 SFF-8643 controller to up to four SAS 29-pin SFF-8482 drives. The multicolour cable is intended for internal PC and server use where compact multi-lane connections and high-speed data transfer are required.

Advantages

This cable provides a single Mini SAS HD x4 (SFF-8643) to four SAS 29-pin (SFF-8482) connections, simplifying cabling for storage arrays and server bays. Its 1 m length offers flexibility for rack and chassis layouts, while the SAS interface ensures reliable, high-speed connections compatible with SAS drives and controllers.

Suitable for

• Connecting a Mini SAS HD x4 controller to multiple SAS SFF-8482 hard drives or SSDs
• Internal server and storage chassis cabling
• RAID arrays and data center storage expansion

Key specifications

• Cable length: 1 m
• Connector 1: 1 x Mini SAS HD x4 (SFF-8643)
• Connector 2: 4 x SAS 29-pin (SFF-8482)
• Product colour: Multicolour

How to use

Power off the system before installation. Insert the Mini SAS HD x4 (SFF-8643) connector into the corresponding controller port, then connect each SAS 29-pin (SFF-8482) connector to the drive backplanes or individual drives. Route the cable to avoid sharp bends and secure it inside the chassis to prevent strain on the connectors. Power on the system and verify drive detection in the controller BIOS or operating system.

Recommendations

Use this cable for internal connections only. Ensure compatibility of your controller and drives with SFF-8643 and SFF-8482 interfaces. Avoid excessive bending and EMI sources; keep cable length appropriate for airflow and cable management within server racks.
