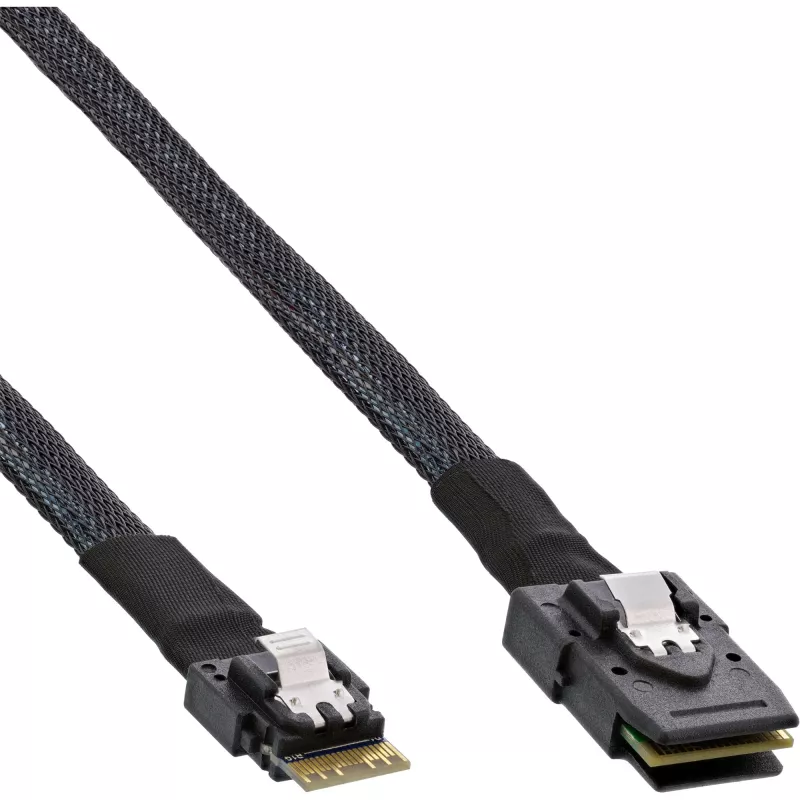

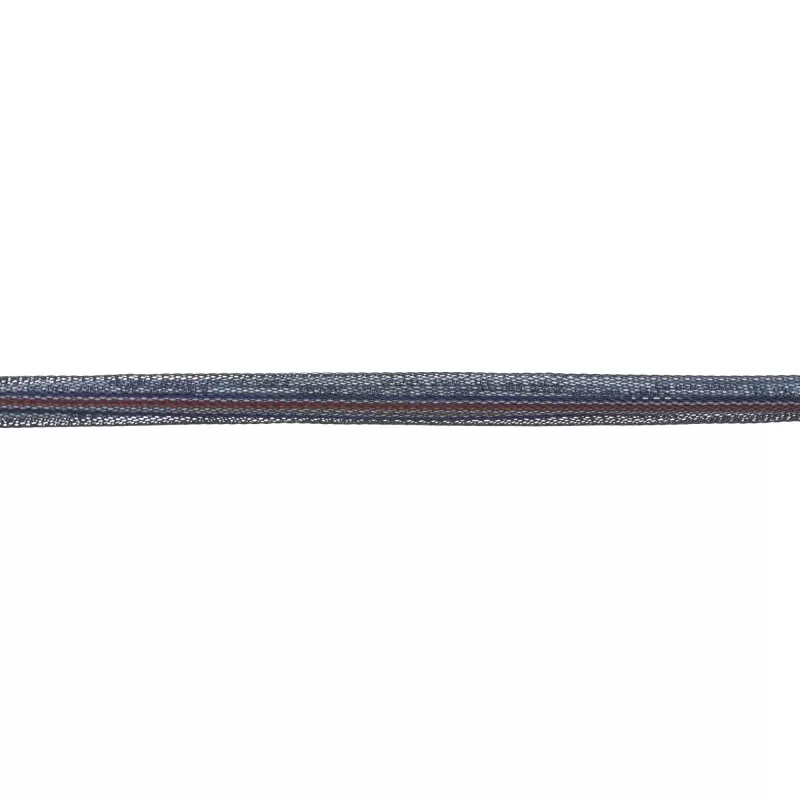

Cabo SAS slim InLine 27645B SFF-8654 para Mini SAS SFF-8087 12Gb/s 1m

High data transfer rate:Supports up to 12Gb/s per channel, meeting the requirements of modern SAS 4.0 environments.
Reliable connection:Securely connects SAS devices such as hard drives to HBA or RAID controllers.
Space-saving design:Slim SAS design enables space-saving cable routing in compact server enclosures.
Secure plug connection:With locking clip for a secure hold and interference-free data transfer.
High compatibility:Compliant with SAS 4.0 SFF-8654 specification, with Mini SAS SFF-8087 connector on the opposite end.

The InLine® Slim SAS cable is the professional solution for connecting internal SAS components in server and storage systems. Equipped with a Slim SAS 4i connector (SFF-8654) on one end and a Mini SAS connector (SFF-8087) on the other, it is ideal for connecting SAS hard drives to HBA cards, RAID controllers, or JBOD systems. Support for transfer rates of up to 12Gb/s per channel meets the highest performance requirements and ensures reliable data communication in demanding IT infrastructures. The robust design with integrated locking clip ensures a secure connection – even during continuous use in data centers or industrial environments. The compact Slim SAS design allows the cable to be laid easily even in confined spaces. This makes it an efficient and durable solution for professional SAS use.

Connector type:Slim SAS 4i (SFF-8654) to Mini SAS (SFF-8087)
Transfer rate:Up to 12 Gb/s per channel
With locking clip:For a secure connection
Specification:Compliant with SAS 4.0 SFF-8654
Use:Internal connection cable, e.g., for servers, JBOD, DAS

InLine Slim SAS cable, SFF-8654 to Mini SAS SFF-8087, 12Gb/s, 1m. Cable length: 1 m, Connector 1: SFF-8654 male, Connector 2: Mini SAS SFF-8087. Dimensions (WxDxH): 20 x 1000 x 16 mm. Package width: 160 mm, Package depth: 180 mm, Package height: 20 mm

How to use

Power down the host system and storage devices before installation. Locate the controller port (SFF-8654) on the HBA or RAID card and the Mini SAS SFF-8087 port on the drive backplane or device. Align the connectors and insert gently until seated; ensure secure but non-forceful engagement. Route the cable to avoid sharp bends and contact with hot components, then power on the system and verify the controller recognises connected drives.

Recommendations

For reliable operation, use the cable inside the server or storage enclosure only, avoid excessive bending radii, and keep connections dust-free. Match the cable speed and connector types to controller and device specifications to ensure full 12 Gb/s performance.
