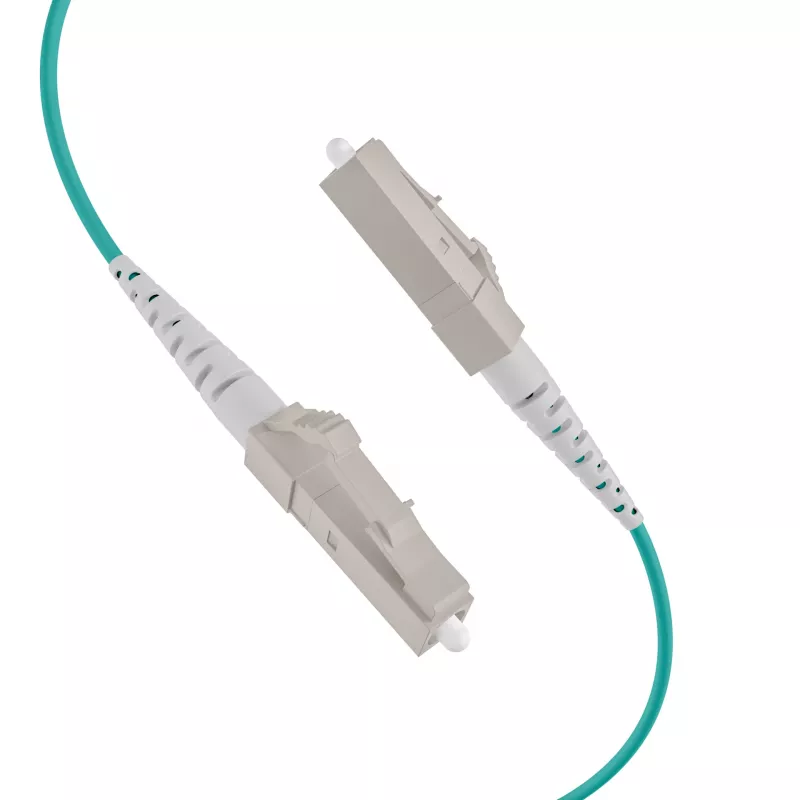

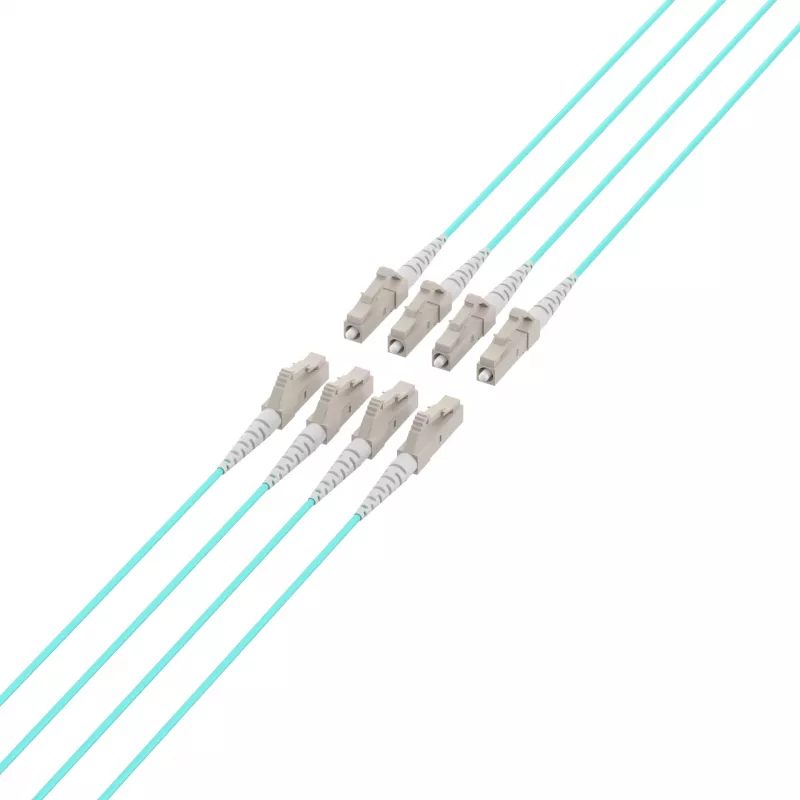

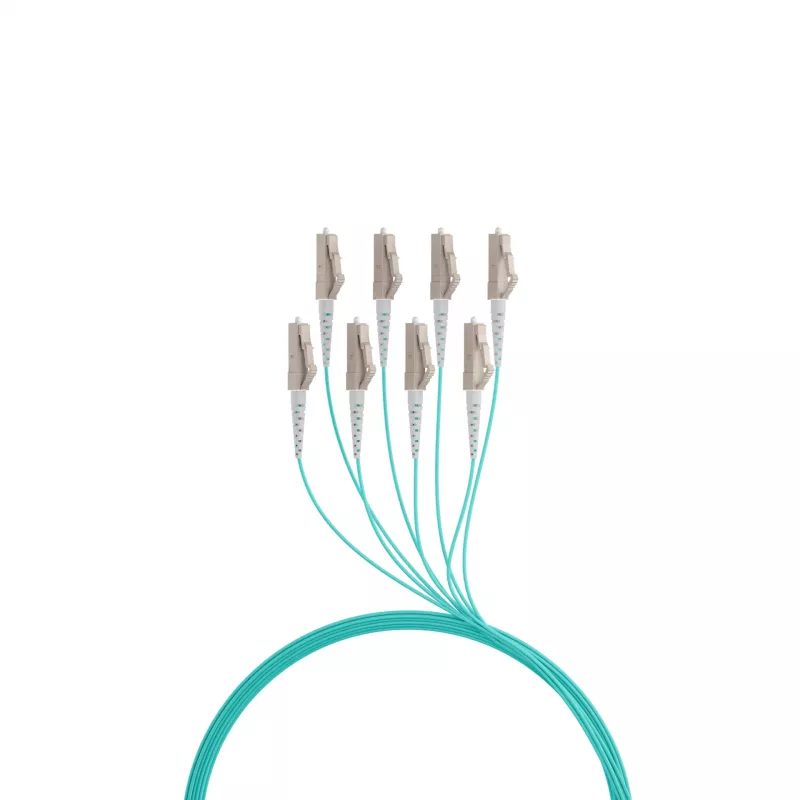

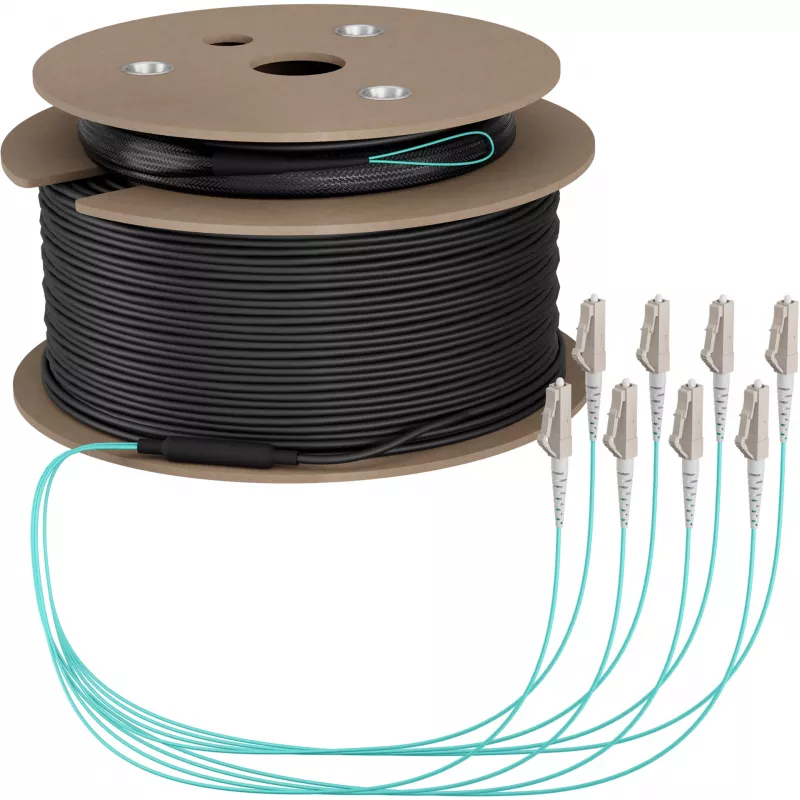

Cabo troncal EFB Elektronik U-DQ ZN BH OM3 8G 1x8 LC-LC 130m Dca LSZH - 130 m O8322S130OM3

This EFB Elektronik trunk cable stands out with its 8-fiber OM3 multimode design, terminated with LC connectors on both ends and pre-assembled at a 130-meter length, making it ready for high-density backbone installations without field termination. The loose-tube construction with non-metallic strain relief and LSZH jacket ensures durability and safety in indoor and outdoor environments, while the Dca fire rating meets strict European CPR requirements.

Highlights

• 8 OM3 multimode fibers (50/125 µm) support 10 Gbps up to 300 meters and 40/100 Gbps up to 100 meters
• LC duplex connectors on both ends for easy patching and high port density
• 130-meter pre-terminated length eliminates splicing and reduces installation time
• LSZH (Low Smoke Zero Halogen) jacket emits low smoke and no toxic halogens in fire
• CPR fire rating Dca for compliance with EU building regulations
• Loose tube, non-metallic strain relief (U-DQ ZN BH) provides mechanical protection and rodent resistance

In daily use

Designed for backbone and horizontal cabling in data centers, enterprise networks, and campus environments, this trunk cable simplifies deployment of high-speed links. The aqua-colored jacket identifies it as OM3, while the LSZH material ensures safety in occupied spaces. With a maximum insertion loss of 0.3 dB per connector and return loss of at least 30 dB, it delivers reliable performance for demanding applications. The cable operates in temperatures from -20°C to 70°C and meets IEC 60794, TIA/EIA-568-C.3, and ISO/IEC 11801 standards.

Full specifications

• Fiber type: Multimode OM3
• Number of fibers: 8
• Connector type: LC (both ends)
• Cable length: 130 m
• Jacket material: LSZH
• Fire rating: Dca
• Insertion loss: ≤ 0.3 dB per connector
• Return loss: ≥ 30 dB
• Operating temperature: -20°C to 70°C
• Standards: IEC 60794, TIA/EIA-568-C.3, ISO/IEC 11801

Final note

Pre-terminated and tested, this trunk cable offers a plug-and-play solution for high-performance fiber optic links, reducing installation complexity and ensuring consistent quality.
