Cabo Trunk de Fibra Ótica BlueOptics Compatível Juniper MTP12-FF-S3M MTP/APC para MTP/APC OS2 Monomodo, 12 fibras, 3 m, Amarelo

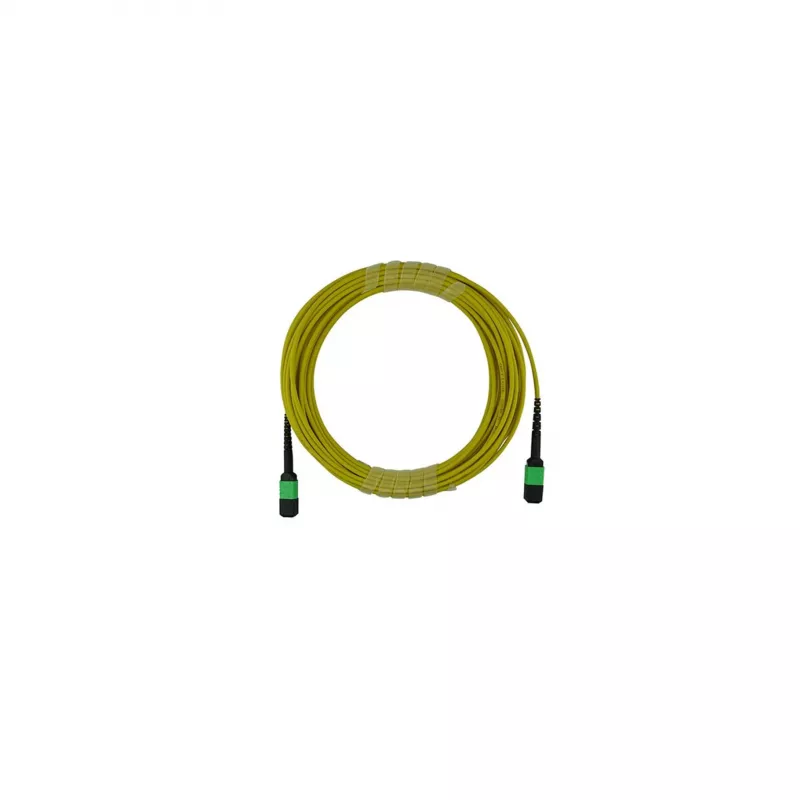

The BlueOptics MTP12-FF-S3M is a high-performance fibre optic trunk cable designed for compatibility with Juniper Networks equipment. This cable features MTP/APC female connectors on both ends, supporting 12 fibres in a single-mode OS2 configuration. With a length of 3 metres and a yellow LSZH jacket, it is ideal for high-density data centre cabling and telecommunications applications. The cable meets strict insertion loss (≤0.35 dB) and return loss (≥60 dB) specifications, ensuring reliable signal transmission.

Advantages

This trunk cable offers low insertion loss and high return loss, minimising signal degradation. The MTP/APC connectors provide excellent performance for single-mode applications. The LSZH jacket enhances safety in enclosed spaces. Compatibility with Juniper equipment ensures seamless integration.

Suitable for

• High-density data centre cabling
• Telecommunications networks
• Juniper network infrastructure
• Single-mode fibre optic trunking

Key specifications

• Fibre Type: Single-Mode (OS2)
• Fibre Count: 12
• Connector A: MTP/APC Female
• Connector B: MTP/APC Female
• Cable Length: 3 metres
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Insertion Loss (Max): 0.35 dB
• Return Loss (Min): 60 dB
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS

Recommendations

For optimal performance, ensure proper handling and storage within specified temperature ranges. Use with compatible Juniper transceivers and patch panels.
