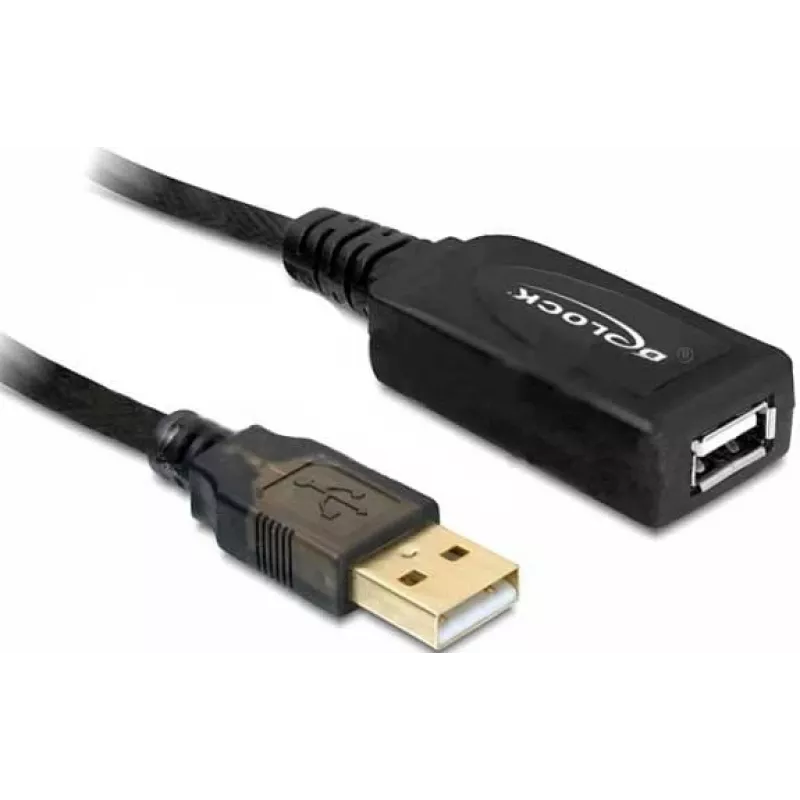

Cabo USB DeLOCK 20m 82690

This Delock USB extension cable connects to an active USB port and extends the connection by 20 m. Connecting a second 20 m extension cable allows a total extension up to 40 m. The cable uses a higher gauge for both power and data lines to provide a stable connection for connected USB devices.

Advantages

The gold-plated USB-A connectors reduce corrosion and improve contact reliability. Separate AWG 26 data and AWG 22 power conductors help maintain signal integrity and provide sufficient power up to 500 mA. The cable is compatible with standard USB 2.0 ports and includes the FE 1.1 chipset for signal handling.

Key specifications

• Connection: USB 2.0-A male to USB 2.0-A female
• Chipset: FE 1.1
• Data line: AWG 26
• Power line: AWG 22
• Extension length: 20 m (single) or up to 40 m with two cables
• Max. power: 500 mA
• Connector plating: gold

How to use

Plug the male USB-A connector into an active USB port on your computer or hub. Route the cable to the desired location and connect the device to the female USB-A end. To extend beyond 20 m, connect a second identical 20 m Delock extension cable to the female end; do not chain more than two cables. Ensure the host port can supply up to 500 mA to the connected device.

Recommendations

Use the cable for USB 2.0 peripherals that do not exceed 500 mA current draw. Avoid using more than two 20 m extensions in series and keep cable routing away from strong electromagnetic sources to preserve signal quality.
