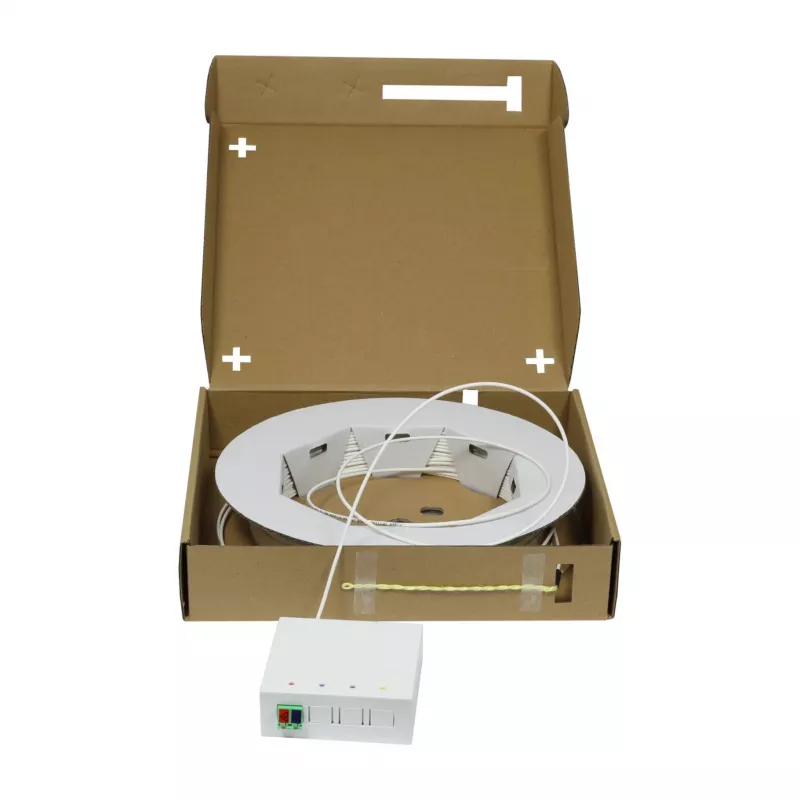

Caixa compacta FTTH SYNERGY21 pré-montada, 2xLC/APC -> extremidade aberta, 40m, 9/125µm, G.657.A2, 2 fibras, DA 2,2mm

The SYNERGY21 FTTH Compact Box is a pre-assembled fiber optic drop cable assembly designed for Fiber to the Home (FTTH) installations. It features a compact, ready-to-use design with two LC/APC connectors on one end and an open end on the other, making it ideal for quick and reliable connections in access networks.

Advantages

Pre-terminated for fast installation, reducing on-site splicing time and cost. Bend-insensitive G.657.A2 fiber ensures robust performance even in tight bends. Compact 2.2mm outer diameter saves space and facilitates easy routing.

Suitable for

• FTTH last-mile connections
• Fiber optic distribution points
• Indoor and outdoor drop cable applications

Key specifications

• Connector End A: 2x LC/APC
• Connector End B: Open End (stripped and cleaved)
• Fiber Count: 2 (Duplex)
• Fiber Mode: Single-mode
• Core/Cladding: 9/125 µm
• Fiber Standard: ITU-T G.657.A2
• Cable Length: 40 m
• Cable Outer Diameter: 2.2 mm
• Insertion Loss (LC/APC): < 0.3 dB
• Return Loss (LC/APC): > 60 dB

Recommendations

For optimal performance, ensure clean connections and avoid excessive bending beyond the minimum bend radius of the G.657.A2 fiber. This assembly is compatible with standard FTTH enclosures and patch panels.
