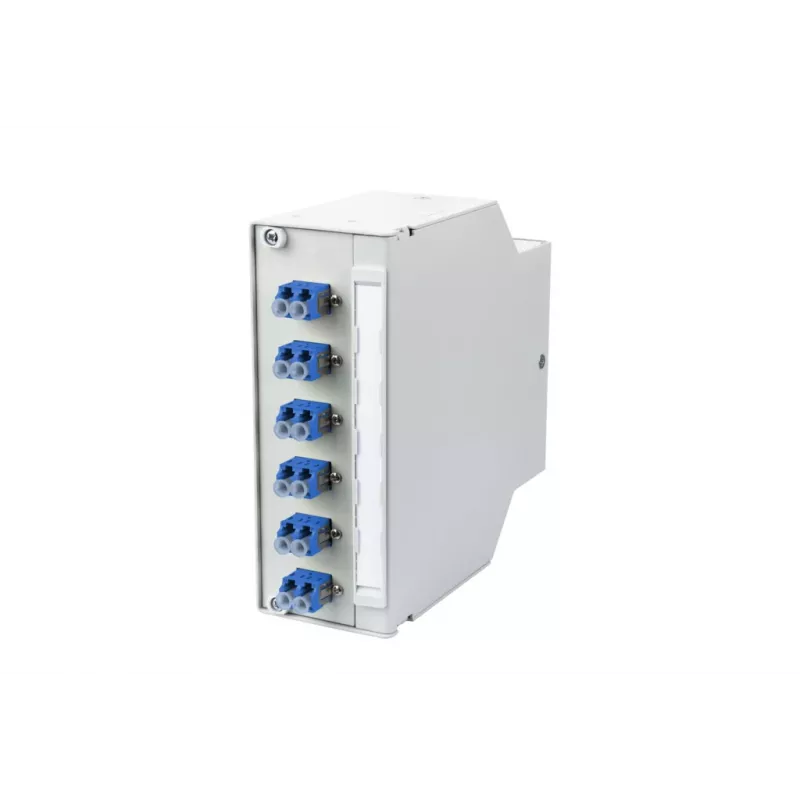

Caixa de distribuição de fibra ótica Metz 15024A07406-E OpDAT REGpro VIK 6xLC-D OS2, branco puro RAL 9010

Fiber optic distribution box with six LC duplex adapters, pre-assembled for single-mode OS2 networks. Its powder-coated steel housing in pure white (RAL 9010) ensures durability and a clean look for DIN rail installations in industrial and building automation environments.

Advantages

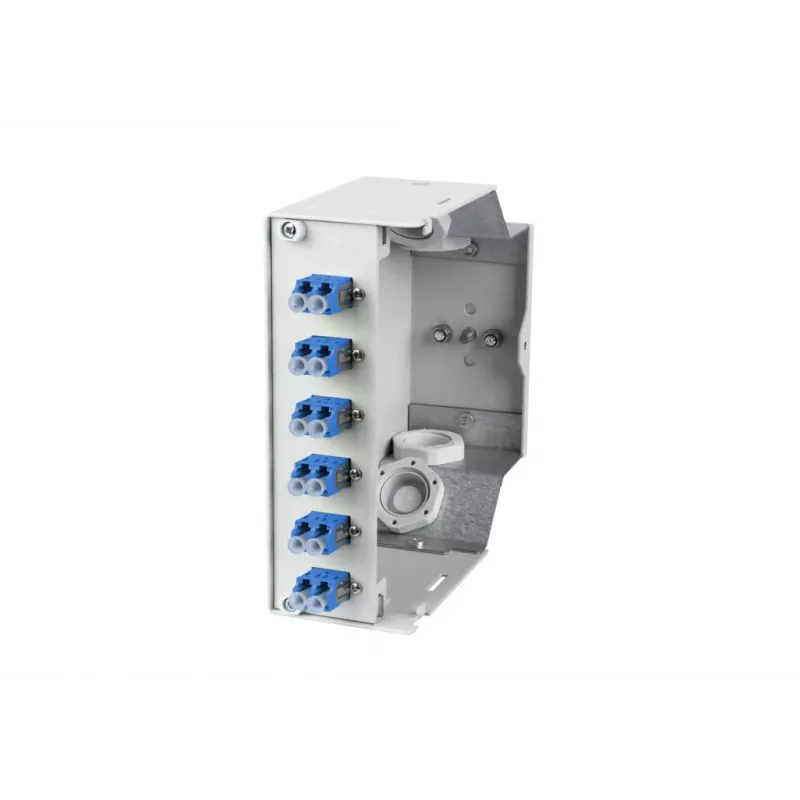

The OpDAT REGpro VIK offers a compact, IP20-rated solution for structured fiber management. Pre-installed LC-D adapters with blue color coding simplify identification of OS2 single-mode connections. The integrated splice tray accommodates up to 12 crimp or heat shrink splice protectors, enabling efficient fiber organization. Two M20/M25 cable entry points provide flexible routing options, while the DIN rail mounting (EN 60715) allows quick installation in standard distribution boards.

Suitable for

• Industrial data networks requiring reliable fiber optic distribution
• Building automation systems with DIN rail infrastructure
• Telecommunications cabinets and enclosures
• FTTH and enterprise backbone connections

Key specifications

• Connector type: 6x LC Duplex (LC-D), blue adapters
• Fiber mode: Single-mode OS2, supports up to 12 fibers
• Housing: Powder-coated steel, pure white RAL 9010
• Mounting: DIN rail (EN 60715), IP20 protection
• Splice tray capacity: 12 crimp or heat shrink protectors
• Cable entry: 2x M20/M25 for cable glands
• Operating temperature: -20 °C to +70 °C
• Insertion loss ≤ 0.2 dB, return loss ≥ 50 dB
• Compliance: RoHS, REACH, IEC 61754-20, IEC 61753-1

Recommendations

Ideal for integrators and network engineers seeking a pre-assembled, high-performance fiber distribution point that saves installation time and ensures consistent optical performance in demanding environments.
