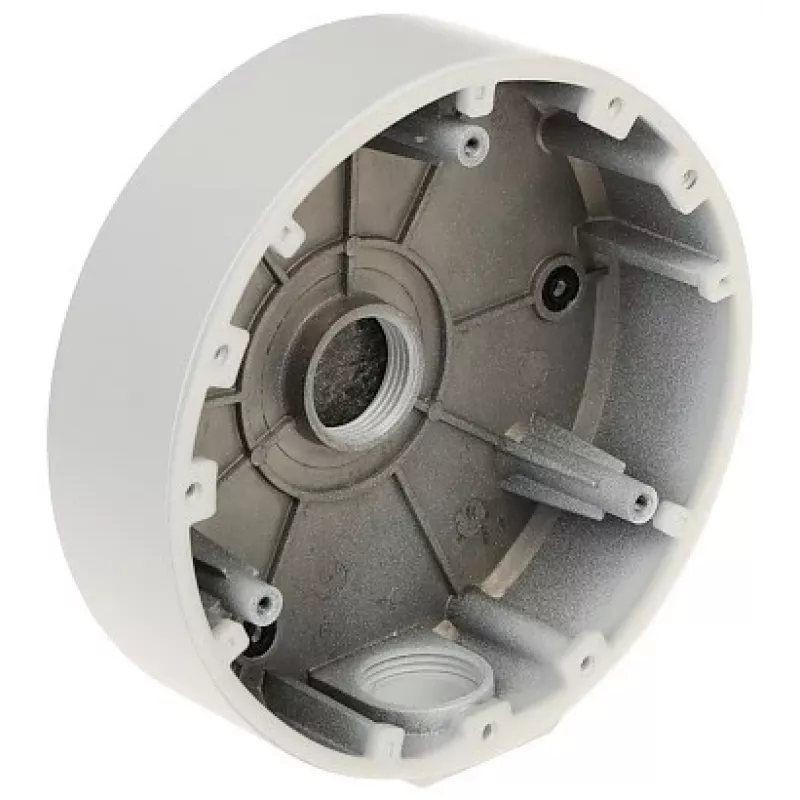

Caixa de ligação UNIVIEW TR-JB04-C-IN para câmaras dome, alumínio branco, interior/exterior

For installers who demand a clean, secure mount without drilling into the camera itself, the UNIVIEW TR-JB04-C-IN junction box delivers a purpose-built housing that streamlines cable management and protects connections. Unlike generic electrical boxes, this die-cast aluminium unit matches the footprint of Uniview dome cameras, ensuring a flush, professional finish on walls or ceilings.

Highlights

• Compatible with Uniview dome and bullet cameras, including IPC32x and IPC2xx series
• Die-cast aluminium alloy with powder-coated white finish for durability and corrosion resistance
• Multiple cable entry points (side and bottom) for flexible routing and concealed wiring
• Rated for indoor and outdoor use, with an operating temperature range of -40°C to 60°C
• Supports up to 1 kg load capacity, suitable for standard surveillance cameras

In daily use

Mount the junction box first, route the network and power cables through the integrated openings, then attach the camera directly to the box. The result is a tidy installation with no exposed cabling, reducing tampering risks and simplifying maintenance. The powder-coated surface resists scratches and weathering, keeping the mount looking new even in harsh conditions.

Full specifications

• Product type: Junction box
• Material: Aluminium alloy (die-cast)
• Colour: White
• Finish: Powder coated
• Mounting type: Wall mount, ceiling mount
• Compatibility: Uniview dome and bullet cameras (e.g., IPC32x, IPC2xx series)
• Cable management: Integrated cable routing
• Cable entry points: Multiple (side and bottom)
• Operating temperature: -40°C to 60°C (-40°F to 140°F)
• Operating humidity: 0% to 90% RH (non-condensing)
• Max load capacity: 1 kg
• Weather resistance: Yes
• Diameter: 126 mm
• Height: 50 mm

Final note

The TR-JB04-C-IN is the essential companion for a professional Uniview camera installation, offering robust protection and a clean aesthetic without compromising on accessibility.
